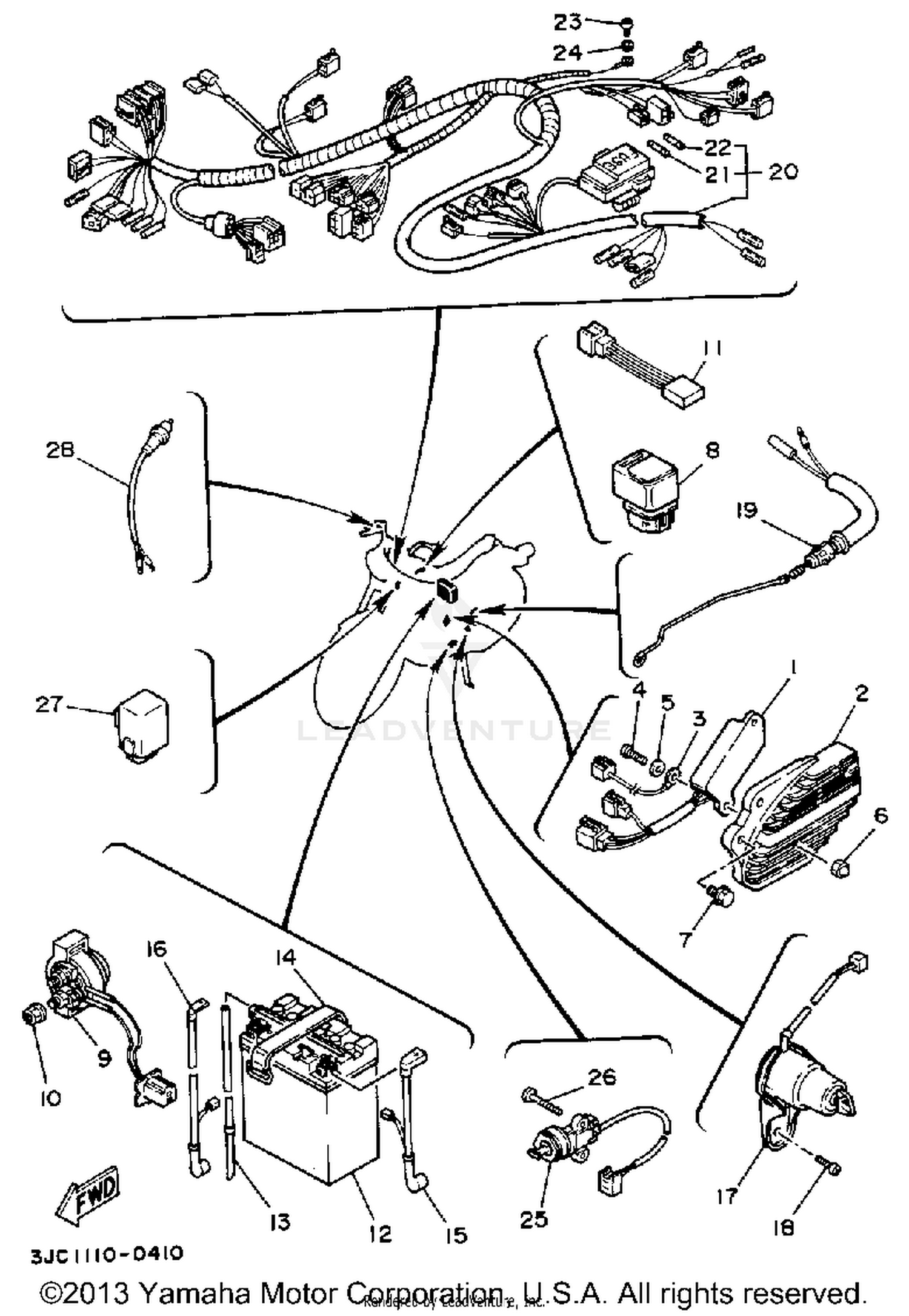

1990 Yamaha XV535A ELECTRICAL 1 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER & REGULATOR ASSEMBLY
42X-81960-A1-00
|
$316.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, RECTIFIER FITTING
3JB-81975-00-00
Superseded by 3JB-81975-01-00
|
$157.99 | ||
|
Unavailable |
|||
|
#3
WIRE, EARTH LEAD 2
3LR-83364-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98502-06016-00
Superseded by 98580-06016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
RELAY ASSY
4U8-81950-02-00
Superseded by 4U8-81950-03-00
|
$77.99 | ||
|
Unavailable |
|||
|
#9
STARTER RELAY ASSY (MS5D-611)
3AY-81940-00-00
Superseded by 4KD-81940-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIODE ASSEMBLY
4H7-81980-M0-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
YB12ALA2 YUASA BATT
BTG-GM12A-Z3-A2
Superseded by YB1-2ALA2-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
90445-08248-00
Superseded by 90445-08719-00
|
$10.99 | ||
|
Unavailable |
|||
|
#14
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE, PLUS LEAD
2GV-82115-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WIRE, MINUS LEAD
2GV-82116-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
MAIN SWITCH ASSEMBLY
3JC-82510-00-00
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92016-08025-00
Superseded by 92017-08025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOP SWITCH ASSY
2GV-82530-03-00
Superseded by 2GV-82530-04-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRE HARNESS ASSEMBLYASSY
3JC-82590-00-00
|
$214.99 | ||
|
Unavailable |
|||
|
#21
FUSE (20A-BL)
2GV-82151-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE (10A-BL)
42X-82151-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-06010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#25
SWITCH, SIDE STAND
3XW-82566-00-00
Superseded by 3LD-82566-B1-00
|
$47.99 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CONTROL UNIT ASS''Y
41R-85740-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
FRONT STOP SWITCH ASSY
1A0-83980-30-00
Superseded by 26H-83980-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
