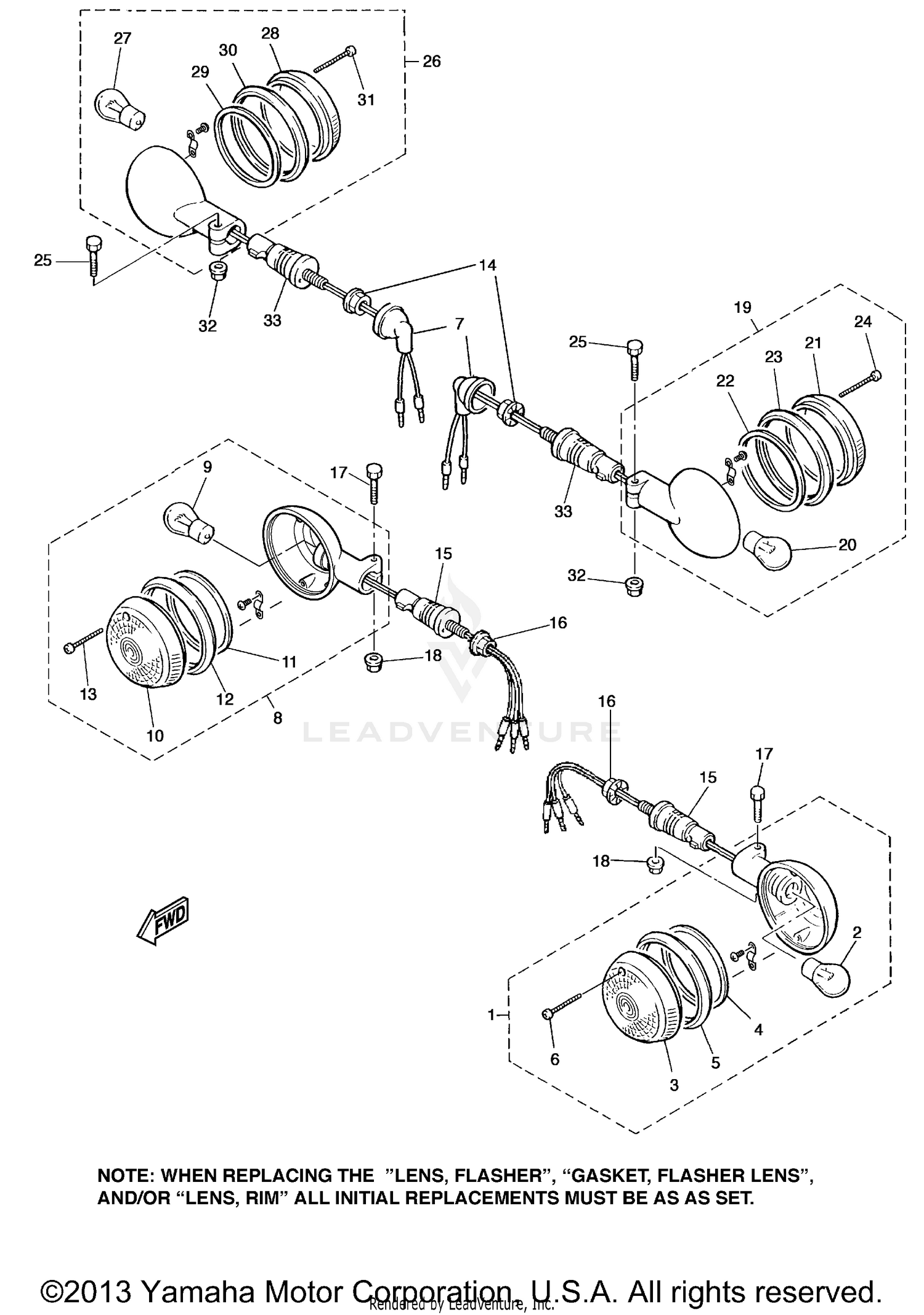

Flasher Light Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGHT ASSY 1
42X-83310-K1-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, FLASHER
42X-83312-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, FLASHER LENS
1D6-83313-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
LENS, RIM
1D6-83363-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, COUNTERSUNK
57M-83358-00-00
Superseded by 90151-03003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP
18G-83365-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FRONT FLASHER LIGHT ASSY 1
42X-83310-K1-00
|
$54.99 | ||
|
Unavailable |
|||
|
#9
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Unavailable |
|||
|
#10
LENS, FLASHER
42X-83312-20-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, FLASHER LENS
1D6-83313-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#12
LENS, RIM
1D6-83363-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#13
SCREW, COUNTERSUNK
57M-83358-00-00
Superseded by 90151-03003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
NUT
95303-12600-00
Superseded by 95304-12600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY,FLASHER 1
1AA-83318-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95303-12600-00
Superseded by 95304-12600-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
BOLT
97003-06030-00
Superseded by 97013-06030-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
REAR FLASHER LIGHT ASSY 1
1AA-83330-K1-00
Superseded by 1AA-83330-K9-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
LENS, FLASHER
42X-83312-20-00
|
$14.99 | ||
|
Unavailable |
|||
|
#22
GASKET, FLASHER LENS
1D6-83313-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
LENS, RIM
1D6-83363-10-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, SPECIAL
57M-83358-80-00
|
|||
|
Unavailable |
|||
|
#25
BOLT
97003-06030-00
Superseded by 97013-06030-00
|
$2.45 | ||
|
Unavailable |
|||
|
#26
REAR FLASHER LIGHT ASSY 1
1AA-83330-K1-00
Superseded by 1AA-83330-K9-00
|
$112.99 | ||
|
Unavailable |
|||
|
#27
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#28
LENS, FLASHER
42X-83312-10-00
|
$14.99 | ||
|
Unavailable |
|||
|
#29
GASKET, FLASHER LENS
1D6-83313-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#30
LENS, RIM
1D6-83363-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#31
SCREW, COUNTERSUNK
57M-83358-00-00
Superseded by 90151-03003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Unavailable |
|||
|
#33
STAY,FLASHER 1
1AA-83318-00-00
|
$43.99 | ||
|
Unavailable |
|||
