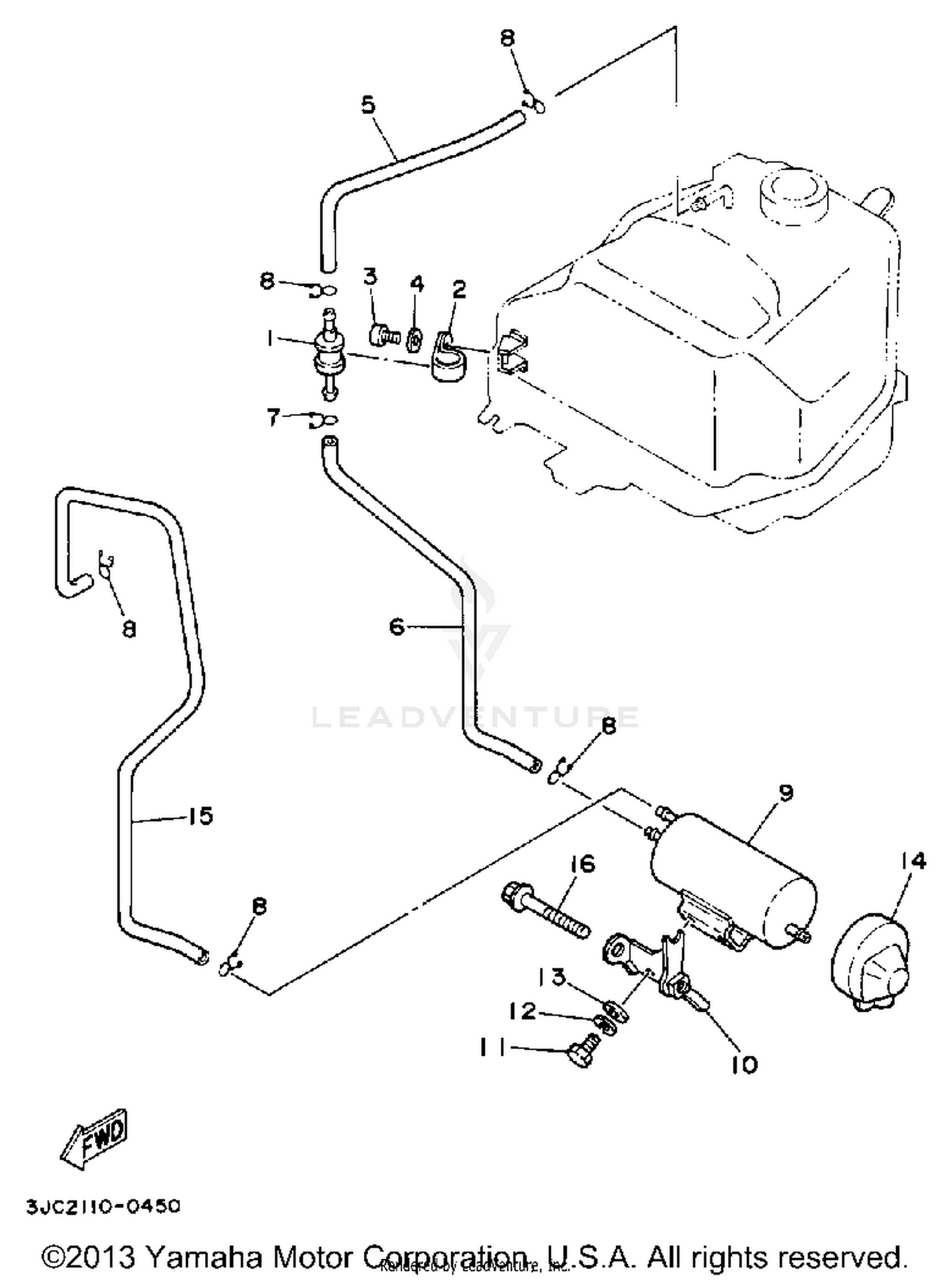

1990 Yamaha XV535A FUEL TANK 2 CALIFORNIA MODEL ONLY OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROLL OVER VALVE ASSY
25H-24180-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CLAMP
90461-15100-00
Superseded by 90464-15014-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE 3
3JC-24313-00-00
Superseded by 3JC-24313-02-00
|
$81.99 | ||
|
Unavailable |
|||
|
#6
PIPE 4
2JU-24314-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#7
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CANISTER ASSY
2JU-24170-00-00
|
$258.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER
2JU-2419A-00-00
|
$179.99 | ||
|
Unavailable |
|||
|
#11
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CANISTER
2JU-2419E-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE 5
2JU-24315-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
95806-10065-00
|
$1.33 | ||
|
Unavailable |
|||
