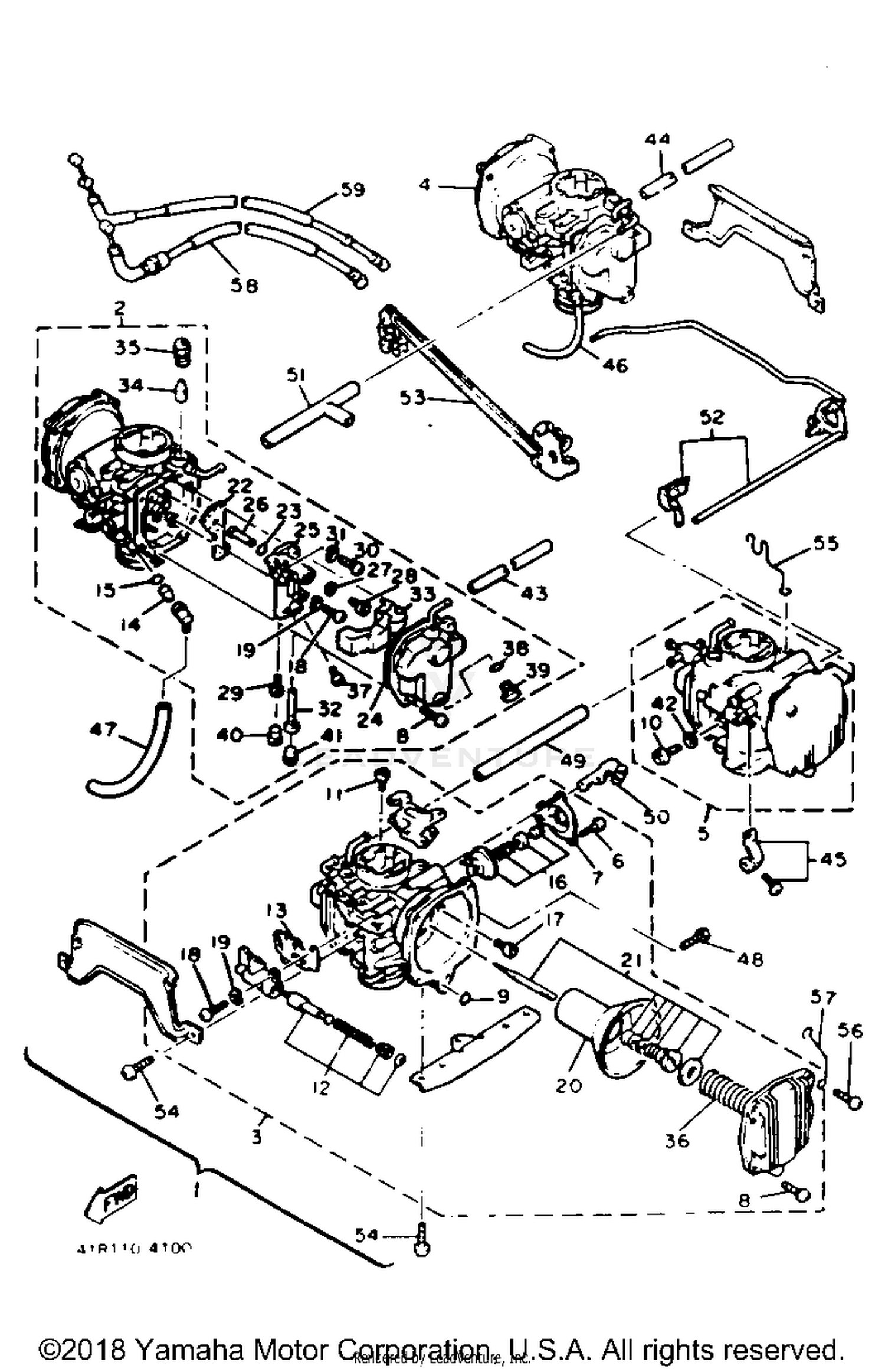

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARB. ASS''Y
59-J1490-00-00
|
|||
|
Unavailable |
|||
|
#2
CARB. ASS''Y 1
59J-14901-00-00
|
$388.99 | ||
|
Unavailable |
|||
|
#3
CARB. ASS''Y 2
59-J1490-20-00
|
|||
|
Unavailable |
|||
|
#4
CARB. ASS''Y 3
59J-14903-00-00
|
$388.99 | ||
|
Unavailable |
|||
|
#5
CARB. ASS''Y 4
59-J1490-40-00
|
|||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
31-M1495-80-00
|
|||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-03119-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, SCREW
341-14991-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET, MAIN 80 (80)
3G2-14231-16-00
|
$6.49 | ||
|
Unavailable |
|||
|
#12
STARTER SET
59J-1410A-00-00
|
$27.76 | ||
|
Unavailable |
|||
|
#13
GASKET
22U-14536-00-00
Superseded by 3JB-14536-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, DRAIN
2L1-14191-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
214-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DIAPHRAGM SET, 5 (26H-1490H-0
3LD-1490H-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET, PILOT AIR (#170)
3G2-14231-34-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
DIAPHRAGM ASSEMBLY (41R-14940
41R-14940-00-00
Superseded by 41R-14940-09-00
|
$215.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NEEDLE SET
41V-1490J-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#22
GASKET
22U-14199-00-00
Superseded by 3JB-14199-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
22U-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
22V-14147-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BLOCK JET ASSY (26H-1411A-00-
26H-1411A-00-09
|
$100.99 | ||
|
Unavailable |
|||
|
#26
NOZZLE, MAIN
26H-14941-90-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
22U-14565-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET, PILOT 37.5 (4G0-14142-3
4G0-14142-37-A0
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Unavailable |
|||
|
#32
PIPE, MAIN BLEED
26H-1414G-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
FLOAT
26H-14985-00-00
|
$31.41 | ||
|
Unavailable |
|||
|
#34
NEEDLE VALVE ASSEMBLY
22U-14190-15-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NET, FILTER
1J7-14994-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPRING, DIAPHRAGM
41R-14933-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#37
JET, MAIN (#117.5)
3G2-1423A-74-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING
22U-14561-00-00
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLUG, SCREW
22U-14115-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CAP
22V-14968-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
CAP
22U-14968-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER
26H-14952-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIPE
31-H1419-70-00
|
|||
|
Unavailable |
|||
|
#44
PIPE
26H-14197-00-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
STARTER LEVER SET 2
41-V1490-M0-00
|
|||
|
Unavailable |
|||
|
#46
PIPE
26H-14193-00-00
|
$15.90 | ||
|
Unavailable |
|||
|
#47
HOSE
90445-07419-00
Superseded by 90445-075G4-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
SCREW, FLAT HEAD
92680-06010-00
Superseded by 98780-06010-00
|
$2.10 | ||
|
Unavailable |
|||
|
#49
HOSE
31H-14987-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLIP, PIPE
31-H1413-90-00
|
|||
|
Unavailable |
|||
|
#51
HOSE
26H-14987-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
STARTER LEVER SET, 1
41V-1490L-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#53
ROD SET
41V-14504-00-00
|
$14.42 | ||
|
Unavailable |
|||
|
#54
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
CLIP, PIPE
26H-14139-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#56
SCREW, PAN HEAD
98580-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLIP, PIPE
31M-14139-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#58
CABLE, THROTTLE 3
41V-26313-00-00
Superseded by 41V-26313-01-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
CABLE, THROTTLE 4
41V-2631J-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
