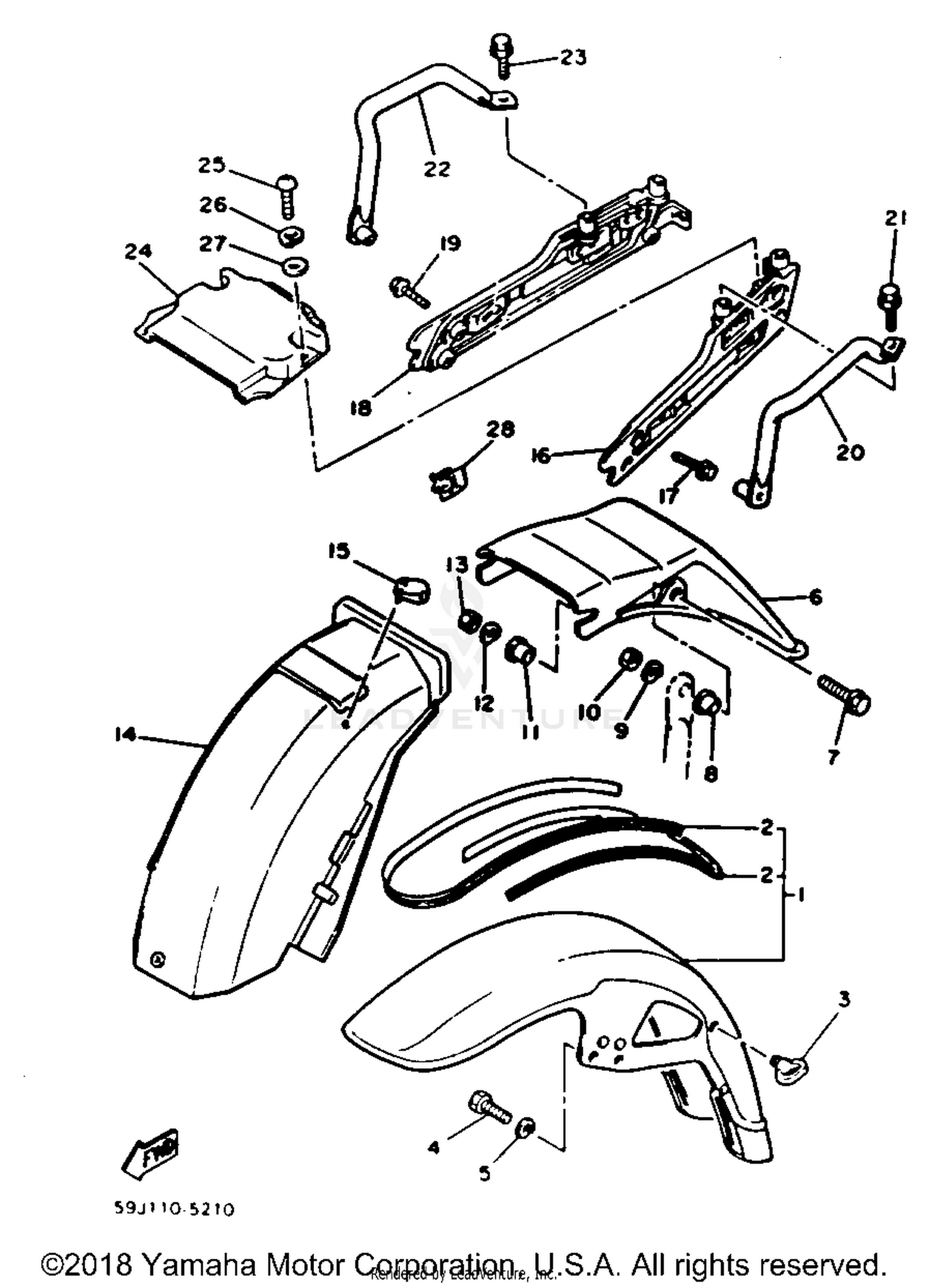

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP
59G-Y2151-00-6X
|
$441.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET, FRONT FENDER
59-G2157-00-00
|
|||
|
Unavailable |
|||
|
#3
HOLDER, CABLE
1A8-21518-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FENDER COMP
41R-21610-00-JN
|
$143.99 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95816-08030-00
Superseded by 95817-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-08564-00
|
$6.99 | ||
|
Unavailable |
|||
|
#9
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
NUT (6L2)
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-07717-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, mud
26H-21629-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#15
CLAMP
90464-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, FENDER 1
26H-21613-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
95821-08025-00
Superseded by 95817-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, FENDER 2
26H-21614-00-00
|
$95.62 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
95821-08025-00
Superseded by 95817-08025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
STAY, REAR
54-K2164-40-00
|
|||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY, REAR
54K-21645-00-00
|
$16.10 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.05 | ||
|
Unavailable |
|||
|
#24
COVER, rear fender 3
26H-2163F-01-00
|
$32.99 | ||
|
Unavailable |
|||
|
#25
SCREW,PAN HEAD
92506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-16025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
