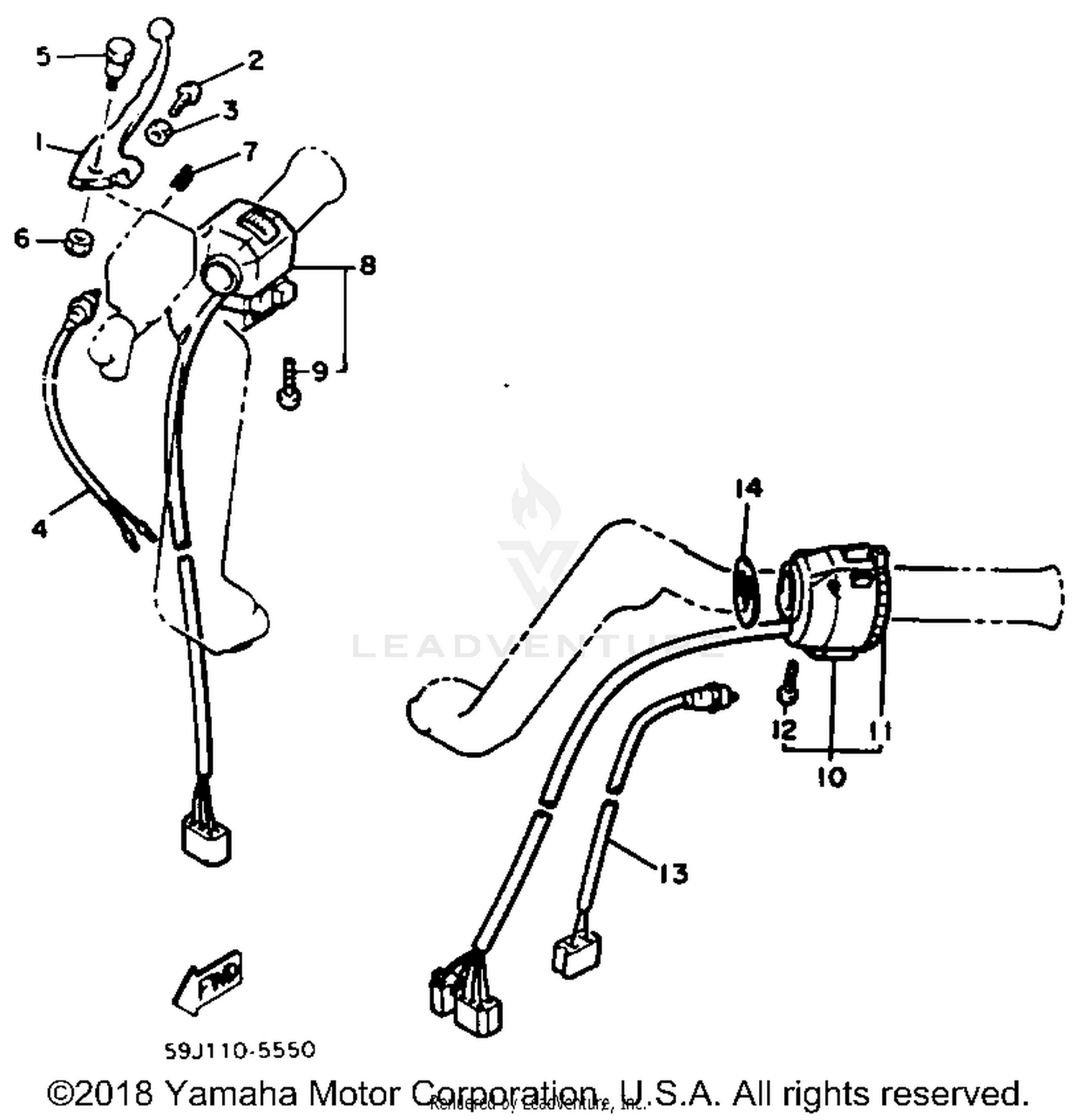

Handel Switch Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER 2 (26H-83922-01)
26H-83922-10-00
|
$43.99 | ||
|
Unavailable |
|||
|
#2
SCREW
90149-06131-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90170-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOP SWITCH ASSY (41V-83980-00)
41V-83980-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#5
BOLT
90109-06577-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-10510-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH, handle 3 RT (41V-83963-
41V-83963-01-00
|
$127.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98506-05040-00
Superseded by 98507-05040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH, HANDLE 3
54K-83973-00-00
|
$114.99 | ||
|
Unavailable |
|||
|
#11
CHOKE RING ASSEMBLY
58L-83960-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98506-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH (41V-82917-00)
41V-82917-01-00
|
$69.99 | ||
|
Unavailable |
|||
