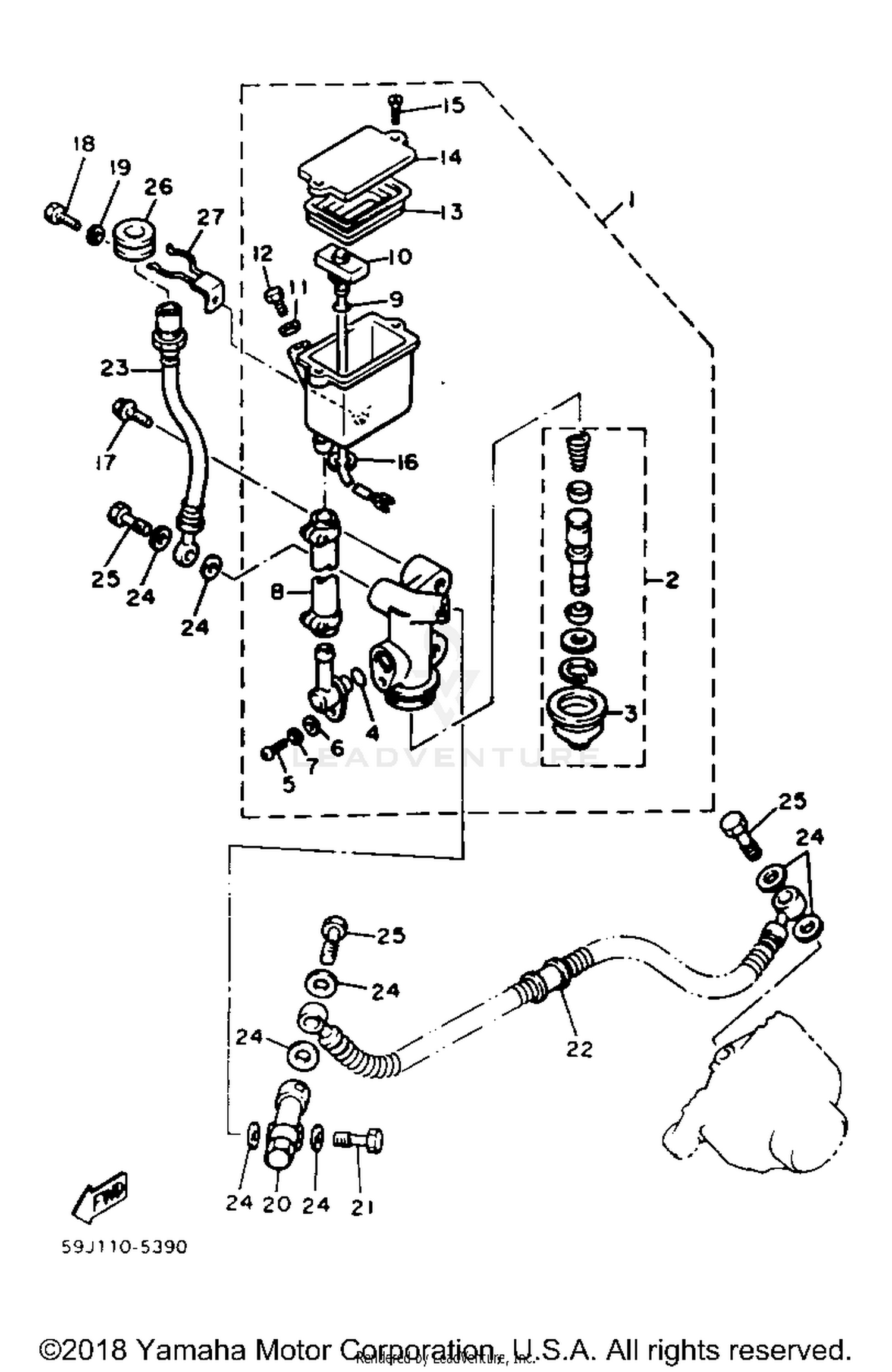

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSEMBLY (26H-2
3DP-2583V-00-00
|
$314.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
26H-W0041-50-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
2M0-25864-50-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, reservoir
26H-25895-50-00
|
$27.99 | ||
|
Unavailable |
|||
|
#9
O-RING
93210-08493-00
|
$6.49 | ||
|
Unavailable |
|||
|
#10
LEAD SWITCH ASS''Y
5G2-85702-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#11
WASHER, plate
90201-10610-00
|
$4.65 | ||
|
Unavailable |
|||
|
#12
SCREW, hexagon
90153-10015-00
|
$7.99 | ||
|
Unavailable |
|||
|
#13
DIAPHRAGM, RESERVOIR
26H-25854-50-00
|
$11.84 | ||
|
Unavailable |
|||
|
#14
CAP, RESERVOIR
26-H2585-25-00
|
|||
|
Unavailable |
|||
|
#15
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP (E) (99001-09600-00)
99001-09600-00
Superseded by 99080-09600-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-08141-00
Superseded by 95817-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97016-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE, PROPORTIONING
26H-25884-00-00
|
$333.99 | ||
|
Unavailable |
|||
|
#21
BOLT, UNION
90401-10044-00
Superseded by 90401-10038-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HS,BRKE 1
26H-25872-52-00
Superseded by 99999-02792-00
|
$97.99 | ||
|
Unavailable |
|||
|
#23
HOSE,BRAKE
26H-25874-01-00
Superseded by 99999-02793-00
|
$52.99 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PROTECTOR, BRAKE HOSE
341-25881-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, brake hose
26H-25887-50-00
|
$13.99 | ||
|
Unavailable |
|||
