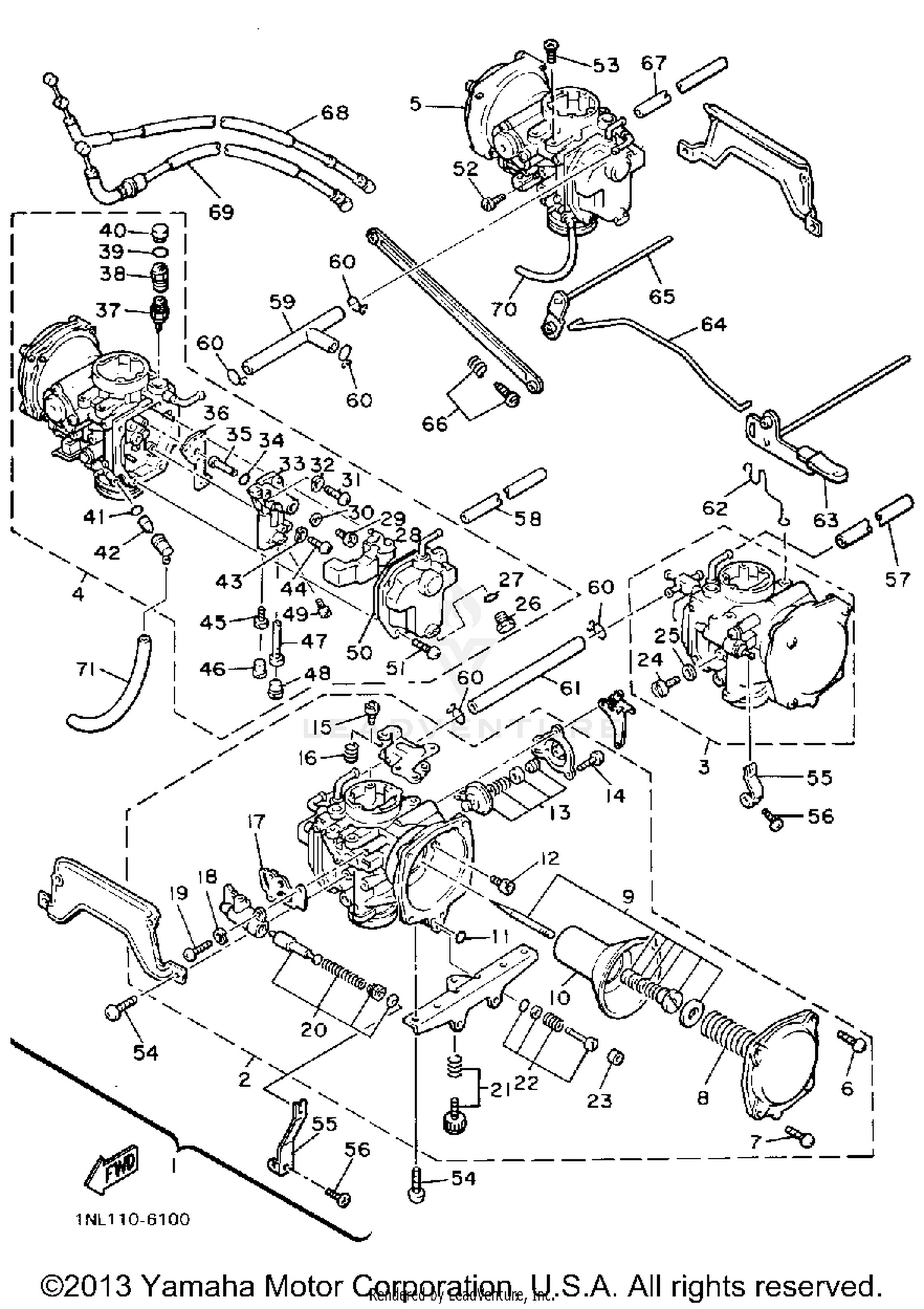

Carburetor Diagram

Item MSRP Qty
#1 UNAVAILABLE IN PRICE BOOK
1N-L1490-00-00
Unavailable
#2 CARBURETOR ASY 2
1NL-14902-01-00
Superseded by 1NL-14902-02-00
 $503.99
Unavailable
#3 CARBURETOR ASY 1
1UN-14901-01-00
Superseded by 1UN-14901-02-00
 $441.99
Unavailable
#4 CARB. ASY
1UN-14904-01-00
Superseded by 1UN-14904-02-00
 $487.99
Unavailable
#5 CARBURETOR ASY 3
1UN-14903-01-00
Superseded by 1UN-14903-02-00
 $459.99
Unavailable
#6 SCREW, PAN HEAD
90157-05050-00
 $3.35
Available to order.
Add to View Price
#7 SCREW, PAN HEAD
98580-05012-00
 $7.49
Available to order.
Add to View Price
#8 SPRING, DIAPHRAGM
1FK-14933-00-00
 $34.99
Available to order.
Add to View Price
#9 NEEDLE SET
1NL-1490J-00-00
 $13.99
Unavailable
#10 DIAPHRAGM ASSY
1FK-14940-00-00
Superseded by 1FK-14940-09-00
 $237.99
Available to order.
Add to View Price
#11 O-RING
93210-03119-00
 $4.70
Available to order.
Add to View Price
#12 JET, PILOT AIR (#170)
3G2-14231-34-00
 $13.99
Available to order.
Add to View Price
#13 DIAPHRAGM SET 5
3LD-1490H-00-00
 $92.99
Available to order.
Add to View Price
#14 SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
 $3.65
Available to order.
Add to View Price
#15 JET, MAIN 80 (80)
3G2-14231-16-00
 $6.49
Unavailable
#16 SCREW, THROTTLE
41R-14922-00-00
 $2.45
Unavailable
#17 GASKET
3JB-14536-00-00
 $15.99
Available to order.
Add to View Price
#18 WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
 $4.99
Available to order.
Add to View Price
#19 SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
 $3.65
Unavailable
#20 STARTER SET
11H-1410A-00-00
 $100.99
Available to order.
Add to View Price
#21 THROTTLE SCREW SET
41V-14103-00-00
 $26.99
Unavailable
#22 PILOT SCREW SET
12R-14105-00-00
 $16.99
Available to order.
Add to View Price
#23 CAP
3F9-14118-00-00
 $8.49
Available to order.
Add to View Price
#24 PLUG, SCREW
341-14991-00-00
 $5.99
Available to order.
Add to View Price
#25 WASHER
26H-14952-00-00
 $5.49
Available to order.
Add to View Price
#26 PLUG, SCREW
22U-14115-00-00
 $15.99
Available to order.
Add to View Price
#27 O-RING
22U-14561-00-00
 $7.30
Available to order.
Add to View Price
#28 FLOAT
1FK-14985-00-00
 $72.99
Available to order.
Add to View Price
#29 SCREW
22U-14565-00-00
 $26.99
Available to order.
Add to View Price
#30 WASHER, MAIN JET
137-14153-00-00
 $7.49
Available to order.
Add to View Price
#31 SCREW, PAN HEAD
98511-04020-00
Superseded by 98517-04020-00
 $7.49
Available to order.
Add to View Price
#32 WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
 $4.99
Unavailable
#33 BLOCK JET ASSY
26H-1411A-00-09
 $100.99
Unavailable
#34 O-RING
22U-14147-00-00
 $7.49
Available to order.
Add to View Price
#35 NOZZLE, MAIN
26H-14941-90-00
 $40.99
Available to order.
Add to View Price
#36 GASKET
3JB-14199-00-00
 $28.99
Available to order.
Add to View Price
#37 NEEDLE VALVE ASSY
1FK-14190-15-00
 $43.99
Available to order.
Add to View Price
#38 NET, FILTER
1J7-14994-00-00
 $25.99
Available to order.
Add to View Price
#39 O-RING
1FK-14147-00-00
 $6.49
Available to order.
Add to View Price
#40 CAP
41R-14118-01-00
 $25.99
Available to order.
Add to View Price
#41 O-RING
214-14147-00-00
 $7.49
Available to order.
Add to View Price
#42 PLUG, DRAIN
2L1-14191-00-00
 $27.99
Available to order.
Add to View Price
#43 WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
 $4.99
Unavailable
#44 SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
 $3.65
Unavailable
#45 JET, PILOT (#37.5)
4G0-14142-37-A0
 $13.99
Available to order.
Add to View Price
#46 CAP
22V-14968-00-00
 $7.49
Available to order.
Add to View Price
#47 PIPE, MAIN BLEED
26H-1414G-00-00
 $29.99
Available to order.
Add to View Price
#48 CAP
22U-14968-00-00
 $5.49
Available to order.
Add to View Price
#49 JET, MAIN (#125)
3G2-14231-25-00
 $12.99
Available to order.
Add to View Price
#50 O-RING
22V-14147-00-00
 $28.99
Available to order.
Add to View Price
#51 SCREW, PAN HEAD
98580-05012-00
 $7.49
Unavailable
#52 SCREW
2F1-14991-00-00
 $12.49
Available to order.
Add to View Price
#53 SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
 $2.80
Available to order.
Add to View Price
#54 SCREW, PAN HEAD
98580-06010-00
 $7.49
Available to order.
Add to View Price
#55 LEVER, STARTER
41R-14905-00-00
 $10.99
Unavailable
#56 SCREW
41R-14991-00-00
 $2.17
Unavailable
#57 PIPE
1FK-14197-01-00
 $15.99
Available to order.
Add to View Price
#58 PIPE (INL-14197-00-00)
90445-111F4-00
 $6.49
Unavailable
#59 HOSE
26H-14987-00-00
 $66.99
Available to order.
Add to View Price
#60 CLIP
90467-10008-00
Superseded by 90467-100A1-00
 $6.49
Available to order.
Add to View Price
#61 HOSE
31H-14987-00-00
 $45.99
Available to order.
Add to View Price
#62 CLIP, PIPE
26H-14139-00-00
 $9.49
Unavailable
#63 UNAVAILABLE IN PRICE BOOK
41-R1497-70-00
Unavailable
#64 ROD
41R-14992-00-00
 $18.76
Unavailable
#65 SHAFT, STARTER LVR
41R-14978-00-00
 $10.70
Unavailable
#66 STOP SCREW SET
41V-1490K-00-00
Superseded by 48H-1490K-00-00
 $24.99
Unavailable
#67 HOSE (L800)
1UM-14197-00-00
Superseded by 90445-11083-00
 $19.99
Available to order.
Add to View Price
#68 CABLE, THROTTLE 4
41V-2631J-00-00
 $24.99
Available to order.
Add to View Price
#69 CABLE, THROTTLE 3
41V-26313-01-00
 $54.99
Available to order.
Add to View Price
#70 HOSE
90445-07419-00
Superseded by 90445-075G4-00
 $9.49
Available to order.
Add to View Price
#71 HOSE
90445-07419-00
Superseded by 90445-075G4-00
 $9.49
Unavailable
