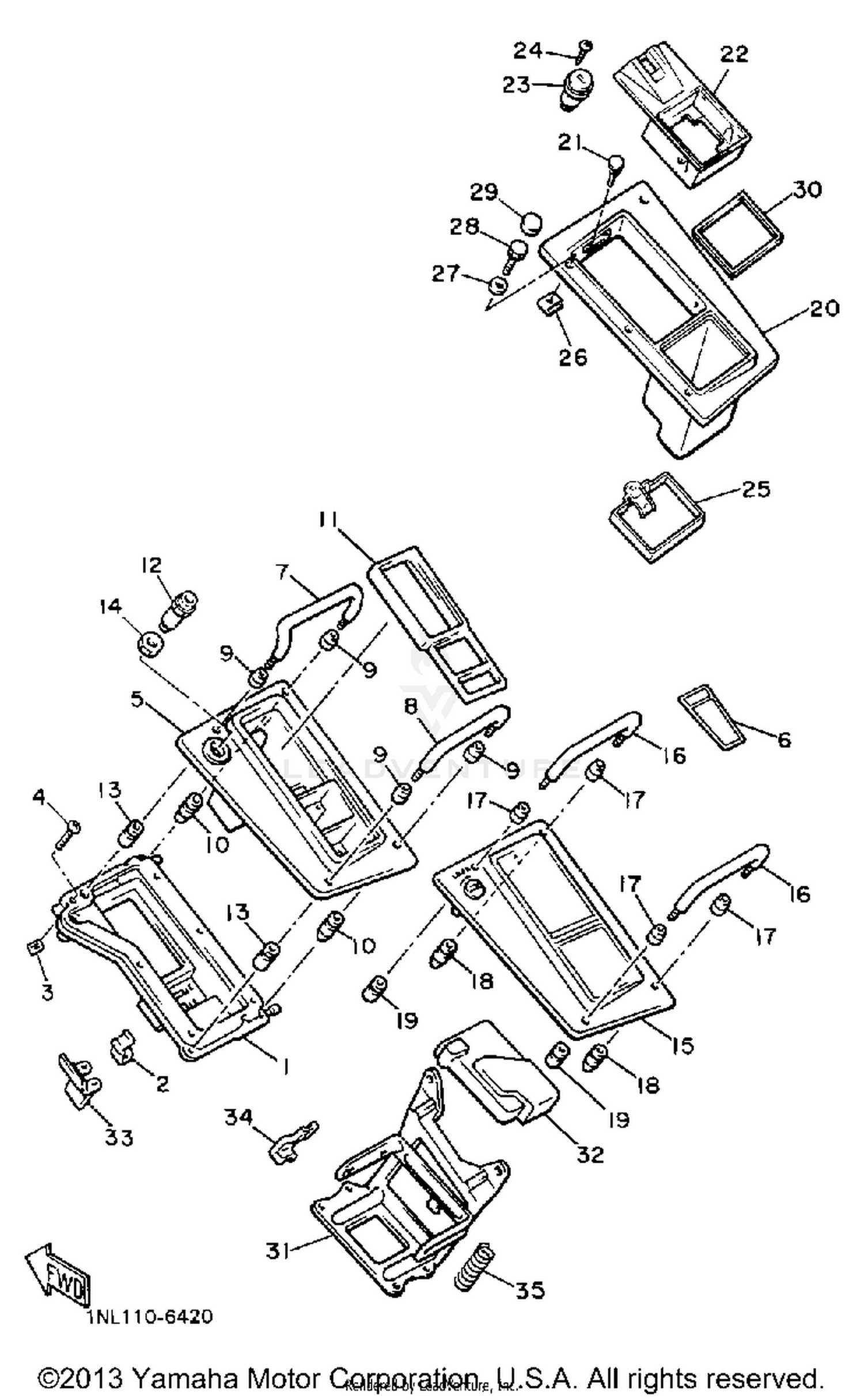

Fairing 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TERMINAL PANEL ASSEMBLY
26H-28210-00-00
|
$197.99 | ||
|
Unavailable |
|||
|
#2
PLATE, spring
26H-28255-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#3
NUT, SPRING
90183-04027-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
TAPPING SCREW
90164-04006-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PANEL, accessory 1
26H-28212-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#6
EMBLEM 1
26H-28291-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#7
HANDLE, carrying 1
26H-28214-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#8
HANDLE, carrying 2
26H-28224-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#9
WASHER, special
26H-28215-00-00
|
$3.55 | ||
|
Unavailable |
|||
|
#10
NUT, special
26H-28225-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, 1
26H-28217-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#12
SIDE COVER LOCK ASSY
26H-21708-00-00
|
$92.99 | ||
|
Unavailable |
|||
|
#13
NUT, special 2
26H-28244-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#14
NUT
90170-22187-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER 1
26H-28219-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#16
HANDLE, carrying 2
26H-28224-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#17
WASHER, special
26H-28215-00-00
|
$3.55 | ||
|
Unavailable |
|||
|
#18
NUT, special
26H-28225-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#19
NUT, special 2
26H-28244-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#20
PANEL, terminal
59J-28221-00-00
|
$249.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER, grip
26H-2843A-00-00
|
$3.20 | ||
|
Unavailable |
|||
|
#22
PANEL, accessory 2
59J-28222-00-00
|
$169.99 | ||
|
Unavailable |
|||
|
#23
LOCK ASSY
1HX-21780-00-00
Superseded by 1HX-21780-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#24
SCREW, TAPPING
97701-40510-00
Superseded by 97707-40610-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, accessoryu 2
59J-28242-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#26
NUT, SPRING
90183-04039-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
92906-04600-00
Superseded by 92907-04600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT,SCKT HD
91316-04016-00
Superseded by 91317-04016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG
90338-07175-00
|
$5.99 | ||
|
Unavailable |
|||
|
#30
DAMPER 4
26H-28247-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#31
BRACKET, accessory 1
26H-28232-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#32
COVER 3
26H-28239-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#33
CLAMP, connecting
26H-28265-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#34
CLAMP, connecting 2
26H-28266-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#35
SPRING, compression
90501-142E6-00
|
$3.40 | ||
|
Unavailable |
|||
