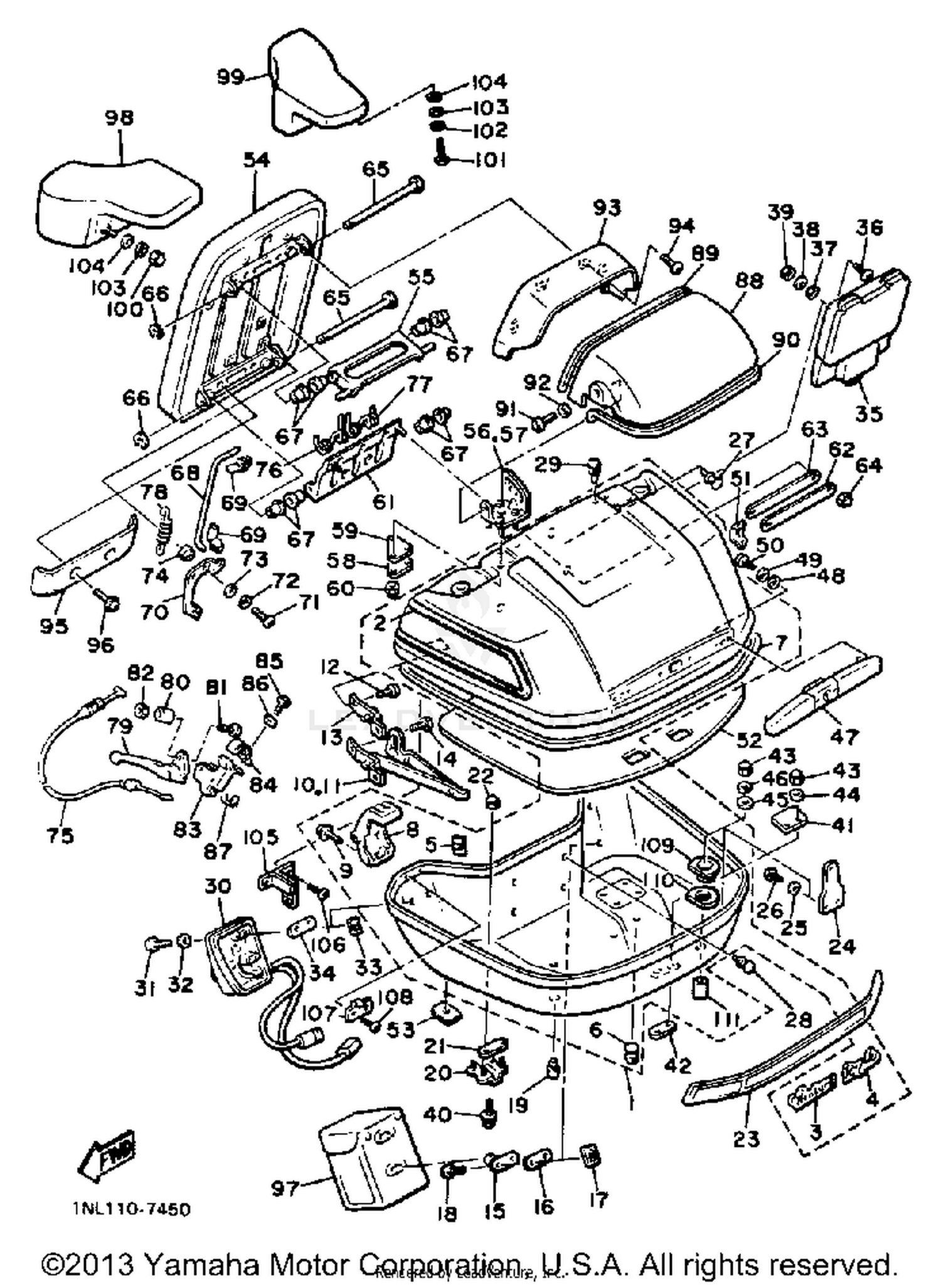

Travelbag Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TRAVEL TRUNK
1NL-Y284E-10-2X
|
$1,452.99 | ||
|
Unavailable |
|||
|
#
TRAVEL TRUNK
1NL-Y284E-20-3X
|
$1,489.99 | ||
|
Unavailable |
|||
|
#
TRAVEL TRUNK
1NL-Y284E-00-1X
|
$1,286.99 | ||
|
Unavailable |
|||
|
#
TRAVEL TRUNK
1NL-Y284E-30-4X
|
$1,489.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET, TRUNK TRAVEL TRU
1NL-2840H-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET, TRUNK TRAVEL TR
1NL-2840H-10-00
|
$39.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET, TRUNK TRAVEL TR
1NL-2840H-30-00
|
$44.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET, TRUNK TRAVEL TR
1NL-2840H-20-00
|
$41.08 | ||
|
Unavailable |
|||
|
#3
EMBLEM 4 (26H-21784-00)
54K-2842J-01-00
Superseded by 26H-21783-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#4
EMBLEM 3
31M-2842J-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#5
CLAMP
90464-62085-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PAD, BATTERY
5G7-82121-00-00
|
$1.18 | ||
|
Unavailable |
|||
|
#7
SEAL 5
54K-2847F-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#8
HINGE 2
54K-2845E-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#9
SCREW, WITH WASHER
90159-05132-00
|
$0.99 | ||
|
Unavailable |
|||
|
#10
STOPPER, open
1NL-2845L-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#11
STOPPER, open
1NL-2845M-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#12
SCREW, tapping (97701-30106)
97701-30606-00
|
$0.55 | ||
|
Unavailable |
|||
|
#13
BRACKET, trunk stopper
1NL-2849R-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#14
SCREW, tapping (97701-30106)
97701-30606-00
|
$0.55 | ||
|
Unavailable |
|||
|
#15
HOOK
54K-2844L-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#16
SEAL 7
54K-2849F-00-00
|
$2.05 | ||
|
Unavailable |
|||
|
#17
NUT, special
54K-2849M-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#18
SCREW, TAPPING
97701-40710-00
Superseded by 97707-40710-00
|
$0.70 | ||
|
Unavailable |
|||
|
#19
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET 3
1NL-28476-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#21
PLATE, rubber 3
1NL-28485-00-00
|
$2.40 | ||
|
Unavailable |
|||
|
#22
NUT
95306-05800-00
Superseded by 95307-05800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
REAR REFLECTOR ASS''Y
54K-85140-00-00
|
$541.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOOK
54K-28488-00-00
|
$18.44 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98506-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG
90338-07180-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG
90338-06181-00
Superseded by 90338-07180-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
DAMPER, grip
26H-2843A-00-00
|
$3.20 | ||
|
Unavailable |
|||
|
#30
REMOTE CONTROL BASE ASS''Y
1NL-8816A-00-00
|
$441.99 | ||
|
Unavailable |
|||
|
#31
SCREW, tapping
90167-40042-00
|
$0.25 | ||
|
Unavailable |
|||
|
#32
WASHER
92906-04600-00
Superseded by 92907-04600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, special
54K-2849M-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
SEAL 7
54K-2849F-00-00
|
$2.05 | ||
|
Unavailable |
|||
|
#35
VANITY MIRROR ASS''Y
1NL-2840U-00-00
|
$165.99 | ||
|
Unavailable |
|||
|
#36
SCREW, BINDING
90154-05005-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
90202-05147-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
90201-05721-00
Superseded by 90201-05029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT
95306-05600-00
Superseded by 95317-05600-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (SMALL HEAD)
95023-06010-00
Superseded by 95024-06010-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLATE 3
54K-28497-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#42
PLATE, rubber 9
54K-2849J-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#43
NUT
95306-06800-00
Superseded by 95307-06800-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, PLATE
90202-06058-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, PLATE
90202-08125-00
Superseded by 90202-10120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#47
GRIP, SADDLEBAG
54K-28408-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#48
WASHER, PLATE
90202-08146-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
WASHER, PLATE
90201-05721-00
Superseded by 90201-05029-00
|
$7.49 | ||
|
Unavailable |
|||
|
#50
SCREW, PAN HEAD
98506-05008-00
Superseded by 98507-05008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#51
COVER LOCK ASS''Y 2
54K-28493-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#52
SEAT
54K-2848H-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#53
SEAT 2
1NL-2848K-00-00
|
$2.60 | ||
|
Unavailable |
|||
|
#54
BACK REST ASS''Y
1NL-2840F-00-00
Superseded by 3JJ-2840F-00-00
|
$228.99 | ||
|
Unavailable |
|||
|
#55
HINGE 1
1NL-28444-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#56
BRACKET, hinge
1NL-2846M-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#57
BRACKET, hinge 2
1NL-2846N-01-00
|
$42.99 | ||
|
Unavailable |
|||
|
#58
PLATE 5
1NL-2847H-00-00
|
$4.20 | ||
|
Unavailable |
|||
|
#59
PLATE, rubber 7
1NL-2847J-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#60
NUT
95306-05800-00
Superseded by 95307-05800-00
|
$6.49 | ||
|
Unavailable |
|||
|
#
LEVER
1NL-2841A-01-00
|
$13.49 | ||
|
Unavailable |
|||
|
#61
BRACKET 4
1NL-28477-01-00
|
$46.99 | ||
|
Unavailable |
|||
|
#62
PLATE 6
1NL-2849H-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#63
PLATE, rubber 6
1NL-2846J-00-00
|
$4.30 | ||
|
Unavailable |
|||
|
#64
NUT
95306-05800-00
Superseded by 95307-05800-00
|
$6.49 | ||
|
Unavailable |
|||
|
#65
SHAFT 1
1NL-2844M-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#66
CIRCLIP
99080-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#67
BUSH
90386-06108-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#68
ROD
1NL-28478-00-00
|
$3.70 | ||
|
Unavailable |
|||
|
#69
JOINT, cage
1NL-28424-00-00
|
$2.95 | ||
|
Unavailable |
|||
|
#71
SCREW, PAN HEAD
98586-05016-00
Superseded by 90157-05M19-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#72
WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#73
WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#74
WASHER
90209-06223-00
Superseded by 90209-06187-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#75
WIRE, adjusting
1NL-2843M-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#76
SPRING
1NL-28489-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#77
SPRING 2
1NL-2848A-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#78
SPRING, TORSION
90506-12029-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#79
LEVER, DECOMPRESSION
583-83981-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
COLLAR, LEVER 1
583-83913-00-00
Superseded by 5BE-83913-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#81
SCREW, PAN HEAD
98586-05016-00
Superseded by 90157-05M19-00
|
$3.35 | ||
|
Unavailable |
|||
|
#82
NUT
95306-05800-00
Superseded by 95307-05800-00
|
$6.49 | ||
|
Unavailable |
|||
|
#83
HOLDER, lever upper 1
1NL-82912-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#84
HOLDER, lever lower 1
1NL-82913-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#85
SCREW, PAN HEAD
98506-06010-00
Superseded by 98507-06010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#86
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#87
STOPPER
1KH-26257-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#88
COVER 1
1NL-2842M-00-JW
|
$101.99 | ||
|
Unavailable |
|||
|
#
COVER 1
1NL-2842M-00-EM
|
$104.99 | ||
|
Unavailable |
|||
|
#
COVER 1
1NL-2842M-00-TY
|
$103.99 | ||
|
Unavailable |
|||
|
#
COVER 1
1NL-2842M-00-NR
|
$93.99 | ||
|
Unavailable |
|||
|
#89
MOULDING 10
1NL-2844U-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#90
MOULDING 10
1NL-2844U-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#91
BOLT,HEX. SOCKET BUT
90110-05079-00
Superseded by 90111-05059-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#92
WASHER, PLATE
90202-05088-00
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#93
COVER 2
1NL-2842N-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#94
SCREW, TAPPING
97780-40112-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#95
COVER 3
1NL-2843J-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#96
SCREW, W/WASHER
90159-05134-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#97
POUCH COMP. 2
1NL-28402-00-00
Superseded by 3JJ-28402-00-00
|
$259.99 | ||
|
Unavailable |
|||
|
#98
REST, ARM L/H
1NL-2840R-00-00
|
$85.26 | ||
|
Unavailable |
|||
|
#99
ARM REST ASS''Y 2
1NL-2840T-00-00
Superseded by 3JJ-2840T-00-00
|
$184.99 | ||
|
Unavailable |
|||
|
#100
NUT
95306-05800-00
Superseded by 95307-05800-00
|
$6.49 | ||
|
Unavailable |
|||
|
#101
SCREW, PAN HEAD
98586-05016-00
Superseded by 90157-05M19-00
|
$3.35 | ||
|
Unavailable |
|||
|
#102
WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#103
WASHER, PLATE
90202-05147-00
|
$0.80 | ||
|
Unavailable |
|||
|
#104
WASHER, PLATE
90201-05721-00
Superseded by 90201-05029-00
|
$7.49 | ||
|
Unavailable |
|||
|
#105
TRUNK SWITCH BRKT. 8
1NL-28469-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#106
SCREW, TAPPING
97701-30108-00
Superseded by 97707-30108-00
|
$0.75 | ||
|
Unavailable |
|||
|
#107
TRUNK SWITCH BRKT. 7
1NL-28468-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#108
SCREW, TAPPING
97701-30108-00
Superseded by 97707-30108-00
|
$0.75 | ||
|
Unavailable |
|||
|
#109
REINFORCEMENT 4
1NL-2843K-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#110
PLATE, rubber 10
1NL-2845K-00-00
|
$2.45 | ||
|
Unavailable |
|||
|
#111
COLLAR
90387-060A3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
