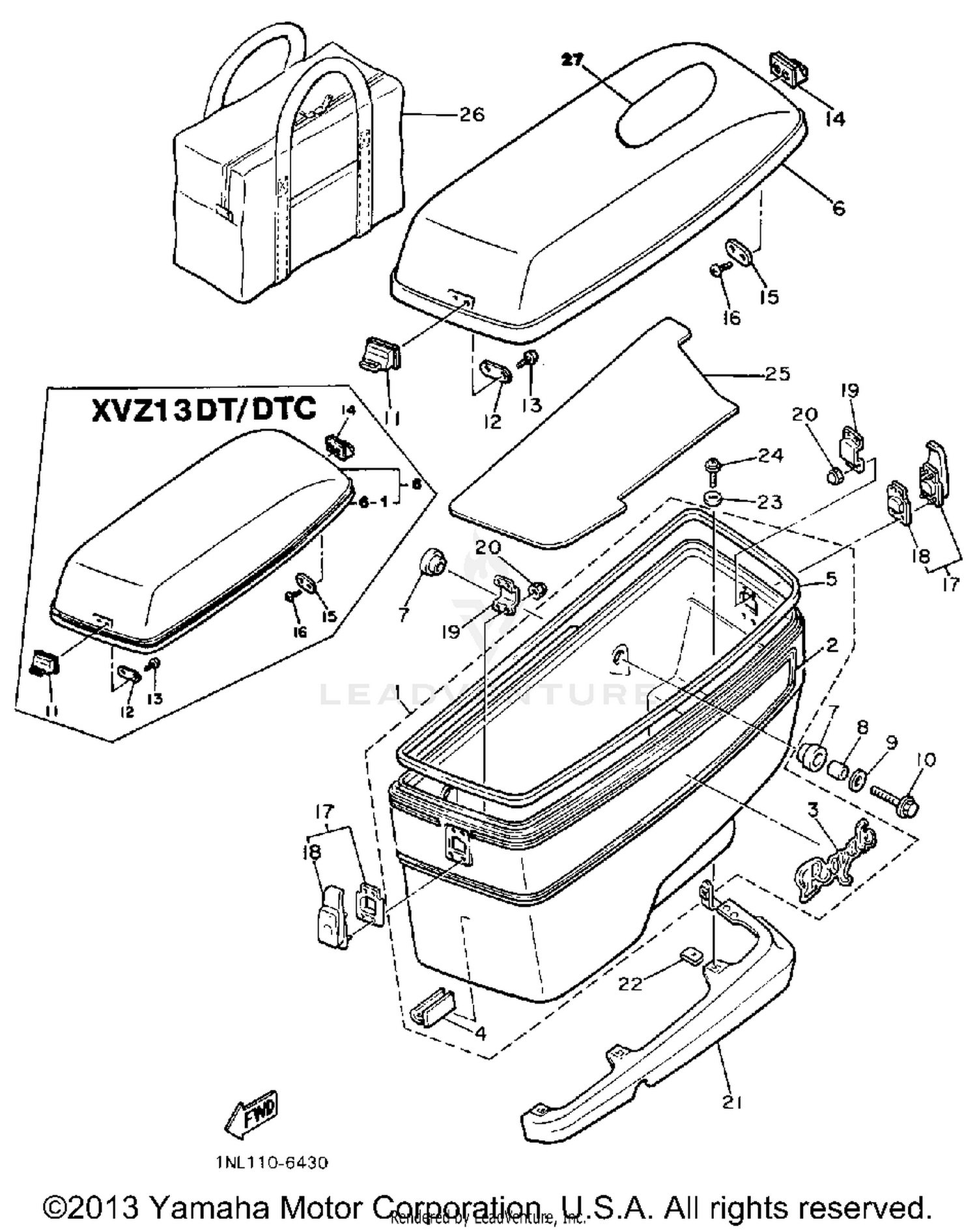

Saddlebag 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SADDLEBAG 1 (LH)
1NL-Y2841-00-1X
|
$886.99 | ||
|
Unavailable |
|||
|
#
SADDLEBAG 1 (LH)
1NL-Y2841-00-EM
|
$886.99 | ||
|
Unavailable |
|||
|
#
SADDLEBAG 1 (LH)
1NL-Y2841-10-2X
|
$886.99 | ||
|
Unavailable |
|||
|
#
SADDLEBAG 1
1NL-Y2841-00-TY
|
$886.99 | ||
|
Unavailable |
|||
|
#2
SADDLEBAG GRAPHIC SET 2
1NL-2840G-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#
SADDLEBAG GRAPHIC SET 2
1NL-2840G-10-00
|
$46.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM 4
31M-2844A-01-00
|
$35.99 | ||
|
Unavailable |
|||
|
#4
CLAMP
90464-62085-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL 1
1NL-28428-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#6
LID, SADDLEBAG
1NL-Y2842-00-EN
|
$458.99 | ||
|
Unavailable |
|||
|
#
LID, SADDLEBAG (LH)
1NL-28442-00-NR
|
$313.99 | ||
|
Unavailable |
|||
|
#
LID, SADDLEBAG
1NL-Y2842-10-TL
|
$303.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC 1GRAPHIC SET 1
1NL-2841G-20-00
|
$42.99 | ||
|
Unavailable |
|||
|
#
LID, SADDLEBAG (LH)
1NL-28442-00-JW
|
$366.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC 1GRAPHIC SET 1
1NL-2841G-30-00
|
$45.99 | ||
|
Unavailable |
|||
|
#7
GROMMET
90480-20447-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-083K2-00
Superseded by 90387-084R5-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-065G8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95816-06035-00
Superseded by 95817-06035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, rubber 1
1NL-Y284J-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#12
PLATE 2
1NL-28487-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98506-05008-00
Superseded by 98507-05008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, rubber 2
1NL-Y284K-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#15
PLATE 2
1NL-28487-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98506-05008-00
Superseded by 98507-05008-00
|
$3.35 | ||
|
Unavailable |
|||
|
#17
GRIP,SD-DLBG
1NL-28408-01-00
Superseded by 1NL-28408-02-00
|
$102.99 | ||
|
Unavailable |
|||
|
#18
SEAL 7
1NL-2849F-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#19
COVER LOCK ASSEMBLY 2
1NL-28493-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#20
NUT
95306-05800-00
Superseded by 95307-05800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GUARD COMP
1NL-2840K-00-00
|
$248.99 | ||
|
Unavailable |
|||
|
#22
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90202-05147-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, W/WASHER
90159-05134-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAT
1NL-2848H-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#26
BAG INNER 1
1NL-28479-01-00
|
$158.99 | ||
|
Unavailable |
|||
|
#27
SEAT 3
2WR-2848L-00-00
|
$14.99 | ||
|
Unavailable |
|||
