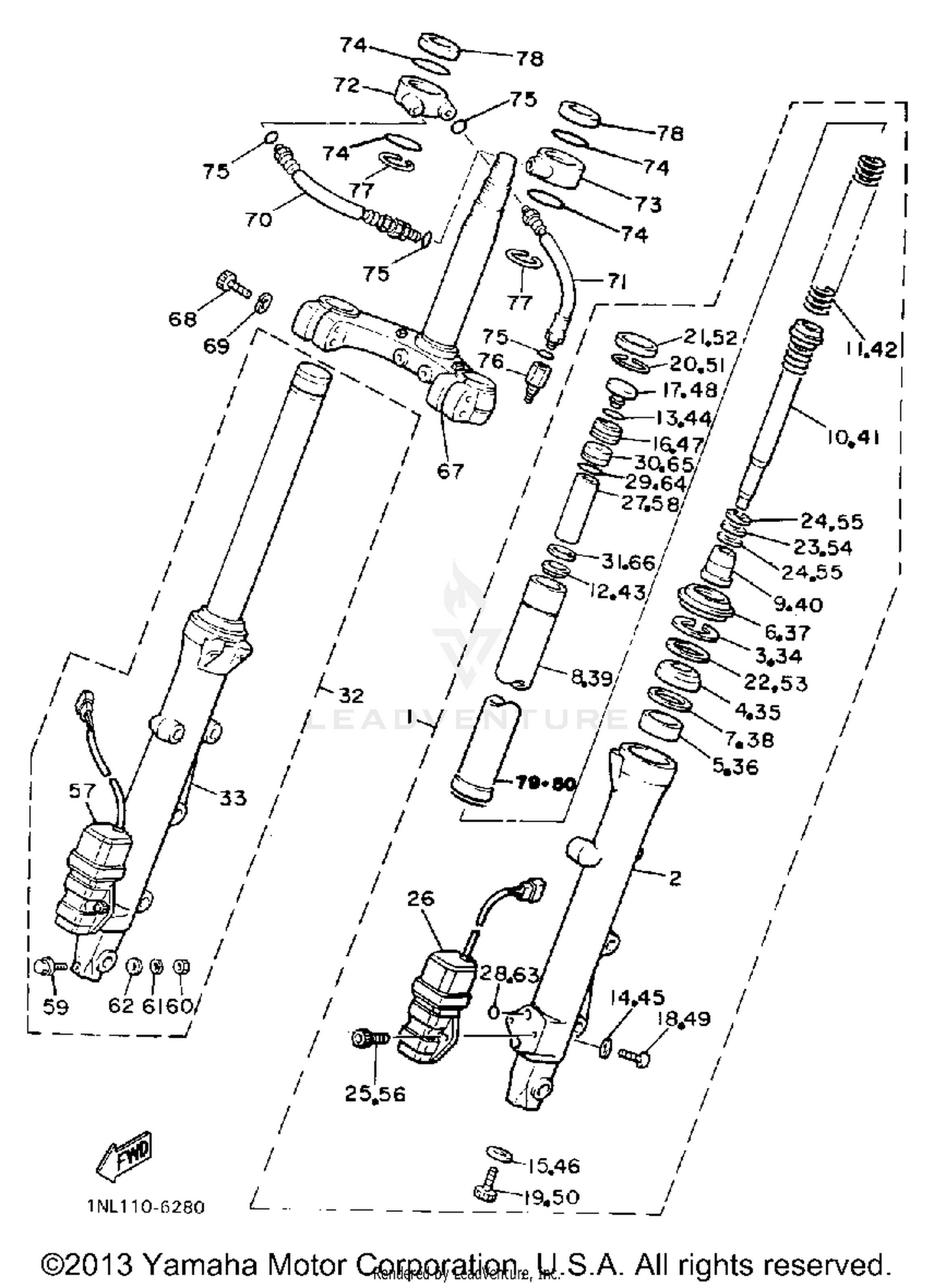

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L
1NL-23102-00-00
|
$588.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
1NL-23126-00-00
|
$307.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
26H-23156-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
1NL-23145-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
3JJ-23125-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
26H-23144-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING UPPER
26H-23149-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
INNER TUBE COMP. 1
3JJ-23110-00-00
|
$244.99 | ||
|
Unavailable |
|||
|
#9
SPINDLE, taper
26H-23173-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#10
CYLINDER, FRTFRK FRONT FORK
2WR-23170-00-00
|
$226.99 | ||
|
Unavailable |
|||
|
#11
SPRING, front fork
41R-23141-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#12
SEAT, SPRING UPPER
1FK-23142-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#13
O-RING
26H-23147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
2K8-23158-L0-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, cap
1NL-23111-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#17
CAP, front fork
26H-23168-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
3R4-23181-L0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING, snap
26H-23153-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#21
GASKET
26H-23163-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#22
WASHER, oil seal
26H-23146-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#23
WASHER
26H-2319L-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#24
SPRING, valve
26H-2319M-00-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
22N-23346-00-00
Superseded by 91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
MODULATOR ASSEMBLY 1 ASS''Y 1
1NL-2310E-00-00
|
$240.99 | ||
|
Unavailable |
|||
|
#27
SPACER
1NL-2316E-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#28
O-RING
1NL-23147-00-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
1NL-23188-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#30
CAP
1NL-2319U-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#31
O-RING
1NL-23188-10-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
FRONT FORK ASSEMBLY R
1NL-23103-00-00
|
$588.99 | ||
|
Unavailable |
|||
|
#33
TUBE, OUTER 2
1NL-23136-00-00
|
$265.99 | ||
|
Unavailable |
|||
|
#34
RING, SNAP
26H-23156-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
OIL SEAL
1NL-23145-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#36
METAL, SLIDE 1
3JJ-23125-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#37
SEAL, DUST
26H-23144-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#38
WASHER, SPRING UPPER
26H-23149-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#39
INNER TUBE COMP. 1
3JJ-23110-00-00
|
$244.99 | ||
|
Unavailable |
|||
|
#40
SPINDLE, taper
26H-23173-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#41
CYLINDER, FRTFRK FRONT FORK
2WR-23170-00-00
|
$226.99 | ||
|
Unavailable |
|||
|
#42
SPRING, front fork
41R-23141-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#43
SEAT, SPRING UPPER
1FK-23142-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#44
O-RING
26H-23147-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#45
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#46
GASKET
2K8-23158-L0-00
|
$14.99 | ||
|
Unavailable |
|||
|
#47
BOLT, cap
1NL-23111-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#48
CAP, front fork
26H-23168-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#49
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#50
BOLT, HEXAGON SOCKET HEAD
3R4-23181-L0-00
|
$5.49 | ||
|
Unavailable |
|||
|
#51
RING, snap
26H-23153-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#52
GASKET
26H-23163-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#53
WASHER, oil seal
26H-23146-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#54
WASHER
26H-2319L-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#55
SPRING, valve
26H-2319M-00-00
|
$3.90 | ||
|
Unavailable |
|||
|
#56
BOLT, HEXAGON SOCKET HEAD
22N-23346-00-00
Superseded by 91314-06016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#57
MODULATOR ASSEMBLY 1 ASS''Y
1NL-2310E-00-00
|
$240.99 | ||
|
Unavailable |
|||
|
#58
SPACER
1NL-2316E-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#59
BOLT 2
1NL-23356-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#60
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#61
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#63
O-RING
1NL-23147-00-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Unavailable |
|||
|
#64
O-RING
1NL-23188-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#65
CAP
1NL-2319U-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#66
O-RING
1NL-23188-10-00
|
$6.49 | ||
|
Unavailable |
|||
|
#67
UNDER BRACKET COMP
2WR-23340-01-00
|
$511.99 | ||
|
Unavailable |
|||
|
#68
BOLT, HEXAGON SOCKET HEAD
91311-08035-00
Superseded by 91314-08035-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#69
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#70
HOSE ASY
26H-2318J-00-00
|
|||
|
Unavailable |
|||
|
#
HOSE ASSEMBLY
31M-2318J-00-00
|
$208.99 | ||
|
Unavailable |
|||
|
#71
HOSE, air 2
1NL-2318K-00-00
|
$119.99 | ||
|
Unavailable |
|||
|
#72
JOINT, air 2
26H-2319A-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#73
JOINT, air 1
26H-2318A-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#74
O-RING
26H-23188-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#75
O-RING
3J2-23147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#76
CONNECTOR
31M-2318E-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#77
RING, snap
26H-23153-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#78
GASKET
26H-23163-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#79
PISTON, front fork
3JJ-23171-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
PISTON, front fork
3JJ-23171-00-00
|
$42.99 | ||
|
Unavailable |
|||
