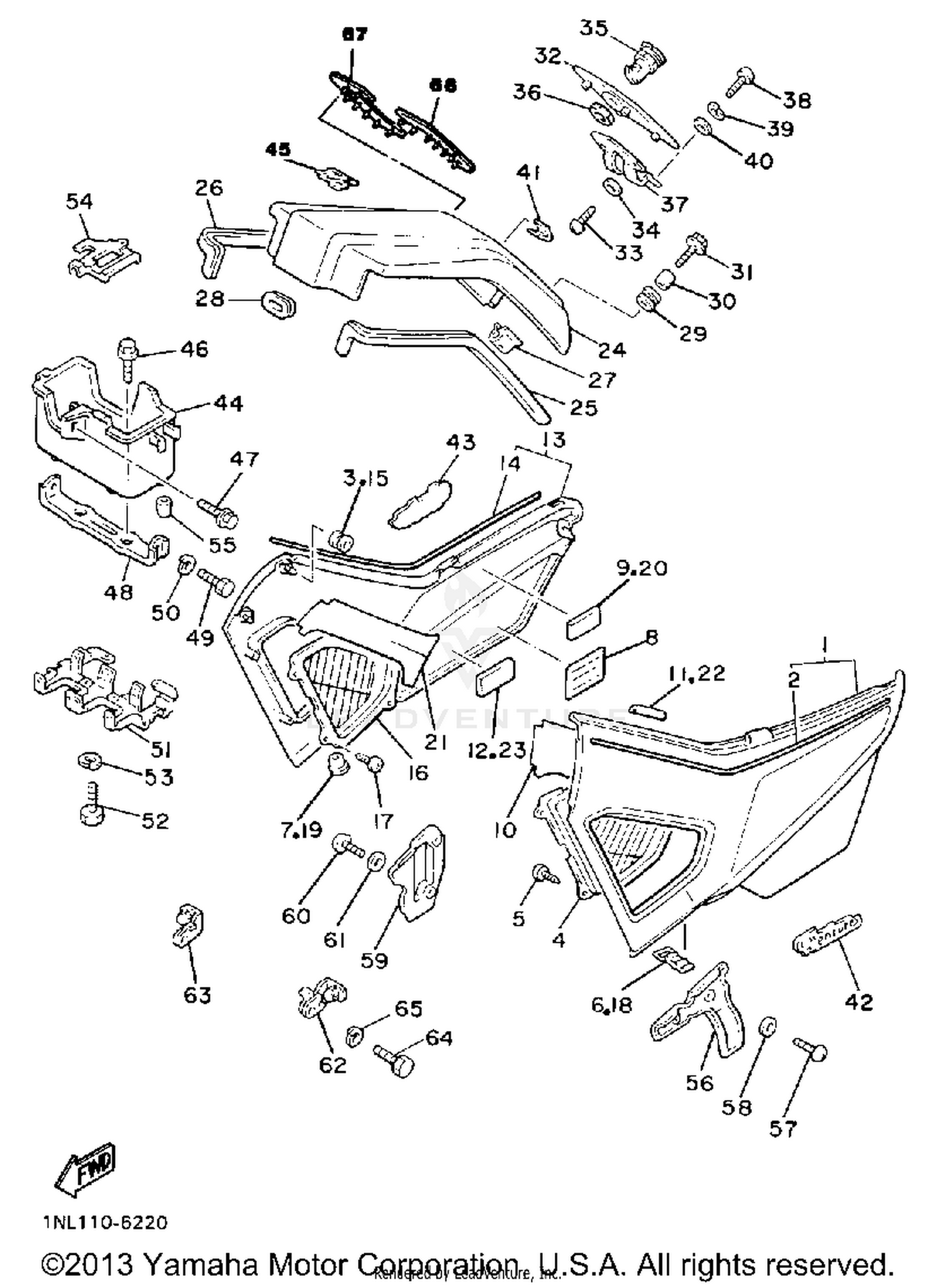

Side Cover Diagram

Item MSRP Qty
#1 COVER, SIDE 1
1NL-Y2171-21-4X
 $292.99
Unavailable
# COVER, SIDE 1
1NL-Y2171-01-1X
 $298.99
Unavailable
# COVER, SIDE 1
1NL-Y2171-11-2X
 $295.99
Unavailable
# COVER, SIDE 1
1NL-Y2171-31-5X
 $292.99
Unavailable
#2 GRAPHIC
1NL-2173E-20-00
 $22.99
Unavailable
# GRAPHIC
1NL-2173E-00-00
 $24.99
Unavailable
# GRAPHIC
1NL-2173E-10-00
 $24.99
Unavailable
# GRAPHIC
1NL-2173E-30-00
 $22.99
Unavailable
#3 GROMMET
90480-13398-00
Superseded by 90480-13014-00
 $7.49
Available to order.
Add to View Price
#4 GRILL, side cover 1
54K-2171Y-02-00
 $218.99
Unavailable
#5 TAPPING SCREW
90164-04006-00
 $5.49
Available to order.
Add to View Price
#6 BAND
41R-2179E-00-00
 $23.99
Unavailable
#7 GROMMET
90480-12355-00
 $6.49
Available to order.
Add to View Price
#8 PLATE, SPEC
1NL-21683-60-00
 $9.49
Unavailable
#9 DAMPER, PLATE
41R-21717-00-00
Superseded by 90520-10021-00
 $1.95
Available to order.
Add to View Price
#10 LINING, side cover 1
26H-2171J-00-00
 $91.99
Unavailable
#11 MOLE, side cover 3
26H-2171N-00-00
 $8.99
Unavailable
#12 DAMPER, PLATE
41R-21717-00-00
Superseded by 90520-10021-00
 $1.95
Unavailable
#13 COVER, SIDE 2
1NL-Y2172-01-1X
 $298.99
Unavailable
# COVER, SIDE 2
1NL-Y2172-21-4X
 $292.99
Unavailable
# COVER, SIDE 2
1NL-Y2172-11-2X
 $298.99
Unavailable
# COVER, SIDE 2
1NL-Y2172-31-5X
 $295.99
Unavailable
#14 GRAPHIC
1NL-2173F-00-00
 $25.99
Unavailable
# GRAPHIC
1NL-2173F-20-00
 $16.49
Unavailable
# GRAPHIC
1NL-2173F-10-00
 $24.99
Unavailable
# GRAPHIC
1NL-2173F-30-00
 $16.49
Unavailable
#15 GROMMET
90480-13398-00
Superseded by 90480-13014-00
 $7.49
Unavailable
#16 GRILL, side cover 2
54K-2172Y-02-00
 $192.99
Unavailable
#17 TAPPING SCREW
90164-04006-00
 $5.49
Unavailable
#18 BAND
41R-2179E-00-00
 $23.99
Unavailable
#19 GROMMET
90480-12355-00
 $6.49
Unavailable
#20 DAMPER, PLATE
41R-21717-00-00
Superseded by 90520-10021-00
 $1.95
Unavailable
#21 LINING, side cover 2
26H-2171K-00-00
 $56.99
Unavailable
#22 MOLE, side cover 3
26H-2171N-00-00
 $8.99
Unavailable
#23 DAMPER, PLATE
41R-21717-00-00
Superseded by 90520-10021-00
 $1.95
Unavailable
#24 COVER, TOP
1NL-2171A-00-KE
 $195.99
Unavailable
# COVER, TOP
1NL-2171A-00-EN
 $195.99
Unavailable
# COVER, TOP
1NL-2171A-00-NN
 $187.99
Unavailable
# COVER, TOP
1NL-2171A-00-TL
 $199.99
Unavailable
#25 MOLE, side cover 1
26H-2171L-00-00
 $37.99
Unavailable
#26 MOLE, side cover 2
26H-2171M-00-00
 $68.99
Unavailable
#27 CLIP
90468-03135-00
 $7.49
Unavailable
#28 DAMPER
26H-21747-00-00
 $14.49
Unavailable
#29 GROMMET
90480-12067-00
 $6.49
Available to order.
Add to View Price
#30 COLLAR
90387-053H3-00
 $2.10
Available to order.
Add to View Price
#31 BOLT, WITH WASHER
90119-05001-00
 $7.49
Available to order.
Add to View Price
#32 LID
26H-2177E-00-KE
 $91.99
Unavailable
# LID
26H-2177E-00-EN
 $85.99
Unavailable
# LID
26H-2177E-00-NN
 $91.99
Unavailable
# LID
26H-2177E-00-TL
 $70.99
Unavailable
#33 SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
 $0.60
Unavailable
#34 WASHER, PLAIN
92990-05200-00
 $4.65
Available to order.
Add to View Price
#35 SIDE CVR LOCK ASSEMBLY
54K-21780-01-00
 $109.99
Unavailable
#36 NUT
90170-22187-00
 $8.49
Available to order.
Add to View Price
#37 HINGE
26H-21796-01-00
 $69.99
Unavailable
#38 SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
 $4.45
Available to order.
Add to View Price
#39 WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
 $7.49
Available to order.
Add to View Price
#40 WASHER
92906-05200-00
Superseded by 92907-05200-00
 $4.20
Available to order.
Add to View Price
#41 SPRING, plate
26H-2177R-00-00
 $4.10
Unavailable
#42 EMBLEM 4 (26H-21784-00)
26H-21783-00-00
 $37.99
Unavailable
#43 EMBLEM 4 (26H-21784-00)
26H-21783-00-00
 $37.99
Unavailable
#44 BOX, BATTERY
26H-2177G-00-00
 $13.36
Unavailable
#45 EMBLEM 2
31M-21782-01-00
 $27.99
Unavailable
#46 BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
 $6.49
Available to order.
Add to View Price
#47 BOLT, WITH WASHER
90119-06060-00
Superseded by 90119-06226-00
 $7.49
Available to order.
Add to View Price
#48 BRACKET 3
26H-2172M-01-00
 $28.99
Unavailable
#49 BOLT
97011-08016-00
Superseded by 97017-08016-00
 $7.49
Available to order.
Add to View Price
#50 WASHER, SPRING
92990-08100-00
 $5.49
Available to order.
Add to View Price
#51 PLATE, bridge
26H-21243-01-00
 $56.99
Unavailable
#52 BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
 $2.60
Available to order.
Add to View Price
#53 WASHER, SPRING
92995-06100-00
 $3.20
Available to order.
Add to View Price
#54 PLATE
26H-2176E-00-00
 $5.64
Unavailable
#55 PLUG, BLIND
16G-13569-00-00
 $7.49
Available to order.
Add to View Price
#56 COVER, side 3
41R-21731-00-00
 $19.49
Unavailable
#57 SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
 $4.45
Unavailable
#58 WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
 $3.55
Available to order.
Add to View Price
#59 COVER, side 4
41R-21741-00-00
 $19.49
Unavailable
#60 SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
 $4.45
Unavailable
#61 WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
 $3.55
Unavailable
#62 BRACKET, horn
26H-2134K-00-00
 $20.99
Unavailable
#63 BRACKET, horn 2
26H-2134L-00-00
 $16.49
Unavailable
#64 BOLT
97016-08016-00
Superseded by 97017-08016-00
 $7.49
Unavailable
#65 WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
 $7.49
Available to order.
Add to View Price
#66 DAMPER, locating 3
26H-2177M-00-00
 $12.99
Unavailable
#67 DAMPER, locating 4
26H-2177N-00-00
 $9.99
Unavailable
