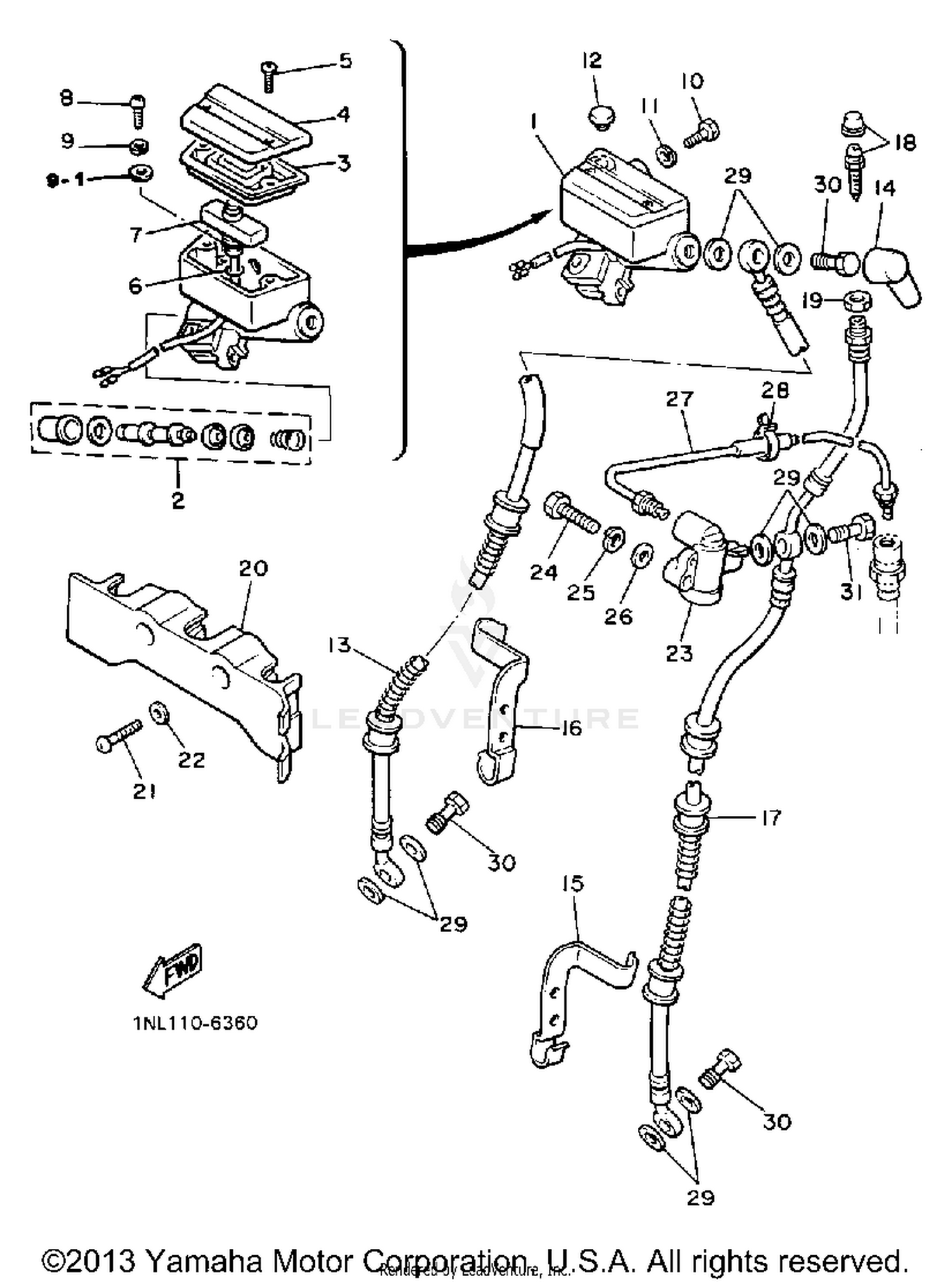

Front Master Cylinder 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASS''Y
1NL-25850-01-00
|
$264.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
4H7-W0041-50-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, reservoir
26H-25854-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, reservoir
26H-25852-01-00
|
$44.99 | ||
|
Unavailable |
|||
|
#5
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-08493-00
|
$6.49 | ||
|
Unavailable |
|||
|
#7
LEAD SWITCH ASS''Y
26H-85702-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#8
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER,IN.TOOTH
92902-04300-00
Superseded by 92907-04300-00
|
$1.15 | ||
|
Unavailable |
|||
|
#10
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, BRAKE 1
1NL-25872-00-00
|
$73.81 | ||
|
Unavailable |
|||
|
#14
BOOT, MASTER CYLINDER
306-25862-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER,BRKE HOSE 1
26H-25875-00-00
Superseded by 26H-25875-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#16
HOLDER,BRKE HOSE 2
26H-25876-00-00
Superseded by 26H-25876-01-00
|
$3.30 | ||
|
Unavailable |
|||
|
#17
HOSE, BRAKE 2
1NL-25873-01-00
Superseded by 99999-02730-00
|
$238.99 | ||
|
Unavailable |
|||
|
#18
BLEED SCREW KIT
1NL-W0048-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95306-12600-00
Superseded by 95337-12600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, brake hose
26H-25886-01-00
|
$42.99 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
METERING VALVE ASS''Y
1NL-25940-00-00
|
$242.99 | ||
|
Unavailable |
|||
|
#24
BOLT,HEXAGON
97026-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#26
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#27
PIPE, brake
26H-25871-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#28
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, union
90401-10114-00
|
$4.50 | ||
|
Unavailable |
|||
