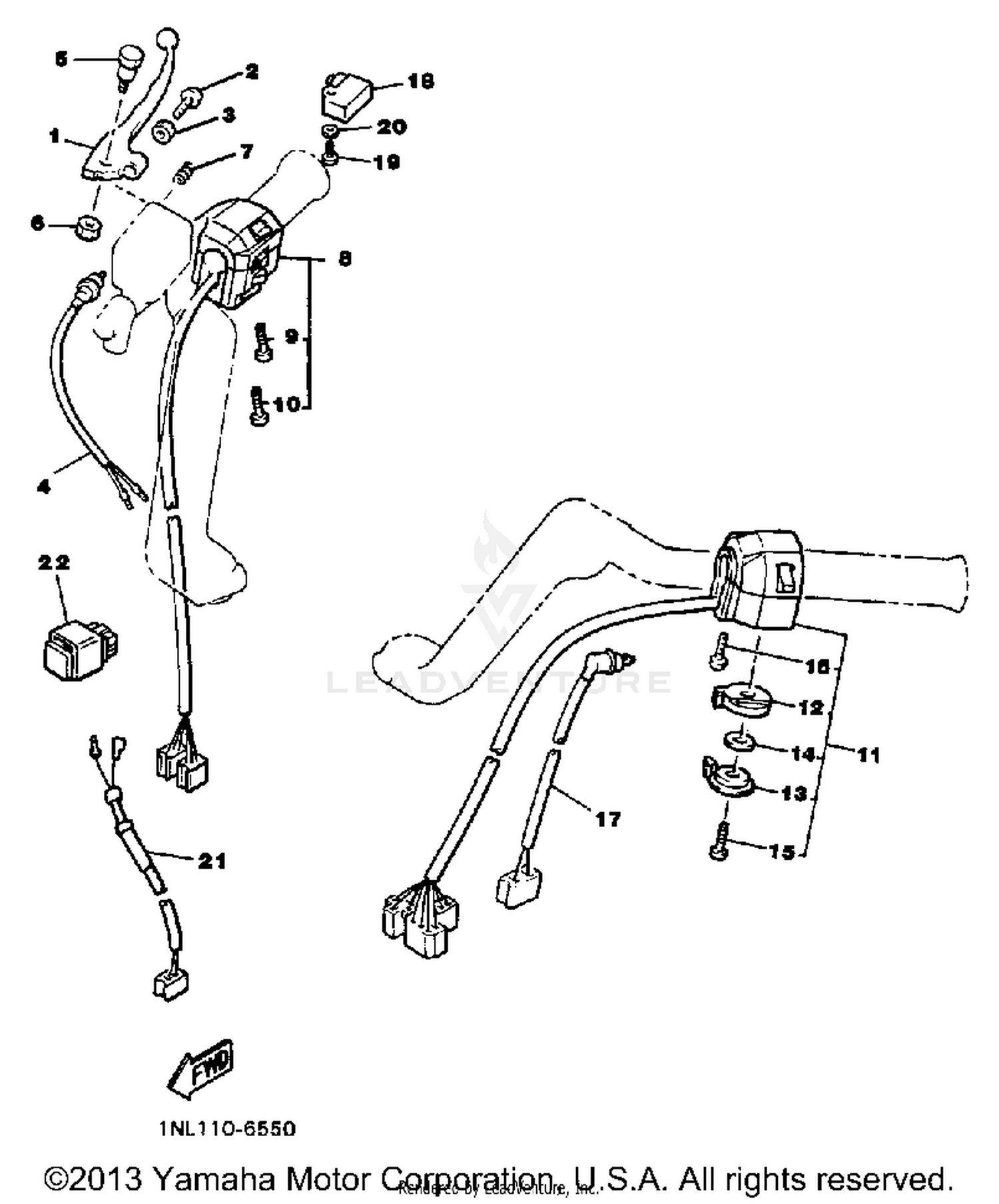

Handle Switch Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER 2 (26H-83922-01)
26H-83922-10-00
|
$43.99 | ||
|
Unavailable |
|||
|
#2
SCREW
90149-06131-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90170-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOP SWITCH ASSY (41V-83980-00)
41V-83980-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#5
BOLT
90109-06577-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-10510-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH, HANDLE 4
1NL-83972-50-00
|
$280.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98506-05040-00
Superseded by 98507-05040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98506-05060-00
|
$2.00 | ||
|
Unavailable |
|||
|
#11
SWITCH, HANDLE 4
1NL-83972-00-00
|
$329.99 | ||
|
Unavailable |
|||
|
#12
COVER, STARTER
10M-83942-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, STARTER
10M-83941-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
90209-10131-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
98506-06008-00
Superseded by 98517-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98506-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH (41V-82917-00)
41V-82917-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#18
UNAVAILABLE IN PRICE BOOKASS''Y
J45-83980-01-00
|
|||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
92906-04600-00
Superseded by 92907-04600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE, lead
1NL-82509-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
RELAY ASSY
25G-81950-01-00
Superseded by 25G-81950-02-00
|
$45.99 | ||
|
Unavailable |
|||
