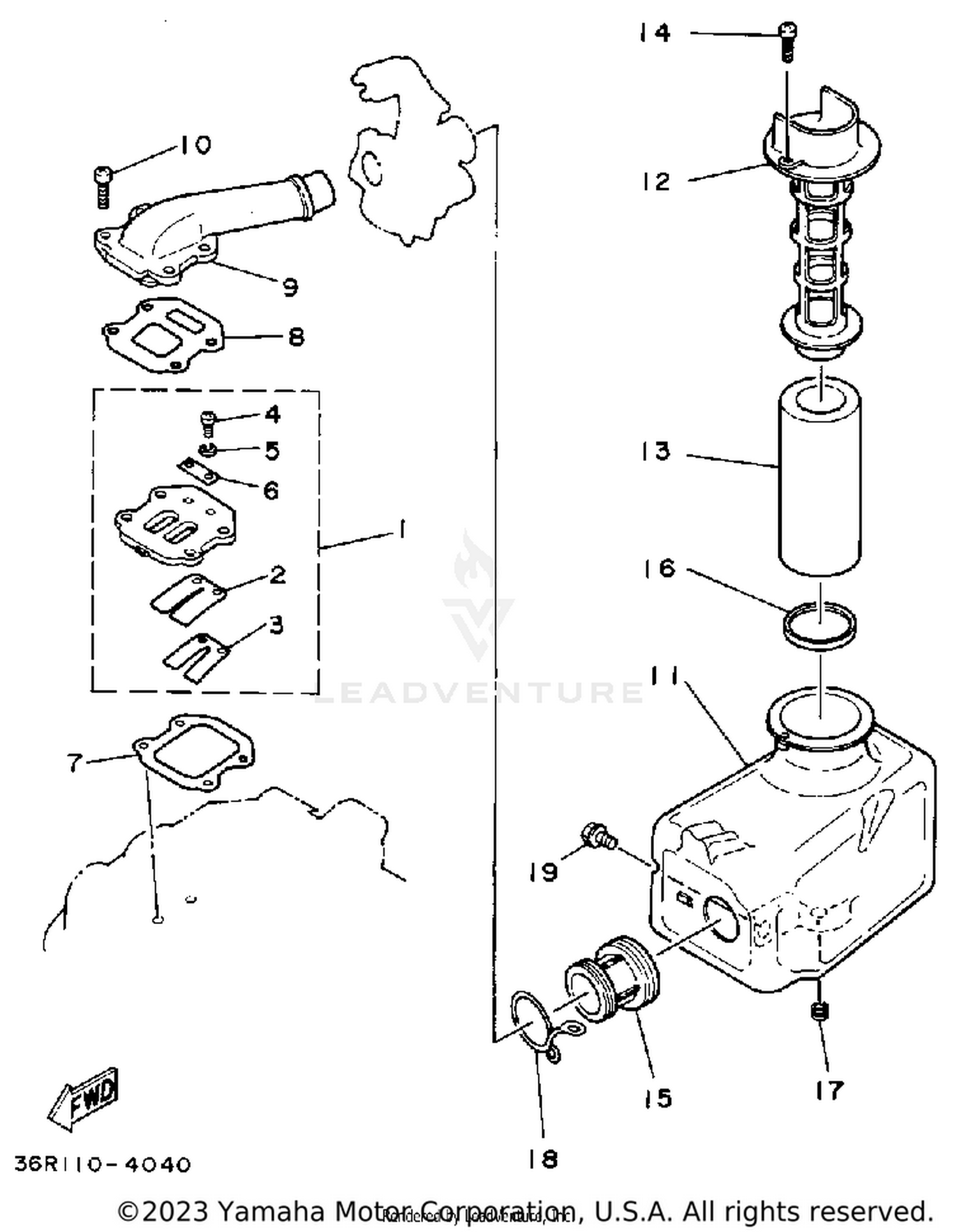

Air Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSY
3L5-13610-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REED, VALVE
3L5-13613-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
3L5-13616-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98580-03010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING (92901-03100-0
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, REED VALVE
3L5-13624-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, VALVE SEAT
3HK-13621-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, VALVE SEAT
3L5-13622-10-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
MANIFOLD, INTAKE
36R-13555-01-00
|
$32.70 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE, AIR CLEANER 1
36R-14411-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#12
CAP, CLEANER CASE 1
36R-14412-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#13
ELEMENT,AIR CLNR
36R-14451-00-00
Superseded by 36R-14451-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
97780-50125-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT, AIR CLNR 1
36R-14453-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND
36R-14455-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#17
GROMMET
90480-14100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
90467-20023-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, WITH WASHER
90119-06043-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
