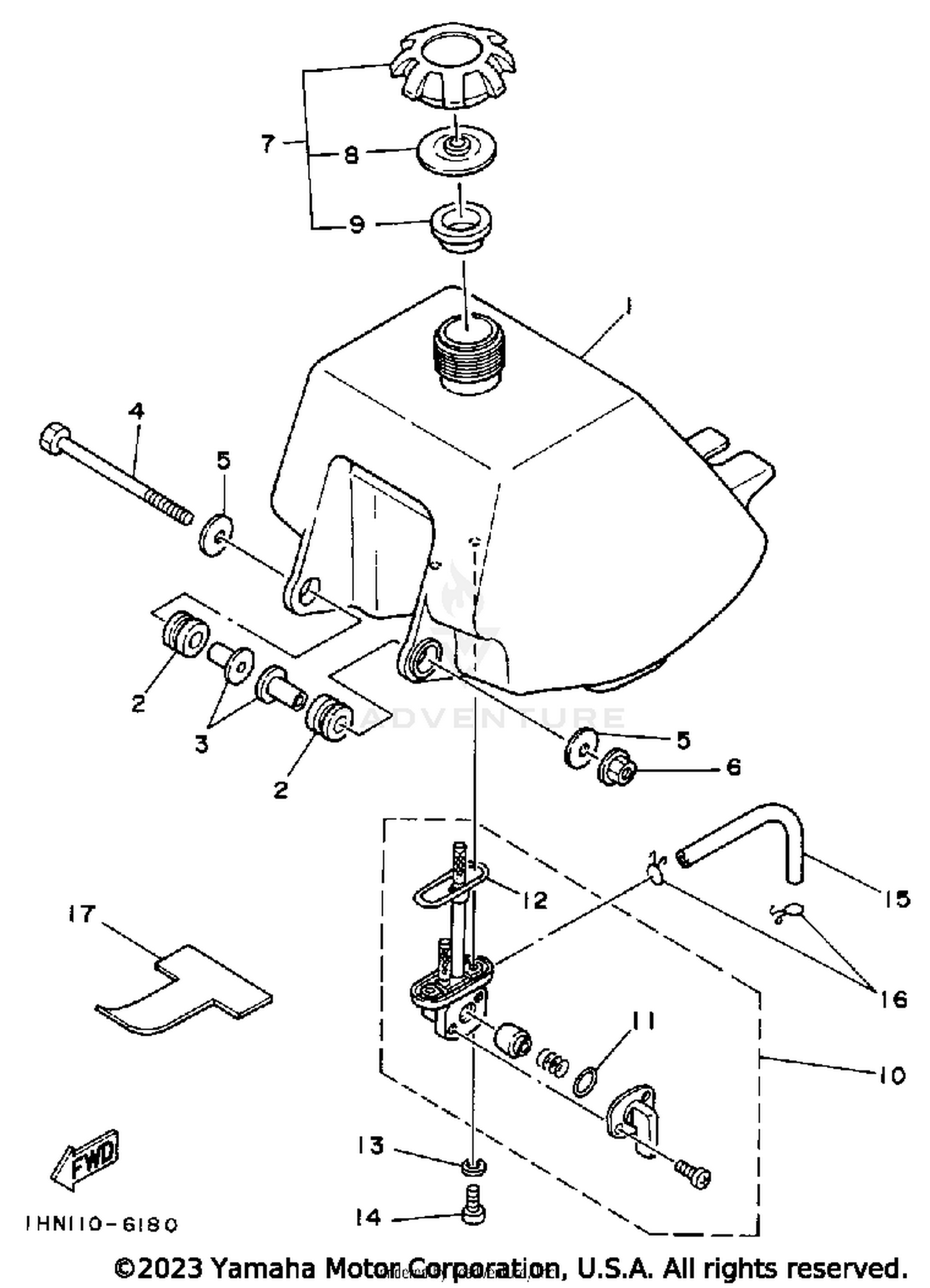

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
3NJ-24110-00-00
|
$130.99 | ||
|
Unavailable |
|||
|
#2
GROMMET
90480-18290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-066J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
97021-06125-00
Superseded by 95817-06125-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06697-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP ASSEMBLY
4X4-24610-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, PLATE 1
1L4-24615-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, PLATE 2
1L4-24616-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUEL COCK ASSEMBLY 1
36R-24500-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, COCK
4X8-24534-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE 5
90445-09085-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, SCISSOR
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 1
3R0-24181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
