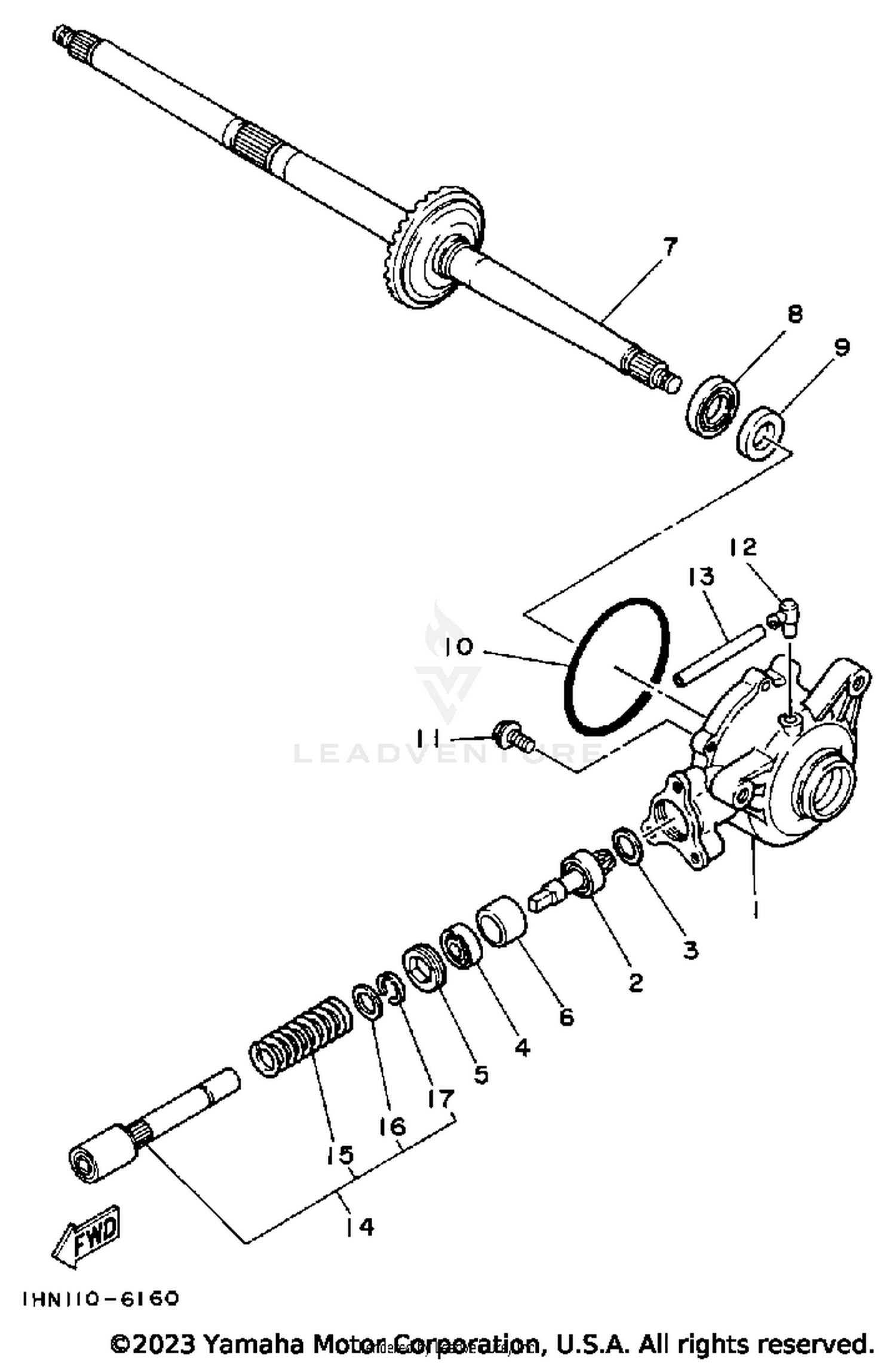

Drive Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, DR SHAFT
36R-46151-00-00
|
$104.99 | ||
|
Unavailable |
|||
|
#2
DRIVE PINION ASSEMBLY
36R-46120-01-00
|
$180.99 | ||
|
Unavailable |
|||
|
#3
SHIM, DRIVE PINION
3L5-46127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20111-00
Superseded by 93306-20119-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20110-00
Superseded by 93306-20119-00
|
$30.99 | ||
|
Unavailable |
|||
|
#5
SCREW
90149-35133-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER
90560-25185-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING GEAR ASSEMBLY (36R-46110-0
36R-46110-01-00
|
$396.99 | ||
|
Unavailable |
|||
|
#8
BEARING
93316-00503-00
Superseded by 93316-00501-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL (FPJ 25-44-8 TS)
93102-25311-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93211-07492-00
|
$9.99 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
95811-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
BREATHER
583-15371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
90445-07769-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
SHAFT DRIVE ASSEMBLY (3L5-46171
15L-46171-00-00
|
$258.99 | ||
|
Unavailable |
|||
|
#15
SPRING, COMPRESSION
90501-60556-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
RETAINER, SPRING
15L-18473-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93440-17138-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
