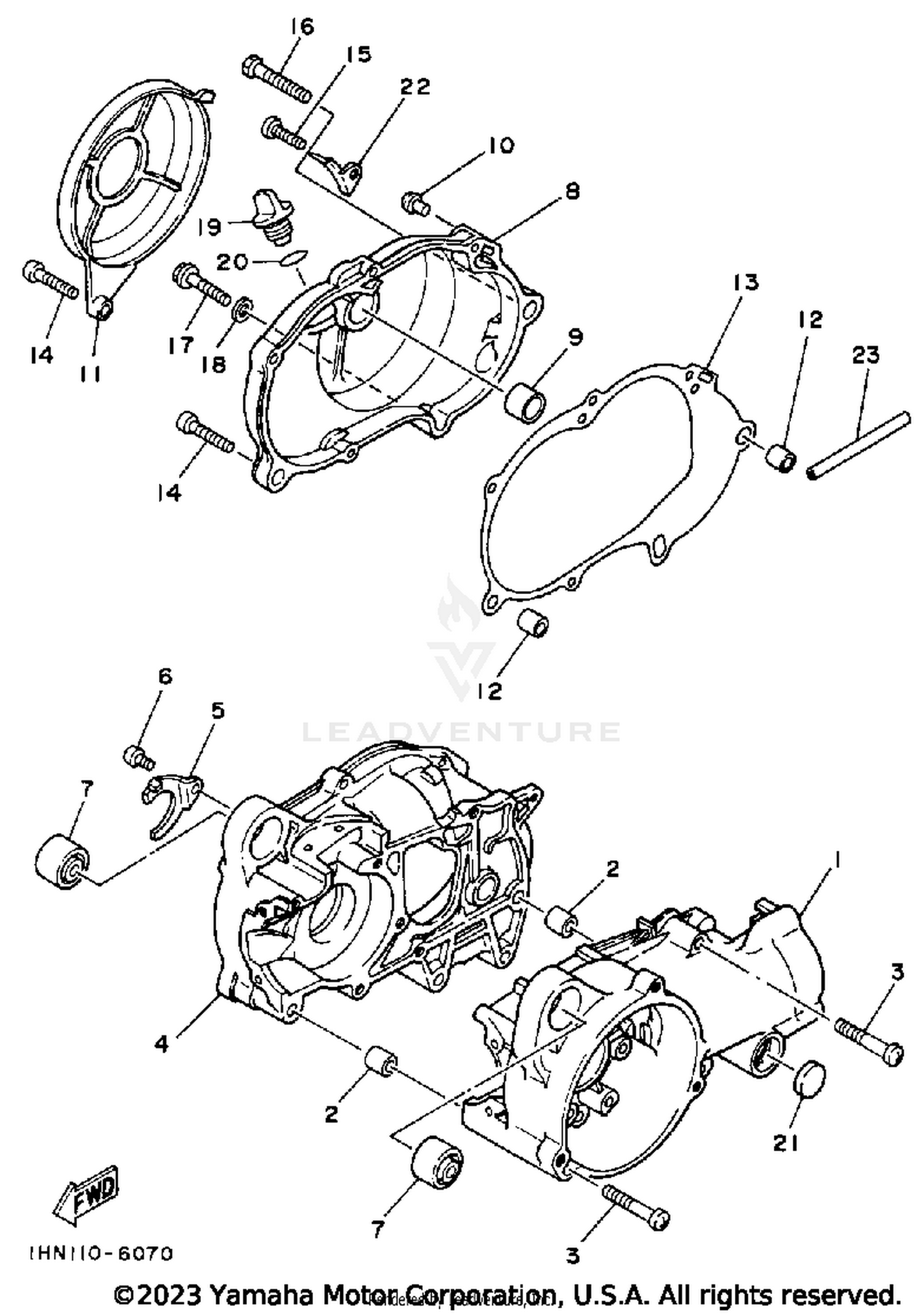

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
4X4-15111-00-00
|
$240.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD (92503-06045-00
98580-06545-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CRANKCASE 2
3L5-15121-00-00
|
$191.99 | ||
|
Unavailable |
|||
|
#5
HOLDER
3L5-15128-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER 1
2E9-15316-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CRANKCASE 2
4X4-15421-00-00
Superseded by 4X4-15421-02-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH 1
3L5-17112-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG
90338-07011-00
Superseded by 90338-07124-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PROTECTOR
4X4-15491-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Unavailable |
|||
|
#13
GASKET, CRANKCASE COVER 1
3L5-15451-10-00
Superseded by 3L5-15451-12-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98506-06035-00
Superseded by 98507-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, HEXAGON
90153-06053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-08103-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG, OIL
4J2-15363-00-00
Superseded by 4J2-15363-10-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG
90338-26136-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP 2
4X4-15484-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE
90445-05773-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
