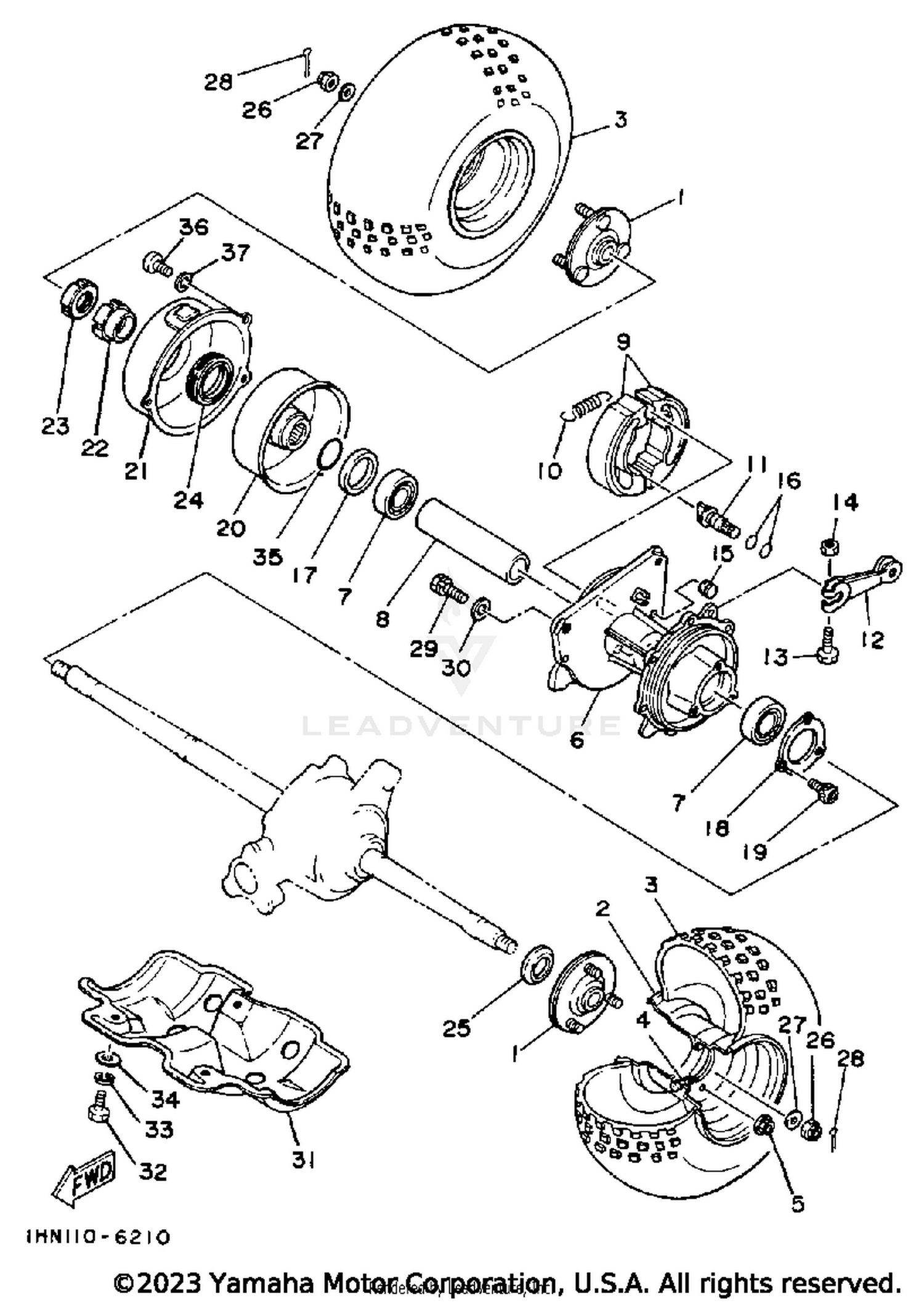

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, WHEEL
36R-25383-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#2
WHEEL, FRONT
36R-25180-01-35
Superseded by 3NJ-25180-00-35
|
$102.99 | ||
|
Unavailable |
|||
|
#3
AT15X7-6 DUN KT465A
94107-063E9-00
Superseded by 94107-063E8-00
|
$76.99 | ||
|
Unavailable |
|||
|
#4
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SPECL SHAPE
90179-08491-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB, REAR
36R-25311-00-00
|
$136.99 | ||
|
Unavailable |
|||
|
#7
BEARING
93306-00519-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER, BEARING
90560-25307-00
|
$15.99 | ||
|
Unavailable |
|||
|
#9
BRAKESHOE SET-2PCS
36R-W2536-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#10
SPRING, TENSION
90506-18288-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAMSHAFT
5G3-25351-02-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, CAMSHAFT
36R-25355-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#13
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-12790-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93102-35318-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, COVER
36R-46114-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
91311-06016-00
Superseded by 91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DRUM BRAKE
36R-2531E-00-00
|
$132.99 | ||
|
Unavailable |
|||
|
#21
COVER 1
36R-25715-01-00
|
$18.99 | ||
|
Unavailable |
|||
|
#22
NUT, SPEC''L SHAPE
90179-23502-00
|
$16.99 | ||
|
Unavailable |
|||
|
#23
NUT, SPEC''L SHAPE
90179-23503-00
|
$15.99 | ||
|
Unavailable |
|||
|
#24
OIL SEAL
93102-35349-00
Superseded by 93102-35191-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, HUB DUST
36R-25367-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, CASTLE
90171-12039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-126A7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN. COTTER
91401-25030-00
Superseded by 91490-25030-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, WITH WASHER
90119-10078-00
|
$6.49 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-104G0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER
36R-2219X-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#32
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING
93210-25642-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
