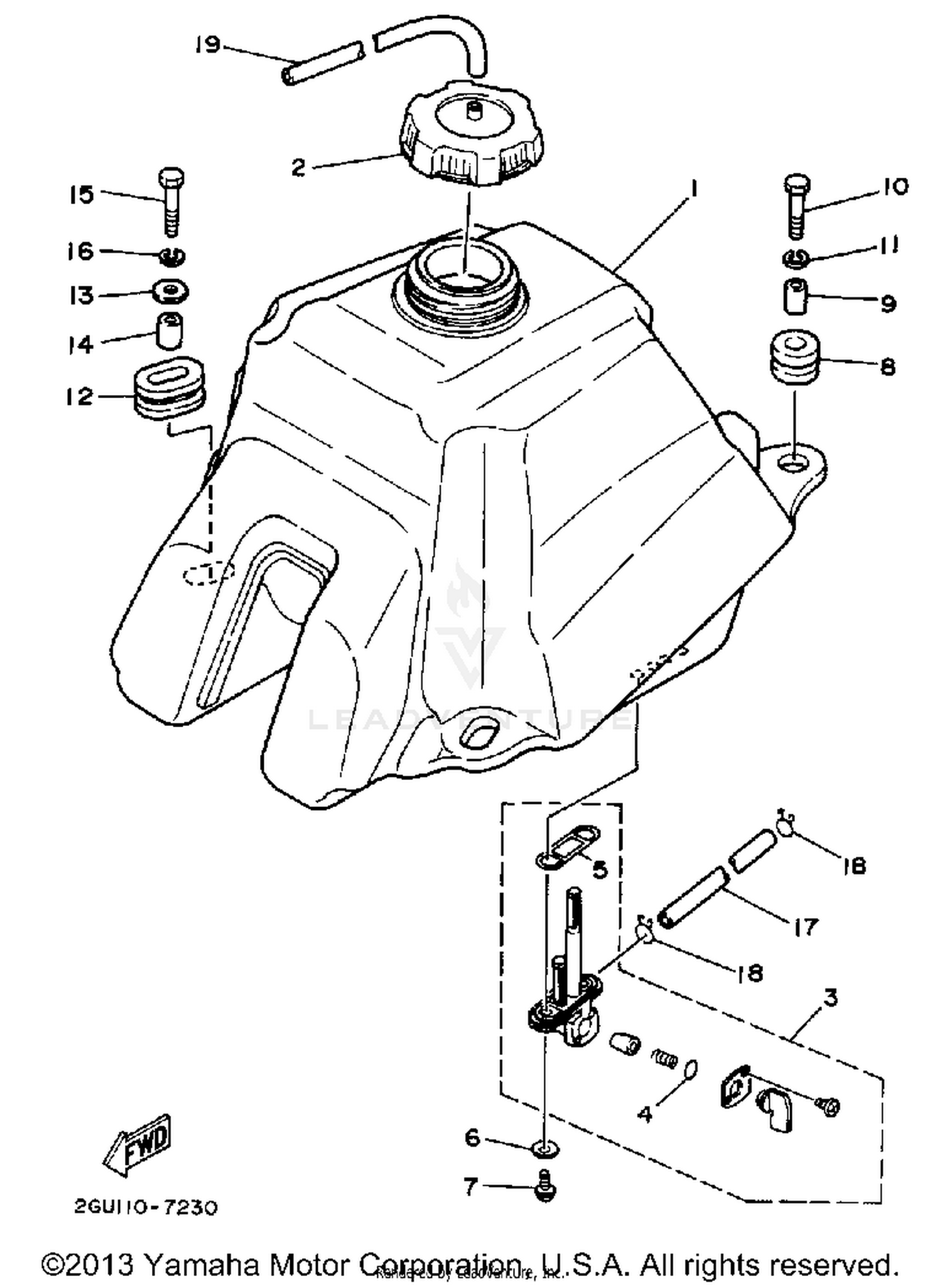

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
2GU-24110-00-00
|
$244.99 | ||
|
Unavailable |
|||
|
#2
CAP ASSY
1UY-24610-00-00
Superseded by 5MV-24610-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUEL COCK ASSY 1
2GU-24500-01-00
Superseded by 2GU-24500-02-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, COCK
4X8-24534-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-18290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-066J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-01400-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-060L5-00
Superseded by 90201-06090-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Unavailable |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
HOSE (L166)
90445-13693-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
90467-11102-00
Superseded by 90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE (L675)
90445-09111-00
Superseded by 90445-090F6-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
