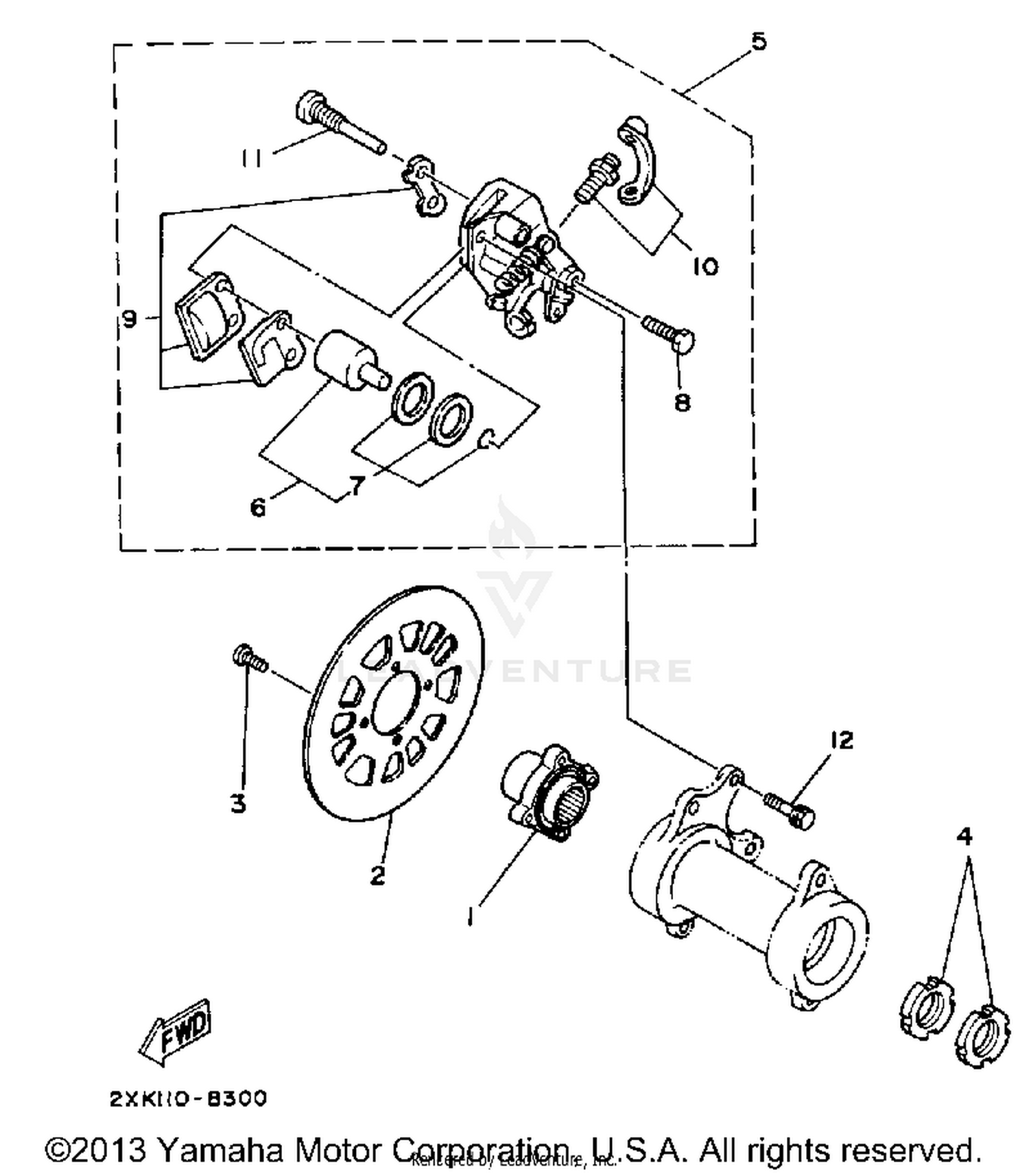

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, DISC
2GU-25712-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DISC, BRAKE
2GU-25831-51-00
Superseded by 2XJ-25831-50-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90109-08789-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90170-33376-00
Superseded by 90170-33011-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER ASSY, REAR 2
1UY-2580W-00-00
Superseded by 1UY-2580W-02-00
|
$590.99 | ||
|
Unavailable |
|||
|
#6
PISTON ASSY, CALIPER
1UY-W0057-50-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
1UY-W0047-50-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ADJUSTBOLT
1UY-25972-51-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE PAD KIT 2
1UY-W0046-00-00
Superseded by 1UY-W0046-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#10
BLEED SCREW KIT
36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PAD
1UY-25924-51-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-08211-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
