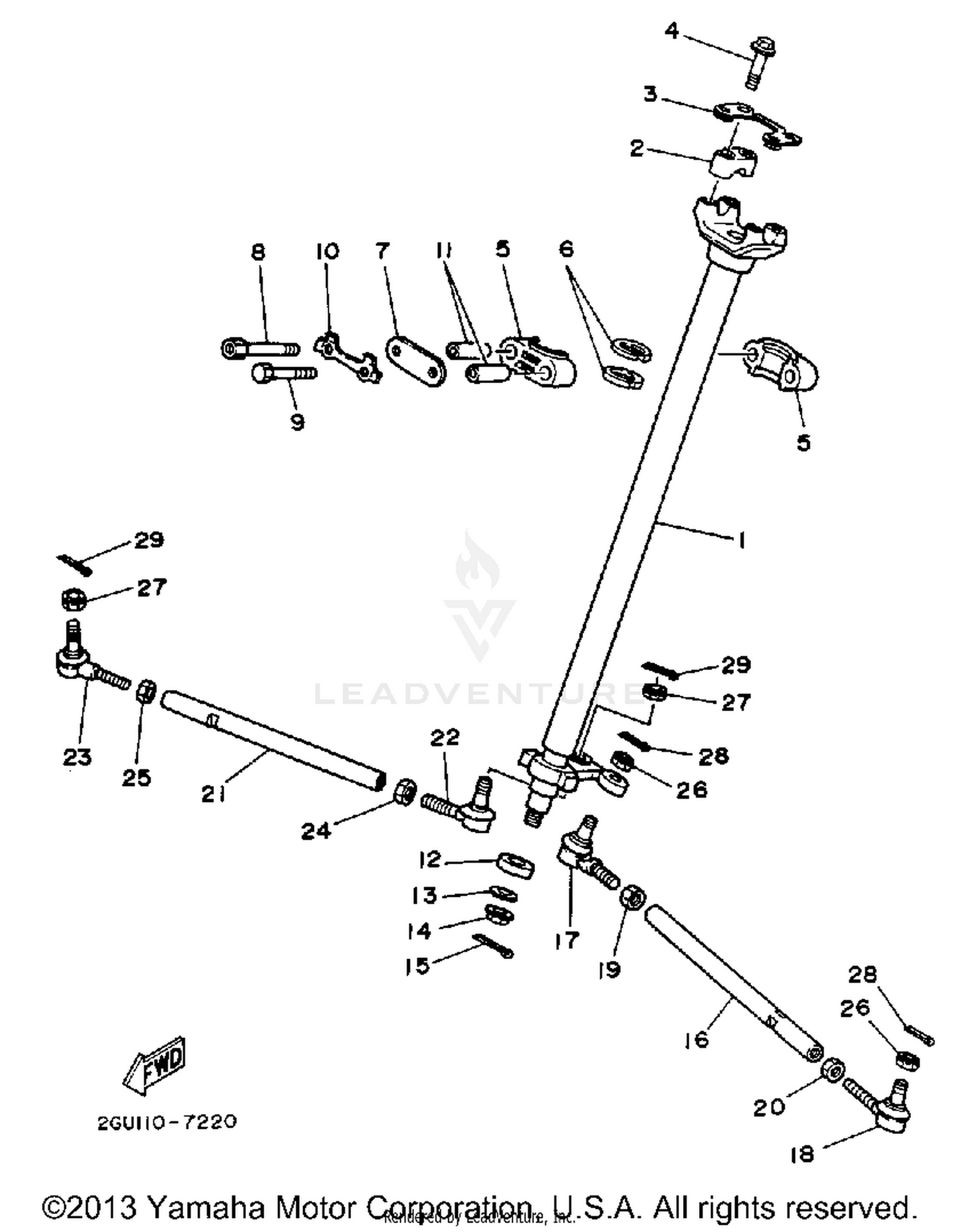

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLUMN, STEERING 2
2GU-23813-00-00
Superseded by 3GG-23813-20-00
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, HANDLE UPPER
1E6-23441-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY
2GU-2629K-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
95811-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLANE BEARING, STEERING
1UY-23812-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93112-31011-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, STEERING LOWER
2GU-23868-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (663)
97013-08060-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
90109-082E9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, LOCK 1
1UY-23894-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR (903-87090-R0-00)
90387-106T4-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-176R6-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
90185-10115-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD, TIE
2GU-23831-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT, UNIVERSAL 1
1UY-23841-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT, UNIVERSAL 2
1UY-23845-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90170-10186-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROD, TIE
2GU-23831-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#22
JOINT, UNIVERSAL 1
1UY-23841-01-00
|
$73.99 | ||
|
Unavailable |
|||
|
#23
JOINT, UNIVERSAL 2
1UY-23845-01-00
|
$73.99 | ||
|
Unavailable |
|||
|
#24
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Unavailable |
|||
|
#25
NUT
90170-10186-00
|
$9.49 | ||
|
Unavailable |
|||
|
#26
NUT, CASTLE
90171-10046-00
Superseded by 90171-10001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, CASTLE
90171-10046-00
Superseded by 90171-10001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#28
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#29
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
