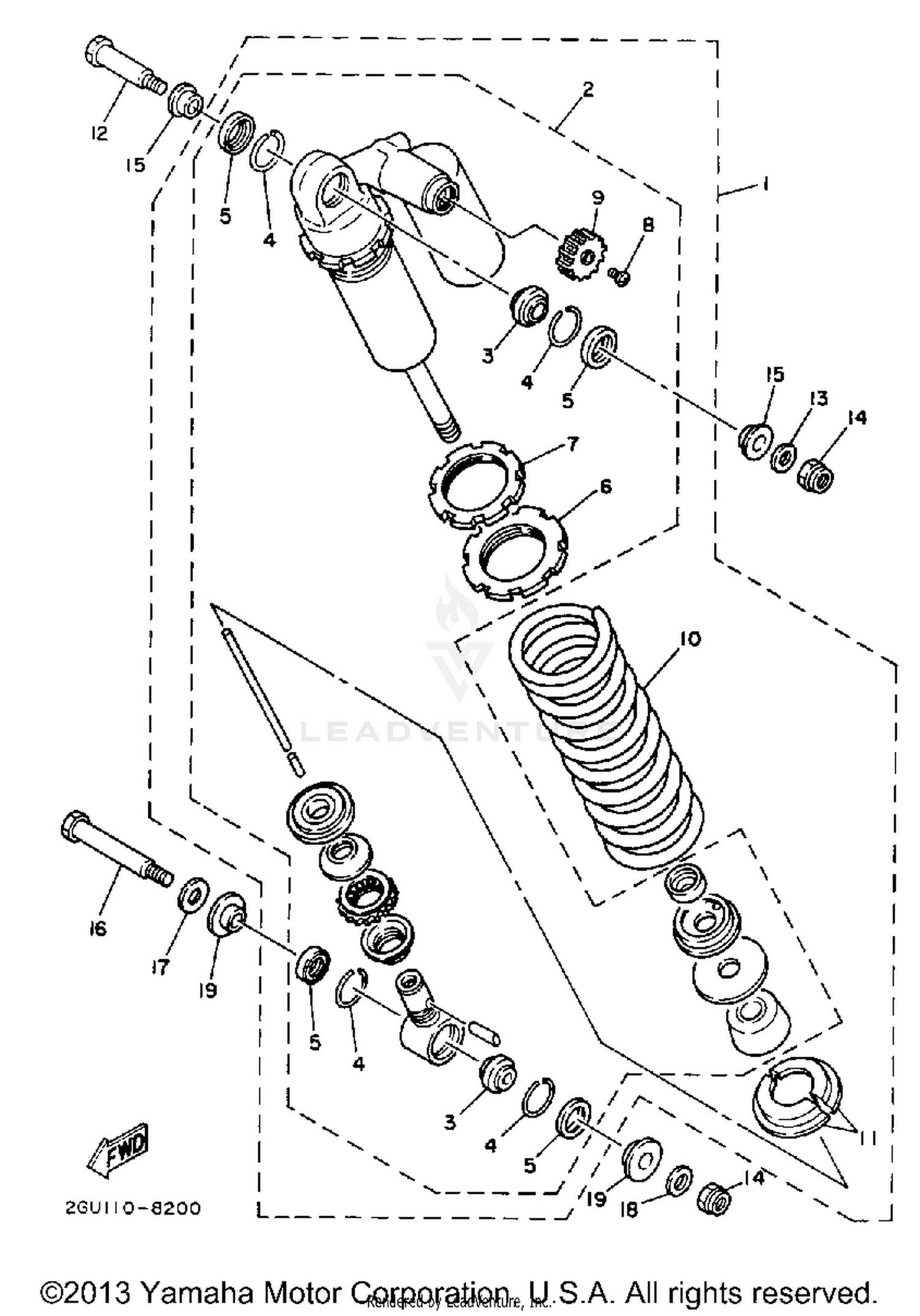

Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY,
3GG-22210-50-P0
Superseded by 3GG-22210-52-P0
|
$829.99 | ||
|
Unavailable |
|||
|
#2
DAMPER SUB ASSY
2GU-22201-00-00
Superseded by 3GG-22201-40-00
|
$879.99 | ||
|
Unavailable |
|||
|
#3
BEARING (93399-99934-00)
93399-99934-00
Superseded by 93399-999T3-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-30113-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93104-18077-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT, SPRING LOWER
38W-22223-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, COVER
38W-22215-00-00
Superseded by 1RK-22215-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
KNOB, CONTROL
39W-22464-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#10
SPRING
2GU-22212-00-6W
|
$183.99 | ||
|
Unavailable |
|||
|
#11
GUIDE, SPRING 1
22W-22214-01-00
Superseded by 3P6-22214-10-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90109-10704-00
|
$11.49 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-100F7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-127G8-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-102A6-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-120E6-00
Superseded by 90201-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-126H8-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
