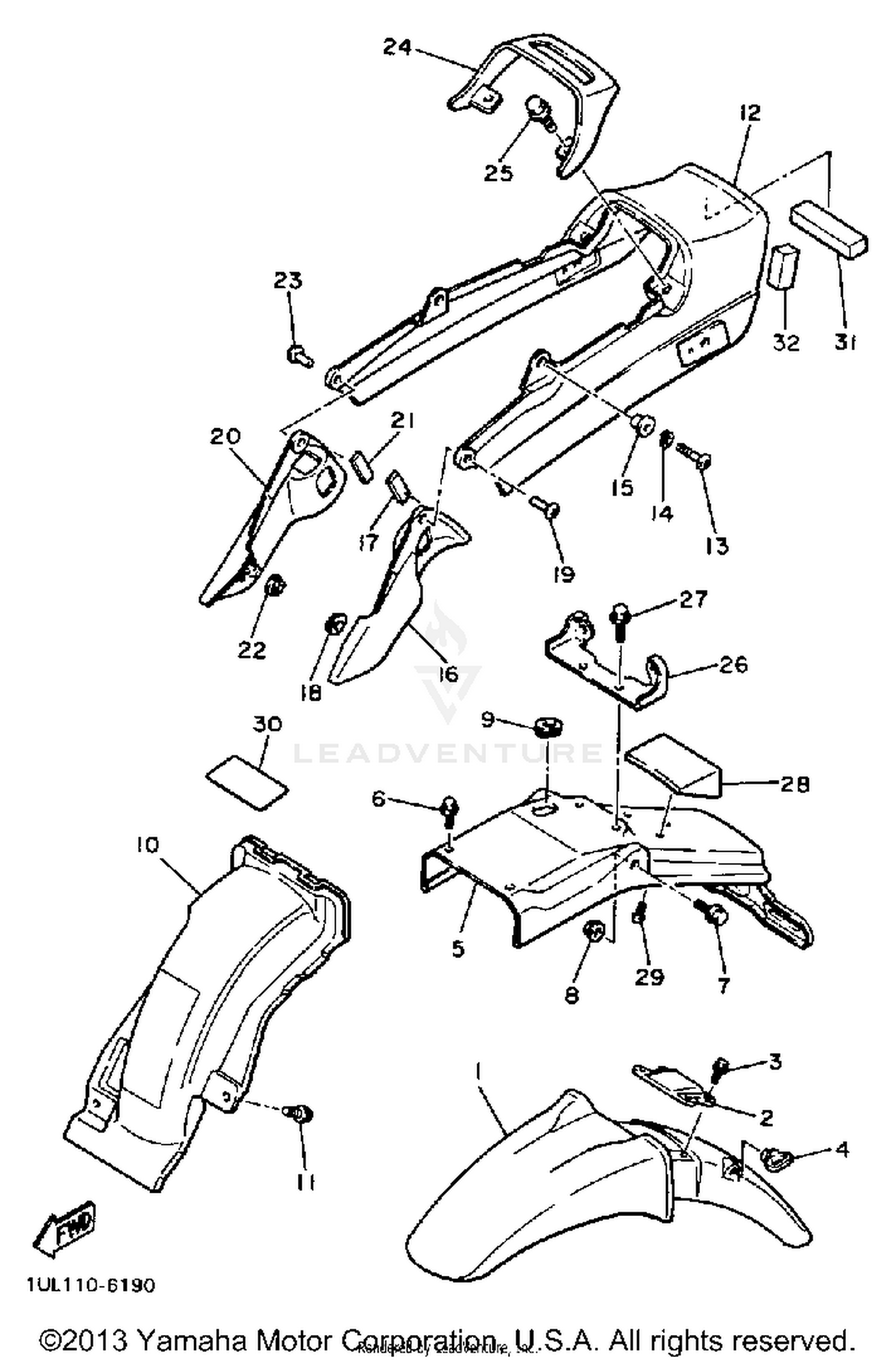

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
1UJ-21510-00-MW
|
$248.99 | ||
|
Unavailable |
|||
|
#
FENDER, FRONT
1UJ-21510-00-TF
Superseded by 1UJ-21510-00-E1
|
$248.99 | ||
|
Unavailable |
|||
|
#2
BRACE, FORK
1UJ-2313A-00-00
|
$91.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE (SMALL HEAD)
95023-06025-00
Superseded by 95024-06025-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, CABLE
1A8-21518-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, REAR
1UJ-21610-00-98
|
$237.99 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE
95811-06010-00
Superseded by 95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-15061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUARD, MUD
4G0-21629-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#11
BOLT, WITH WASHER
90119-06095-00
Superseded by 90119-06108-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, REAR FENDER
1UJ-21651-00-MW
|
$224.99 | ||
|
Unavailable |
|||
|
#
COVER, REAR FENDER
1UJ-21651-00-TF
|
$216.99 | ||
|
Unavailable |
|||
|
#13
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-062M9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, REAR FNDR.3
1UJ-2163E-00-MW
|
$88.99 | ||
|
Unavailable |
|||
|
#
COVER, REAR FNDR.3
1UJ-2163E-00-TF
|
$88.99 | ||
|
Unavailable |
|||
|
#17
DAMPER 2
1UJ-21639-00-00
Superseded by 1HX-28227-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
RIVET
90269-06046-00
Superseded by 90269-06001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, REAR FENDR3
1UJ-2163F-00-MW
|
$128.99 | ||
|
Unavailable |
|||
|
#
COVER, REAR FENDR3
1UJ-2163F-00-TF
|
$47.99 | ||
|
Unavailable |
|||
|
#21
DAMPER 2
1UJ-21639-00-00
Superseded by 1HX-28227-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
RIVET
90269-06046-00
Superseded by 90269-06001-00
|
$5.49 | ||
|
Unavailable |
|||
|
#24
STAY, REAR
1UF-21645-01-00
|
$359.99 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
95811-10025-00
Superseded by 95817-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET
1UJ-2161A-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
95811-06010-00
Superseded by 95812-06010-00
|
$2.80 | ||
|
Unavailable |
|||
|
#28
COVER, REAR FENDER
1UF-2163A-10-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
SCREW,TAPPING
97702-40608-00
Superseded by 97707-40608-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE, SPEC
1UJ-21683-70-00
|
$4.35 | ||
|
Unavailable |
|||
|
#
PLATE, SPEC
1UL-21687-70-00
|
$8.10 | ||
|
Unavailable |
|||
|
#31
DAMPER
1UJ-21649-00-00
|
$3.95 | ||
|
Unavailable |
|||
|
#32
DAMPER 1
1KT-21717-00-00
Superseded by 83R-14425-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
