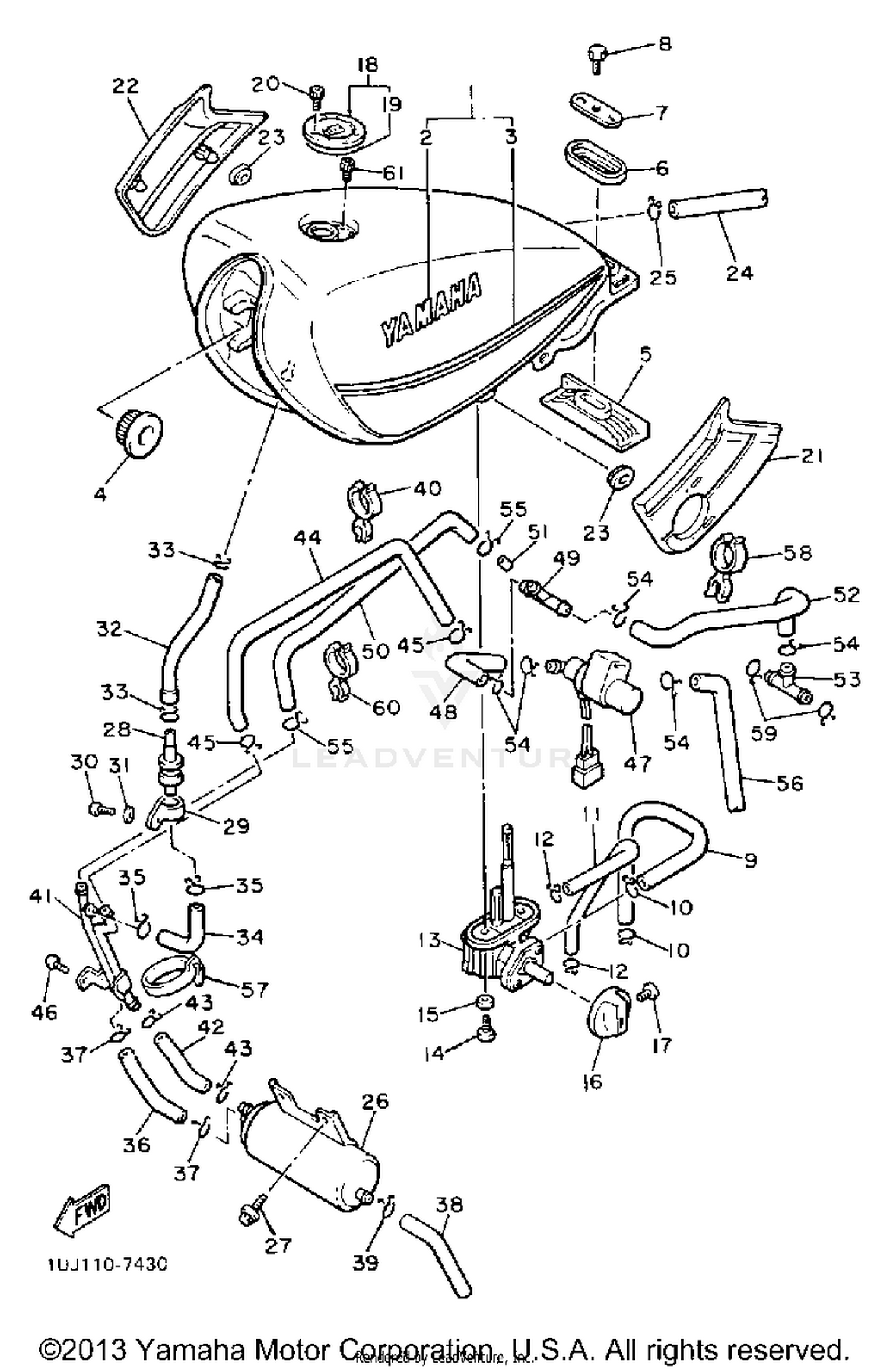

Fuel Tank Yx600tc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1UL-24110-00-03
|
$543.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
1UL-24110-00-04
|
$602.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
99225-00025-00
Superseded by 99245-00100-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRAPHIC SET
1UJ-24240-20-00
|
$130.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET
1UJ-24240-30-00
|
$127.99 | ||
|
Unavailable |
|||
|
#4
DAMPER, LOCATING 1
4H7-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 2
1UJ-24182-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#6
DAMPER, LOCATING 3
4H7-24183-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#7
WASHER, SPECIAL
4H7-24186-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#8
BOLT
97011-08016-00
Superseded by 97017-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, FUEL 1
4G0-24311-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#10
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE (L685)
90445-09500-00
Superseded by 90445-090G9-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-08021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUEL COCK ASSEMBLY 1
1UJ-24500-00-00
|
$183.99 | ||
|
Unavailable |
|||
|
#14
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER, COCK
29L-24524-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98506-03008-00
Superseded by 98517-03008-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP ASSY
1LJ-24602-03-00
Superseded by 4HM-24602-01-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, FILLER
1XL-2414A-01-00
|
$84.99 | ||
|
Unavailable |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, SIDE 1
1UJ-24129-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#22
COVER, SIDE 2
1UJ-24139-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#23
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE
90445-106A7-00
|
$3.61 | ||
|
Unavailable |
|||
|
#25
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
CANISTER ASSY
1UL-24170-00-00
|
$633.99 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
95816-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
ROLL OVER VALVE ASSY
25H-24180-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90461-15100-00
Superseded by 90464-15014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIPE 4
1UL-24314-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#33
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
PIPE 3
1UL-24313-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#35
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#36
PIPE 5
1UL-24315-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#37
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#38
UNAVAILABLE IN PRICE BOOK
90445-12452-00
|
|||
|
Unavailable |
|||
|
#39
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90464-26082-00
|
$1.54 | ||
|
Unavailable |
|||
|
#41
PIPE JOINT ASSEMBLY
1UL-24380-00-00
|
$58.50 | ||
|
Unavailable |
|||
|
#42
PIPE 6
1UL-24316-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#43
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#44
HOSE (L450)
90445-11706-00
Superseded by 90445-11M71-00
|
$11.49 | ||
|
Unavailable |
|||
|
#45
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#46
SCREW, BIND
98906-06008-00
Superseded by 98907-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
VLV, OUT VENT CON 2
1UL-14896-00-00
|
$146.99 | ||
|
Unavailable |
|||
|
#48
PIPE 1
1UL-14871-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#49
WAY 3
90413-11028-00
|
$36.99 | ||
|
Unavailable |
|||
|
#50
HOSE
90445-107E7-00
Superseded by 90445-10020-00
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#51
NOZZLE 1
1WJ-15138-00-00
|
$1.18 | ||
|
Unavailable |
|||
|
#52
PIPE 2
1UL-14872-00-00
|
$8.78 | ||
|
Unavailable |
|||
|
#53
WAY 3
90413-11025-00
|
$10.21 | ||
|
Unavailable |
|||
|
#54
CLIP
90467-12052-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#56
HOSE
90445-137E8-00
|
$4.50 | ||
|
Unavailable |
|||
|
#57
BAND, SWITCH CORD
25G-83936-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#58
CLAMP
90464-26091-00
|
$2.97 | ||
|
Unavailable |
|||
|
#59
CLIP
90467-12052-00
|
$8.49 | ||
|
Unavailable |
|||
|
#60
CLAMP
90464-26082-00
|
$1.54 | ||
|
Unavailable |
|||
|
#61
BOLT, HEXAGON SOCKET HEAD
91311-05010-00
Superseded by 91314-05010-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
