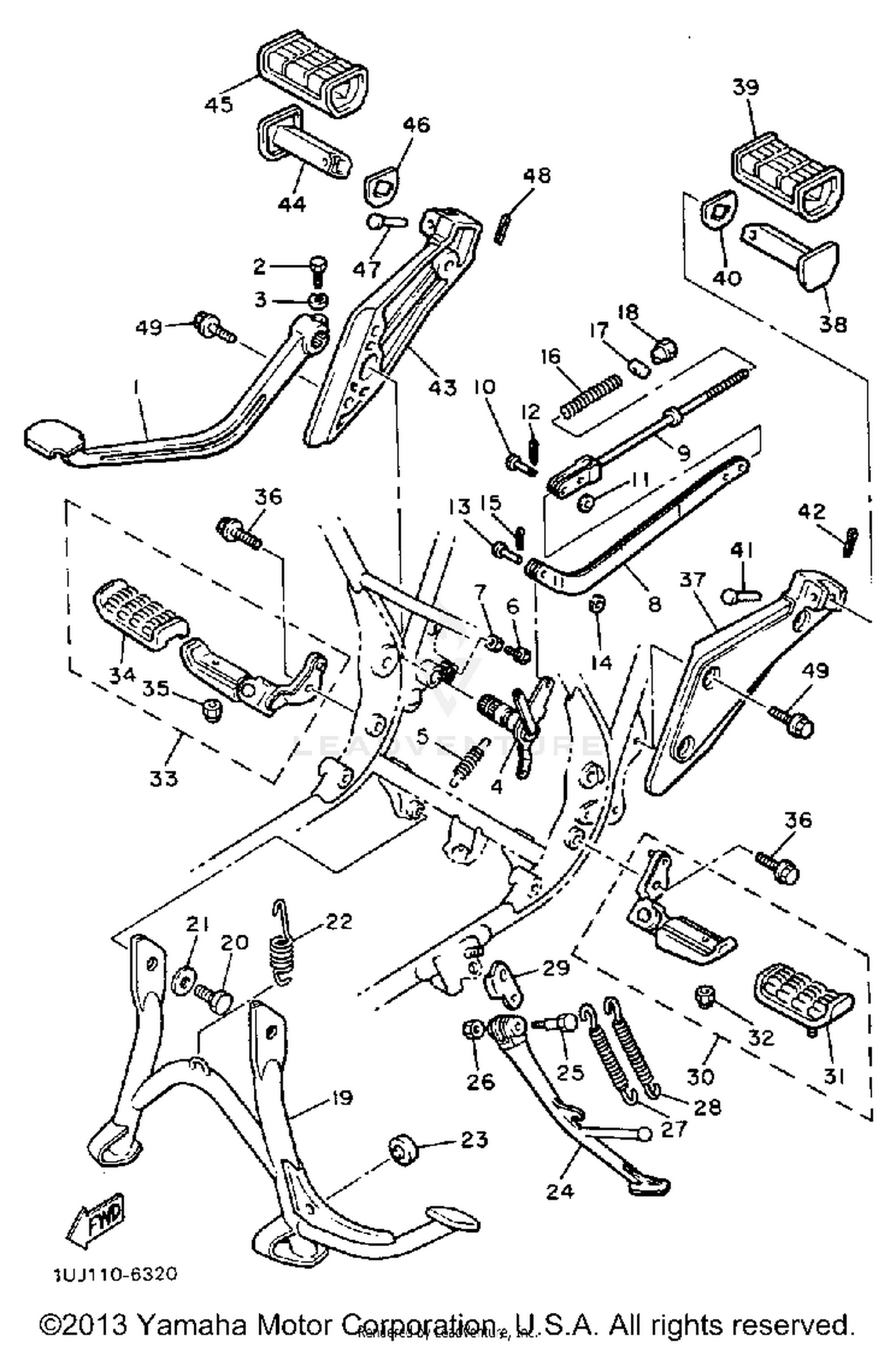

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
4G0-27211-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-06468-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, BRAKE PEDAL
1UJ-27212-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#5
SPRING, TENSION
90506-20193-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, HEXAGON
90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
90170-06184-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD, JOINT
1UJ-27241-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#9
ROD, BRAKE
1UJ-27231-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#10
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, CLEVIS
90240-08067-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#16
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAND, MAIN
1UJ-27111-00-R4
|
$119.99 | ||
|
Unavailable |
|||
|
#20
BOLT,HEXAGON
97011-10016-00
Superseded by 97017-10016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-10752-00
Superseded by 90201-100A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, TENSION
90506-40251-00
|
$12.49 | ||
|
Unavailable |
|||
|
#23
STOPPER, MAIN STAND
1UJ-27114-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAND, SIDE
4G0-27311-00-R4
|
$120.35 | ||
|
Unavailable |
|||
|
#25
BOLT
90109-10590-00
Superseded by 90109-10473-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, TENSION
90506-18224-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING, TENSION
90506-26225-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
LINK, SIDE STAND
2KT-27315-00-00
Superseded by 3VD-27315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
FRT FOOTREST ASSEMBLY L
1UJ-27410-00-R4
|
$148.99 | ||
|
Unavailable |
|||
|
#31
COVER, FOOTREST
51Y-27413-00-00
Superseded by 22N-27413-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
FRT FOOTREST ASSEMBLY R
1UJ-27420-00-R4
|
$148.99 | ||
|
Unavailable |
|||
|
#34
COVER, FOOTREST
51Y-27413-00-00
Superseded by 22N-27413-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#35
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE
95821-12030-00
Superseded by 95817-12030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRACKET 2
1UJ-27442-00-00
|
$165.99 | ||
|
Unavailable |
|||
|
#38
FOOTREST, REAR 1
4X7-27431-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#39
COVER, REAR FOOTREST
3H5-27433-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#40
WASHER, SPECIAL SHAPE
90209-18190-00
|
$4.15 | ||
|
Unavailable |
|||
|
#41
PIN, CLEVIS
91701-06038-00
Superseded by 91702-06038-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#43
BRACKET 3
1UJ-27443-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#44
FOOTREST, REAR 2
4X7-27441-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#45
COVER, REAR FOOTREST
3H5-27444-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#46
WASHER, SPECIAL SHAPE
90209-18190-00
|
$4.15 | ||
|
Unavailable |
|||
|
#47
PIN, CLEVIS
91701-06038-00
Superseded by 91702-06038-00
|
$2.20 | ||
|
Unavailable |
|||
|
#48
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Unavailable |
|||
|
#49
BOLT, HEXAGON SOCKET HEAD
91311-10025-00
Superseded by 91314-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
