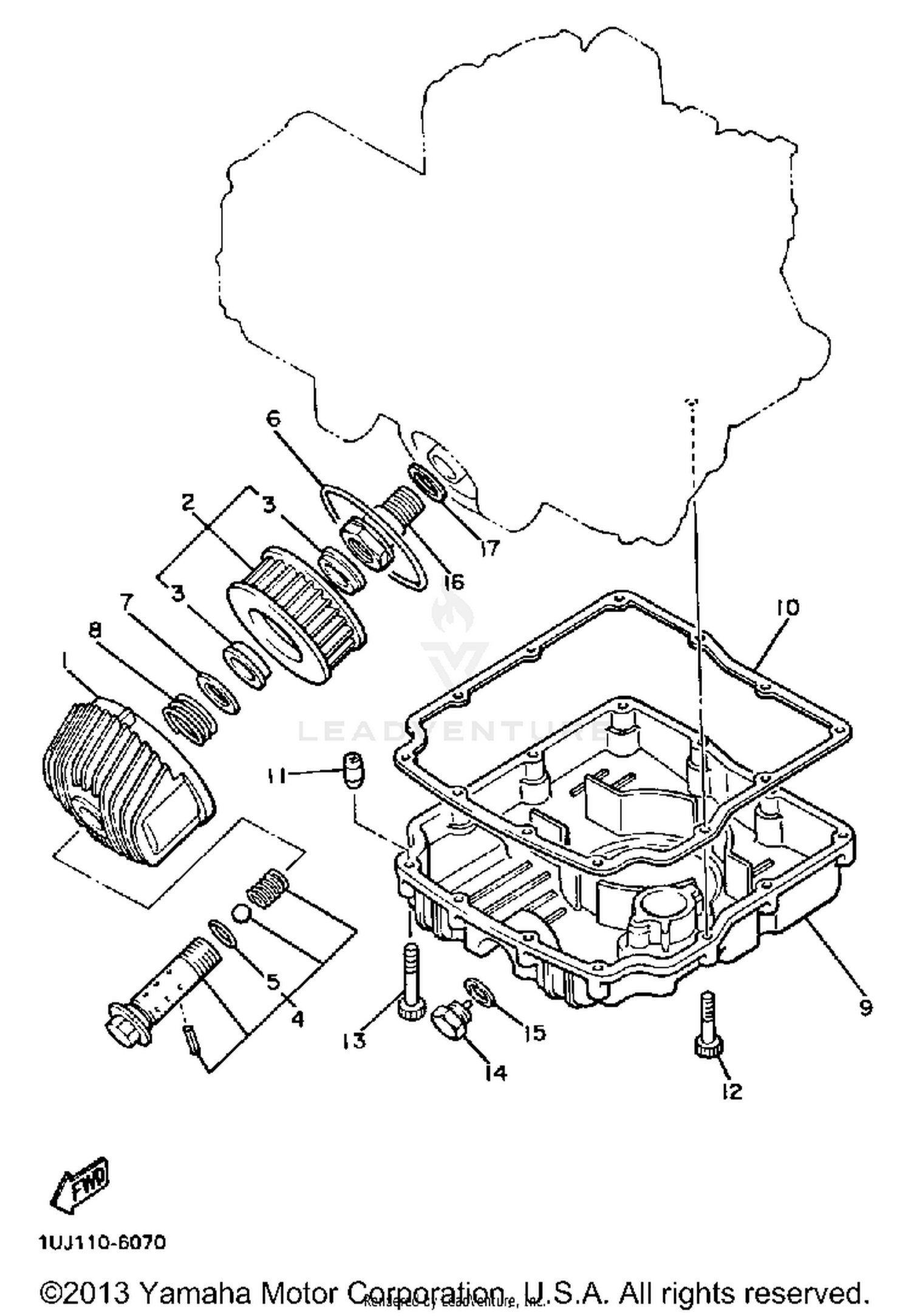

Oil Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, OIL ELEMENT
4V8-13447-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#2
ELEMENT, OIL CLEANER
1L9-13441-11-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET
90480-23193-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BY-PASS VALVE ASSY
1L9-13340-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-16629-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-87723-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-21608-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-20422-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, STRAINER
4G0-13417-02-00
Superseded by 4G0-13417-03-00
|
$186.99 | ||
|
Unavailable |
|||
|
#10
GASKET, STRAINER COVER
4BR-13414-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
91316-06040-00
Superseded by 91317-06040-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, STRAIGHT SCREW
3VD-13455-00-00
Superseded by 90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, UNION
90401-20089-00
|
$18.49 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-20279-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
