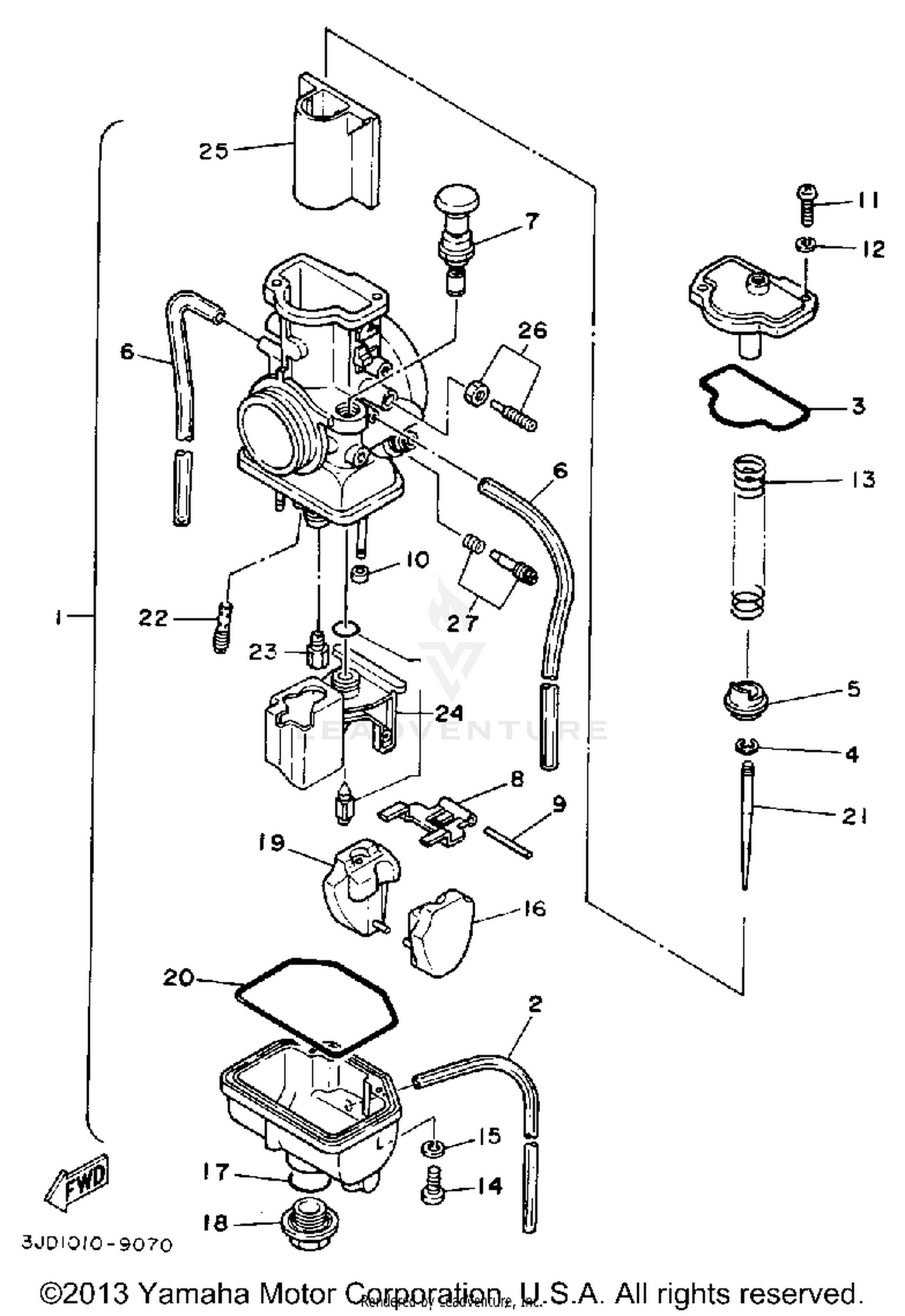

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
4DB-14101-00-00
|
$352.99 | ||
|
Unavailable |
|||
|
#2
PIPE
55X-14196-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
3JD-14147-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP
256-14919-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING
3JD-14194-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#6
PIPE
2HH-14197-00-00
Superseded by 2J2-14196-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUNGER, STARTER
3JE-14171-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, FLOAT
363-14187-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, FLOAT
353-14186-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
214-14118-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, THROTTLE VALVE
3JD-14131-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98580-03010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-03100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FLOAT
3JD-14185-00-00
|
$45.67 | ||
|
Unavailable |
|||
|
#17
O-RING
3JE-14561-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, SCREW
4DB-14115-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#19
FLOAT
3JE-14185-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#20
O-RING
3JE-14147-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NEEDLE (J8-6EN15-55)
3JD-14116-A1-00
|
$12.49 | ||
|
Unavailable |
|||
|
#
NEEDLE (J8-6EN15-56)
3JD-14116-A4-00
|
$23.99 | ||
|
Unavailable |
|||
|
#
NEEDLE (J8-6EN15-57)
3JD-14116-A5-00
|
$11.49 | ||
|
Unavailable |
|||
|
#22
JET, PILOT (#17.5)
3H1-14142-17-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, PILOT #20
3H1-14142-20-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, PILOT #25
3H1-14142-25-00
|
$5.99 | ||
|
Unavailable |
|||
|
#
JET, PILOT (# 30)
3H1-14142-30-00
|
$3.94 | ||
|
Unavailable |
|||
|
#23
JET, MAIN (#310)
137-14143-62-A1
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#320)
137-14143-64-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#330)
137-14143-66-A1
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (350)
137-14143-70-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#340)
137-14143-68-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NEEDLE VALVE SET
3JD-14107-35-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
VALVE, THROTTLE (C.A 5.0)
3JD-14112-50-00
|
$230.99 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE (C.A 5.5)
3JD-14112-55-00
|
$180.99 | ||
|
Unavailable |
|||
|
#26
THROTTLE SCREW SET
3JD-14103-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
AIR SCREW SET
3JD-14104-00-00
Superseded by 4GL-14104-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
