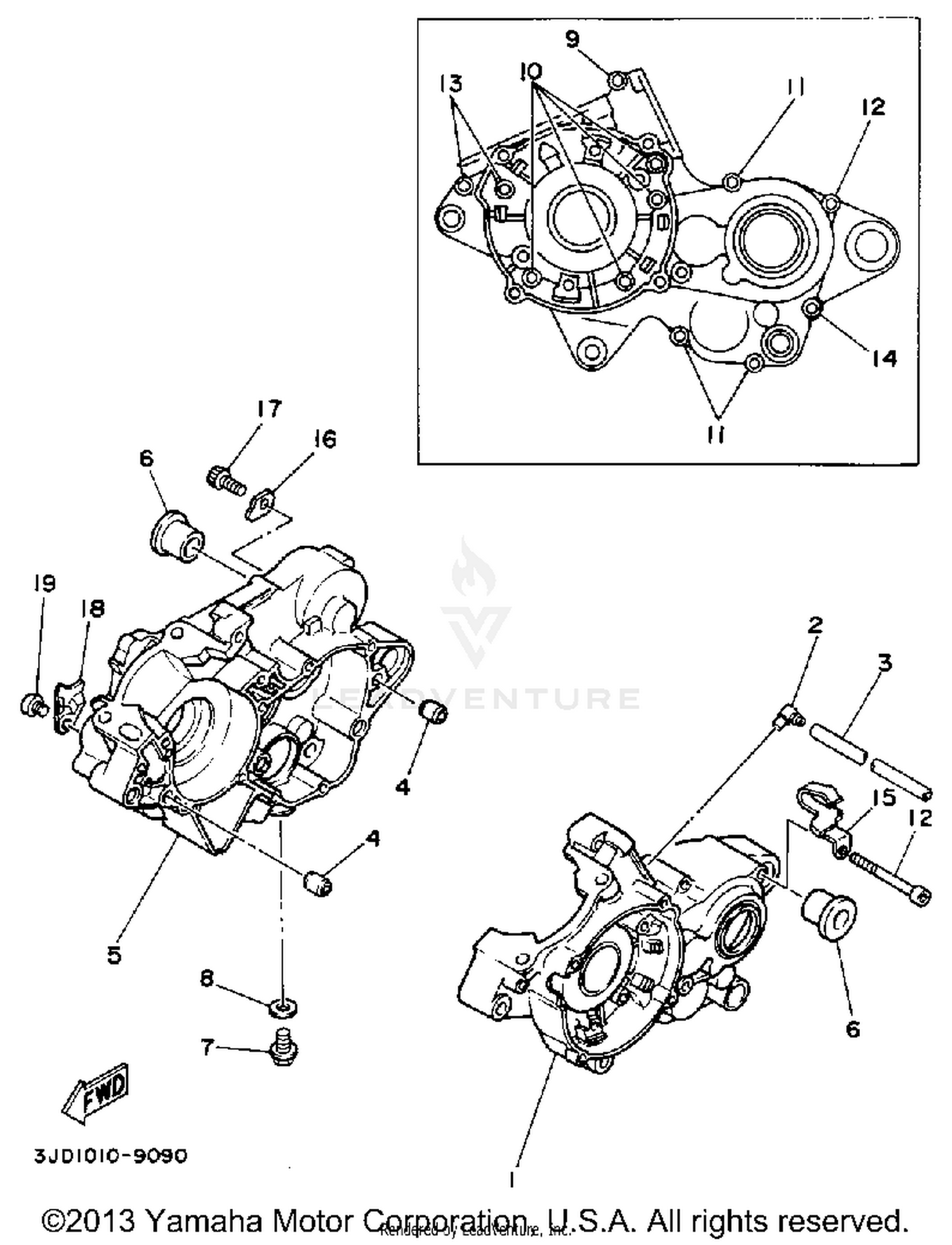

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
4DB-15111-00-00
|
$488.99 | ||
|
Unavailable |
|||
|
#2
CONNECTOR, SUCTION PIPE
353-13115-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE
90445-08605-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKCASE 2
1LX-15121-12-00
|
$1,072.99 | ||
|
Unavailable |
|||
|
#6
COLLAR
90387-16781-00
|
$14.49 | ||
|
Unavailable |
|||
|
#7
PLUG, STRAIGHT SCREW
90340-12097-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
91316-06035-00
Superseded by 91317-06035-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91316-06045-00
Superseded by 91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91316-06055-00
Superseded by 91317-06055-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-06070-00
Superseded by 91317-06070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
91316-06060-00
Superseded by 91317-06060-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91316-06065-00
Superseded by 91317-06065-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90465-08336-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
90209-06290-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
BOLT
91316-05012-00
Superseded by 91317-05012-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOLDER
3R3-15128-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98511-08010-00
Superseded by 98507-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
