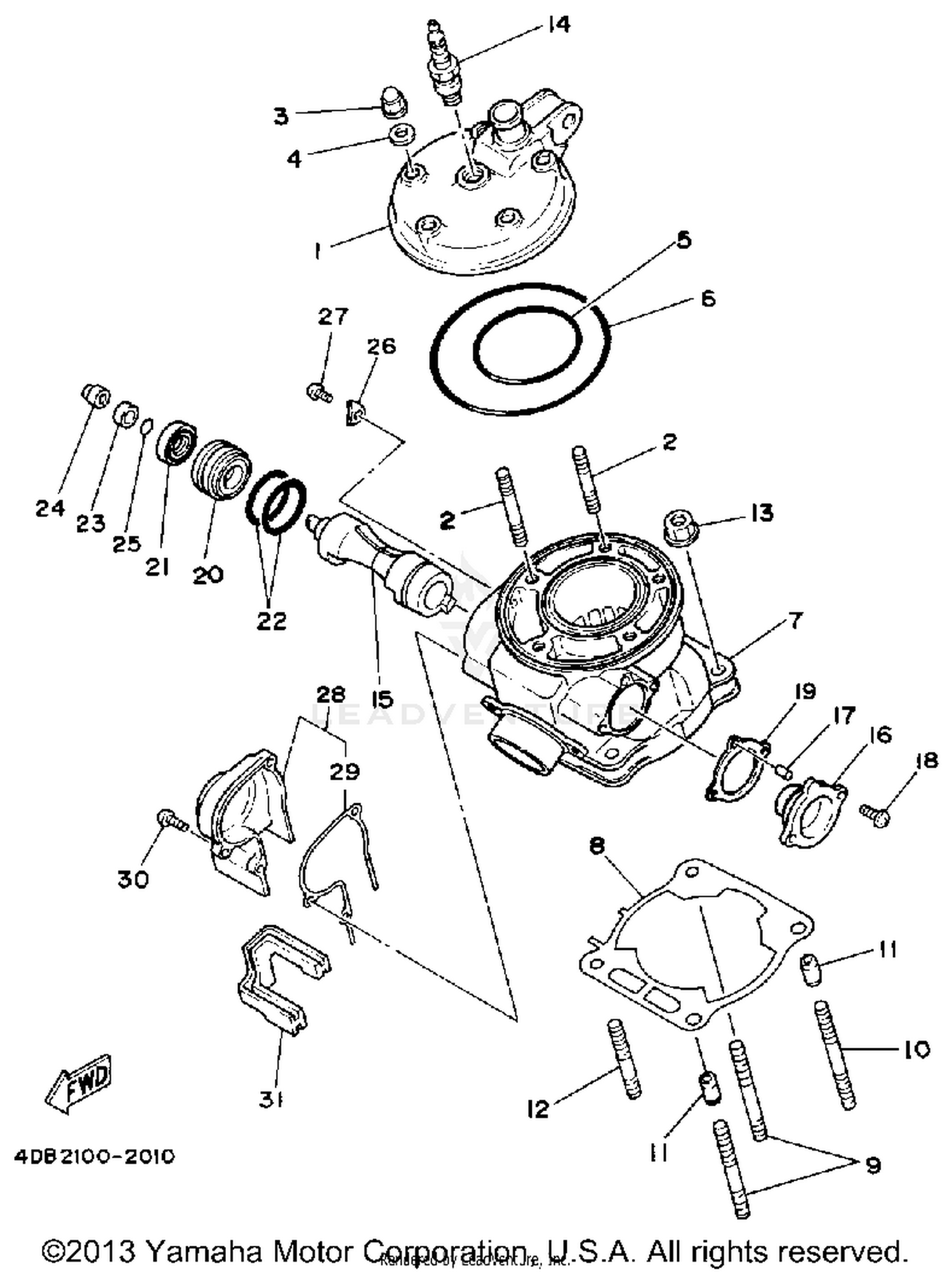

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
4DB-11111-00-00
|
$184.99 | ||
|
Unavailable |
|||
|
#2
BOLT, STUD
90116-08394-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, CROWN
90176-08026-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-65721-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93211-07720-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CYLINDER 1
4DB-11311-00-00
|
$650.99 | ||
|
Unavailable |
|||
|
#8
GASKET, CYLINDER
1LX-11351-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD
90116-08388-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
90116-08302-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
90116-08533-00
|
$4.75 | ||
|
Unavailable |
|||
|
#13
NUT
90179-08491-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BR9EG NGK SPLUG 4P
NGK-BR9EG-00-00
Superseded by BR9-EG000-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
VALVE 1
4DB-1131A-00-00
|
$234.99 | ||
|
Unavailable |
|||
|
#16
HOLDER 1
4DB-W1132-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#17
PIN, DOWEL
93604-08071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, HOLDER
4DB-1131N-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#20
HOLDER 2
4DB-1131F-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#21
OIL SEAL
93104-16074-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-27672-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-102W0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOSS, LEVER
3JE-11937-00-00
Superseded by 3JE-11937-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-09192-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, THRUST 1
47X-11915-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98506-05008-00
Superseded by 98507-05008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOUSING 2
4DB-11992-01-00
|
$131.99 | ||
|
Unavailable |
|||
|
#29
GASKET
4DB-11993-01-00
|
$8.99 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN HEAD
98580-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAL, HOUSING
1LX-11995-01-00
|
$44.99 | ||
|
Unavailable |
|||
