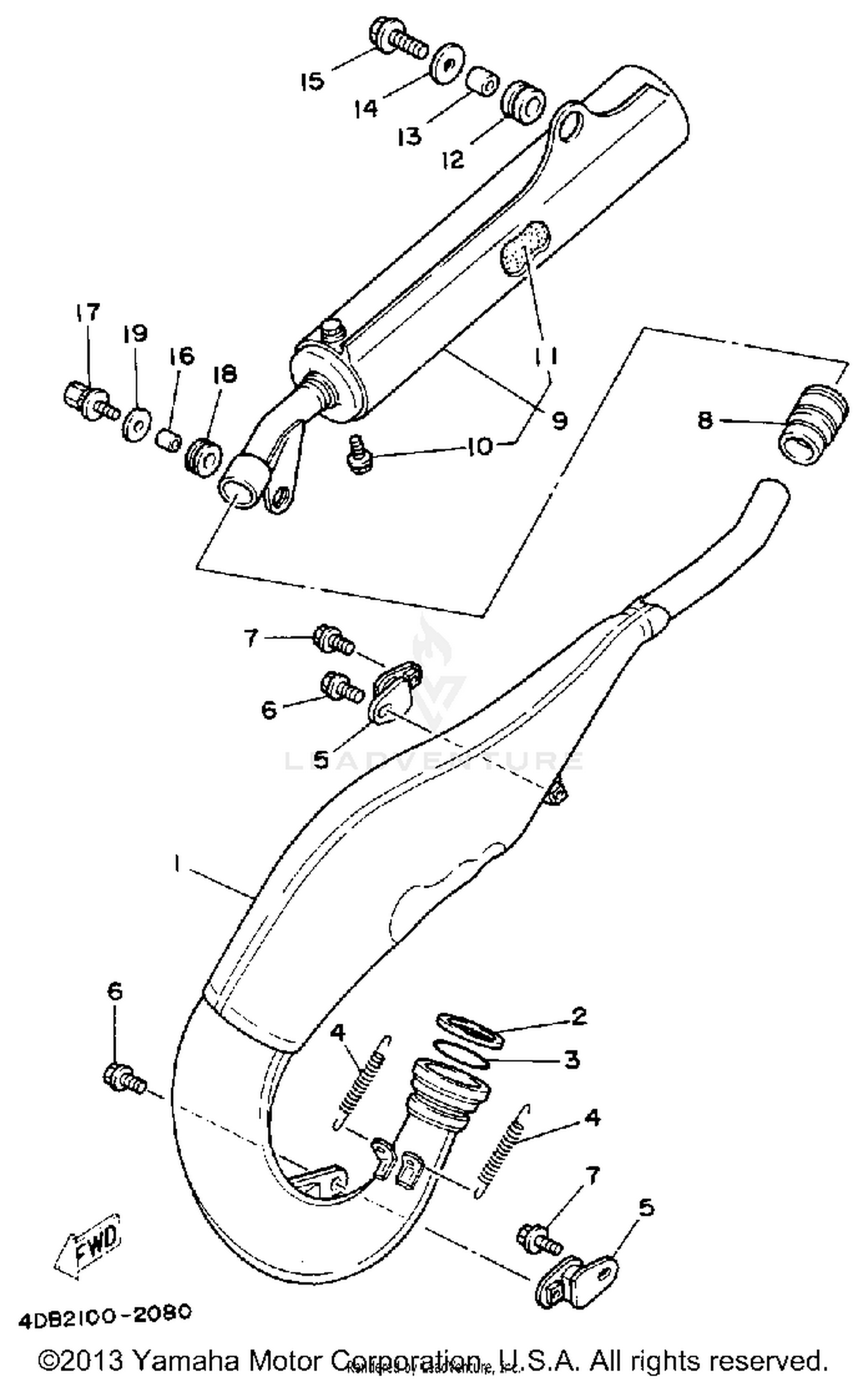

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
4DB-14610-00-00
|
$277.99 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE
3R3-14613-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-45742-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90507-20030-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, MUFFLER 1
565-14771-00-00
Superseded by 565-14771-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE (SMALL HEAD)
95023-06012-00
Superseded by 95024-06012-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (SMALL HEAD)
95023-06010-00
Superseded by 95024-06010-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT, EXHAUST L
3M7-14615-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SILENCER, EXHAUST
3XJ-14753-00-00
|
$287.99 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
95023-06008-00
Superseded by 95024-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
FIBER
3XJ-1469A-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#12
DAMPER, MUFFLER
39X-14747-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#13
COLLAR
90387-100Y1-00
Superseded by 90387-081A3-00
|
$5.99 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-08612-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,FLG,(SMALL HEAD)
95023-08030-00
Superseded by 95024-08030-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90109-064F4-00
|
$11.49 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-16233-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
