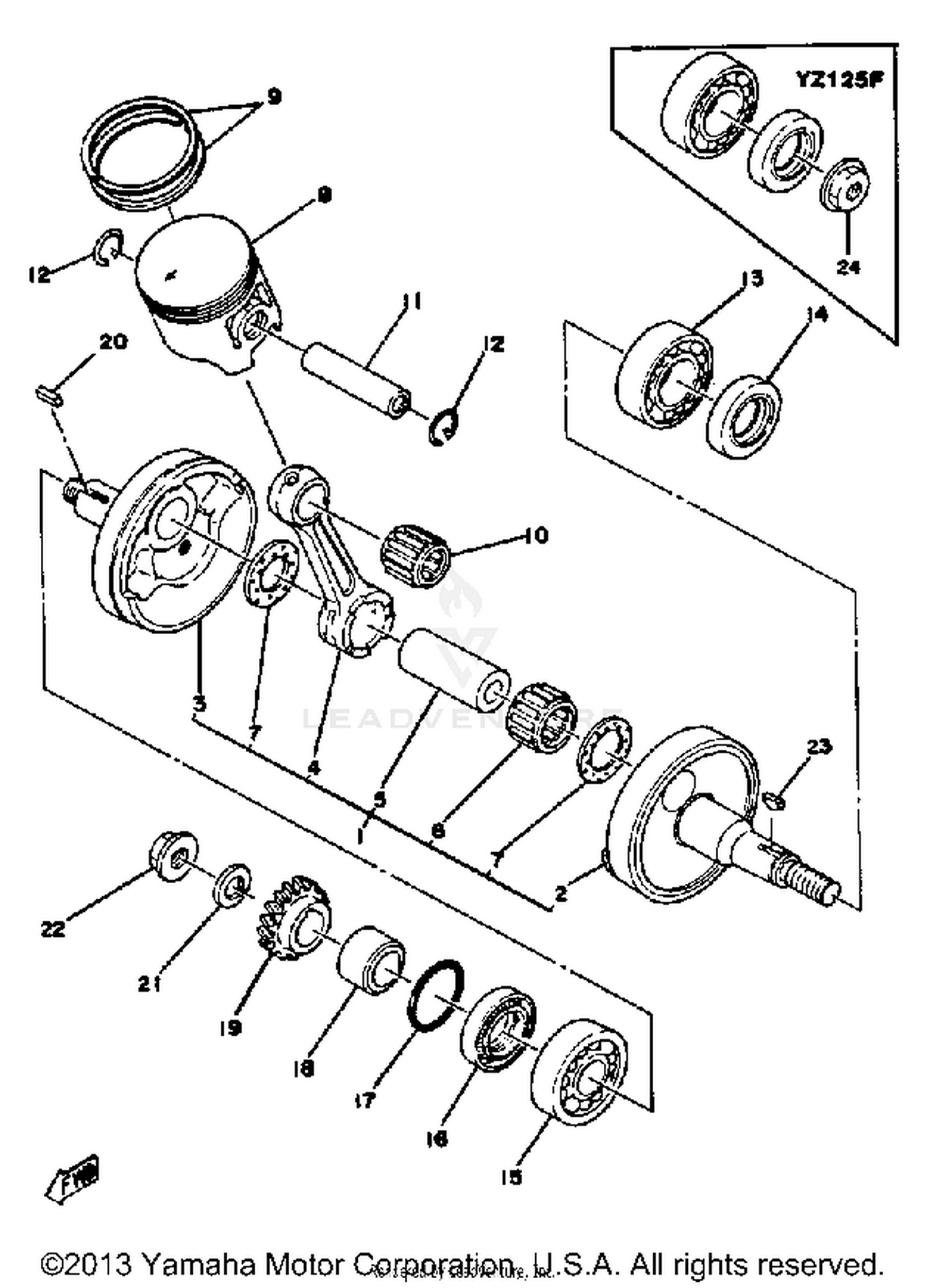

Crankshaft - Piston Yz125e - F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY (1W1-11400-
2K5-11400-00-00
|
$355.99 | ||
|
Unavailable |
|||
|
#
CRANKSHAFT ASSEMBLY
2W5-11400-00-00
|
$263.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
1W1-11412-01-00
|
$250.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CRANK 1
2W5-11412-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
1W1-11422-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD, CONNECTING
3R2-11651-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CRANK 1
3M5-11681-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, CYLINDER.#10
93310-422H0-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-22248-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON STD (STD)
2K6-11631-00-97
|
$112.99 | ||
|
Unavailable |
|||
|
#
PISTON STD (55.97MM STD)
2X3-11631-01-97
|
$87.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25 (56.25MM 1ST
2K6-11635-00-00
|
$93.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25 (56.25MM 1ST
2X3-11635-01-00
|
$90.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50 (2ND O/S 0.50
3R3-11636-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75 (3RD O.S.)
2K6-11637-00-00
|
$153.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00 (57.00MM 4TH
2K6-11638-00-00
|
$128.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 4TH (4TH O/S)
3R3-11630-40-00
|
$85.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 4TH (4TH O.S.)
2K6-11630-40-00
|
$97.42 | ||
|
Unavailable |
|||
|
#
PISTON KIT 3RD (3RD O/S)
3R3-11630-30-00
|
$85.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 2ND (2ND O/S)
3R3-11630-20-00
|
$117.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 2ND
2K6-11630-20-00
|
$66.40 | ||
|
Unavailable |
|||
|
#
PISTON KIT 1ST
2X3-11630-11-00
|
$57.62 | ||
|
Unavailable |
|||
|
#
PISTON KIT 1ST
2K6-11630-10-00
|
$59.88 | ||
|
Unavailable |
|||
|
#
PISTON KIT STD (STD)
2X3-11630-01-00
|
$101.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00 (4TH O/S 1.00
3R3-11638-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75 (3RD O/S 0.75
3R3-11637-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50 (56.50MM 2ND
2K6-11636-00-00
|
$153.99 | ||
|
Unavailable |
|||
|
#9
RING, PISTON STD (STD)
2K6-11611-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET STD (STD)
3R3-11601-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST (1ST O/S)
3R3-11601-10-00
|
$42.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND (2ND O/S)
3R3-11601-20-00
|
$79.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD (3RD O/S)
3R3-11601-30-00
|
$122.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH (4TH O/S)
3R3-11601-40-00
|
$44.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 4TH (4TH O/S)
2K6-11611-40-00
|
$47.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 3RD (3RD O/S)
2K6-11611-30-00
|
$21.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 2ND (2ND O/S)
2K6-11611-20-00
|
$22.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 1ST (1ST O/S)
2K6-11611-10-00
|
$27.99 | ||
|
Unavailable |
|||
|
#10
BEARING, CYLINDRICAL
93310-216L2-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PISTON
137-11633-00-00
Superseded by 137-11633-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93450-17025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING (B6205C4)
93306-20529-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL, SW-TYPE
93103-25125-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-30421-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL, SW-TYPE (93103-28100)
93103-28011-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-180A6-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-20488-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, PRI DRIVE
1W1-16111-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#20
KEY, STRAIGHT
90282-05005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
90204-12007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-12244-00
Superseded by 90179-12659-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SPECL SHAPE
90179-10257-00
|
$9.49 | ||
|
Unavailable |
|||
