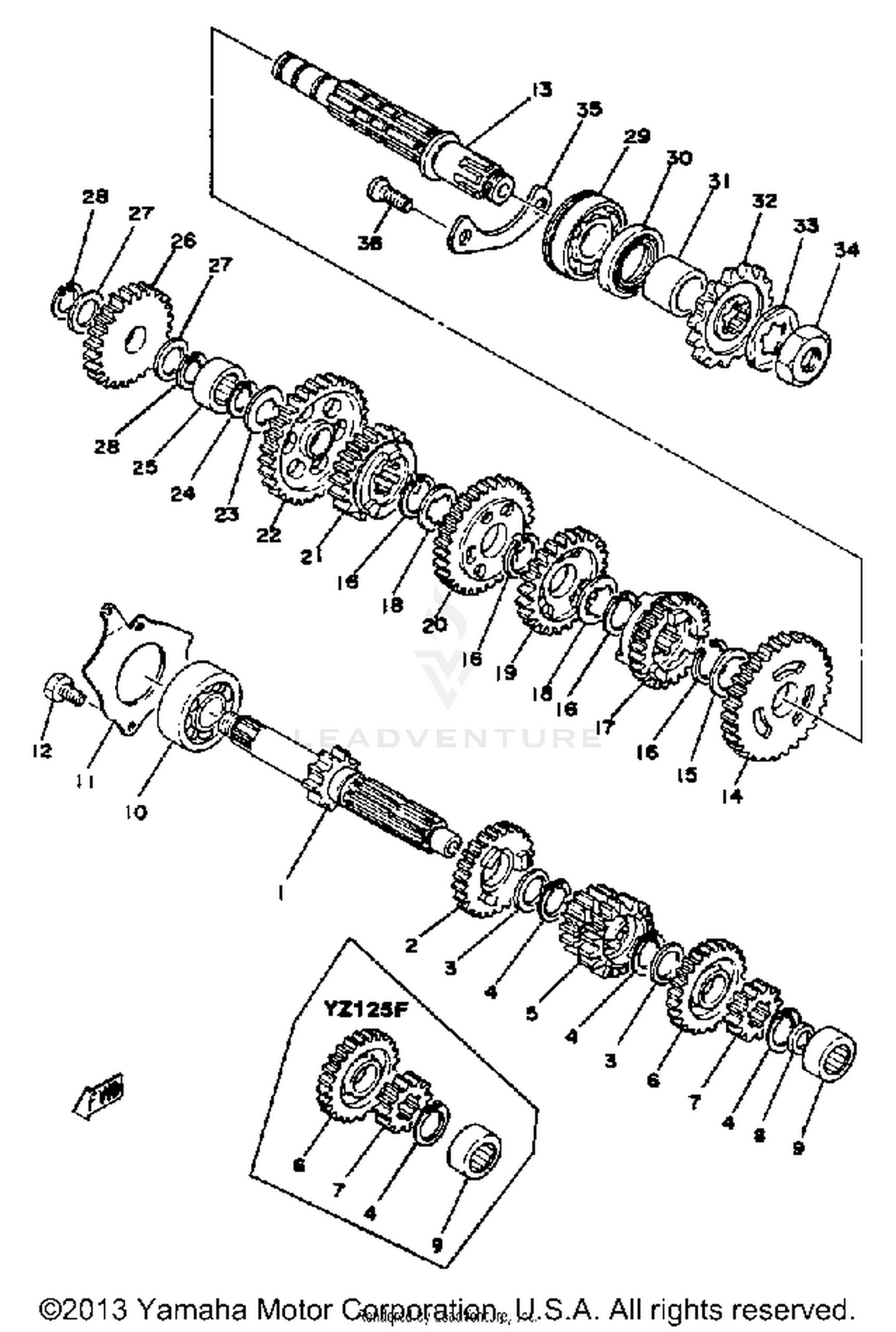

Transmission Yz125e - F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
1W1-17411-00-00
|
$88.26 | ||
|
Unavailable |
|||
|
#2
GEAR, 5TH PINION
2W5-17151-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
2W5-17131-00-00
|
$204.99 | ||
|
Unavailable |
|||
|
#6
GEAR, 6TH PINION
2W5-17161-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#7
GEAR, 2ND PINION
1W1-17121-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE (T=1.0)
90201-15701-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93311-41530-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, COVER
1W1-17471-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
AXLE, DRIVE
1W1-17421-00-00
|
$104.99 | ||
|
Unavailable |
|||
|
#14
GEAR, 2ND WHEEL (1W1-17221-00)
2W5-17221-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-22555-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, 6TH WHEEL
2W5-17261-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#18
WASHER
90209-18135-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 4TH WHEEL
2W5-17241-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#20
GEAR, 3RD WHEEL
2W6-17231-01-00
|
$73.99 | ||
|
Unavailable |
|||
|
#21
GEAR, 5TH WHEEL
2W5-17251-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#22
GEAR, 1ST WHEEL
1W1-17211-01-00
|
$96.99 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE (T=1.0)
90201-15701-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
CIRCLIP
93440-15012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, CYLINDRICAL
93311-31567-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, KICK IDLE (25T)
525-15651-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHIM 1 (0.5T)
137-17417-00-05
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP
93440-15012-00
|
$7.49 | ||
|
Unavailable |
|||
|
#29
BEARING (B6304)
93306-30411-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL
93102-26042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-202A0-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPROCKET, DRIVE 11T
93832-11007-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE 12T
93832-12014-00
|
$17.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVE 13T
93832-13027-00
|
$15.47 | ||
|
Unavailable |
|||
|
#33
WASHER, LOCK
90215-16127-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
90179-16226-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE, BRNG COVER
1W1-15381-00-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
