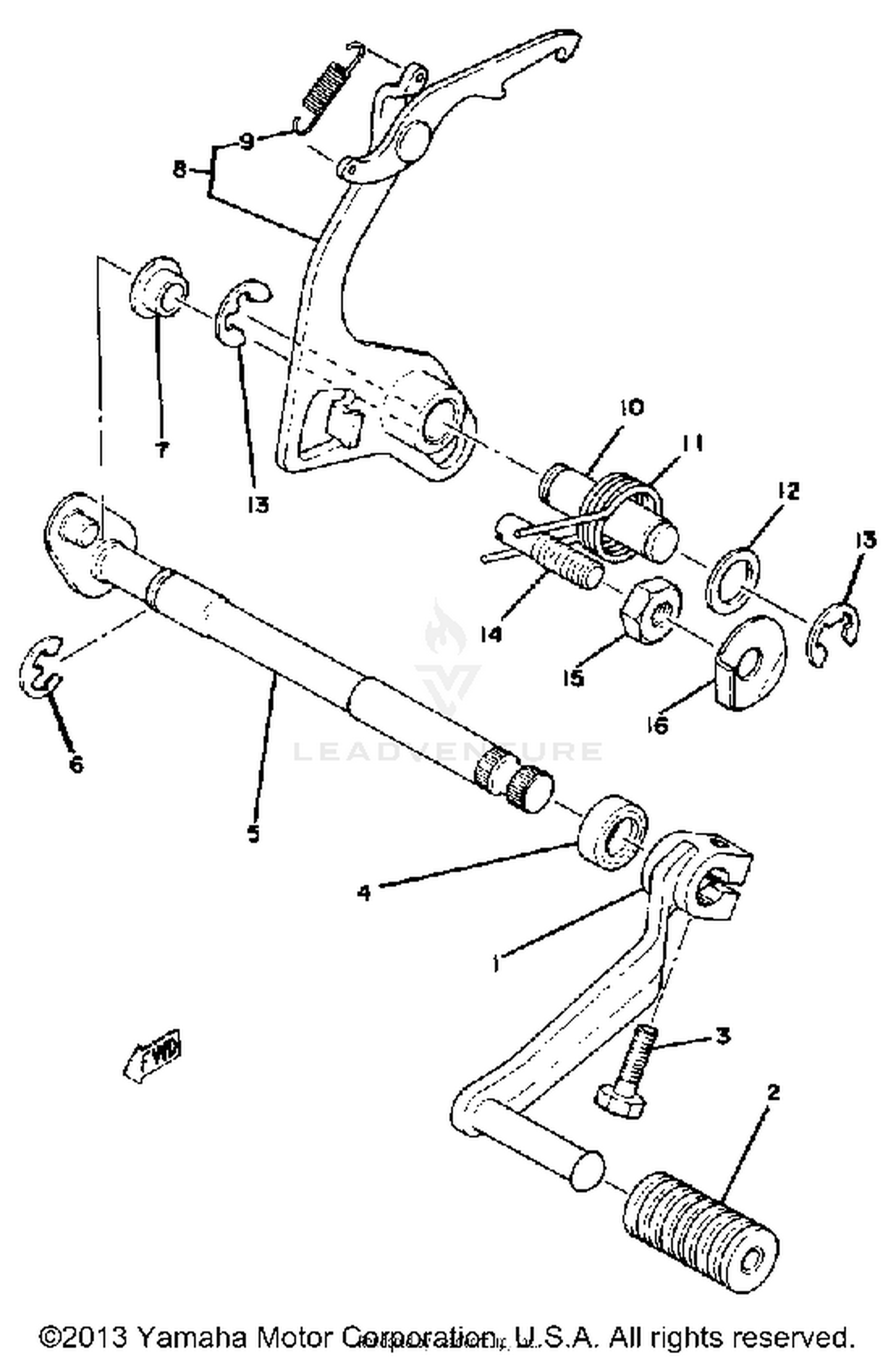

Shift Shaft Yz125e - F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, SHIFT
1W1-18111-01-33
|
$22.86 | ||
|
Unavailable |
|||
|
#
PEDAL, SHIFT
2X3-18111-00-33
|
$27.99 | ||
|
Unavailable |
|||
|
#2
COVER, SHIFT PEDAL
132-18113-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93101-12060-00
Superseded by 93101-12173-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIFT SHAFT ASSEMBLY 1
1W1-18101-03-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROLLER, SHIFT LEVER
401-18178-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIFT LEVER ASSEMBLY (2A6-18120
4F2-18120-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-08155-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT
1W1-18197-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, TORSION
90508-32349-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-12M34-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Unavailable |
|||
|
#14
SCREW, SPECL SHAPE
90149-08111-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEXAGON
90170-08029-00
Superseded by 90170-08193-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, LOCK
90215-08014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
