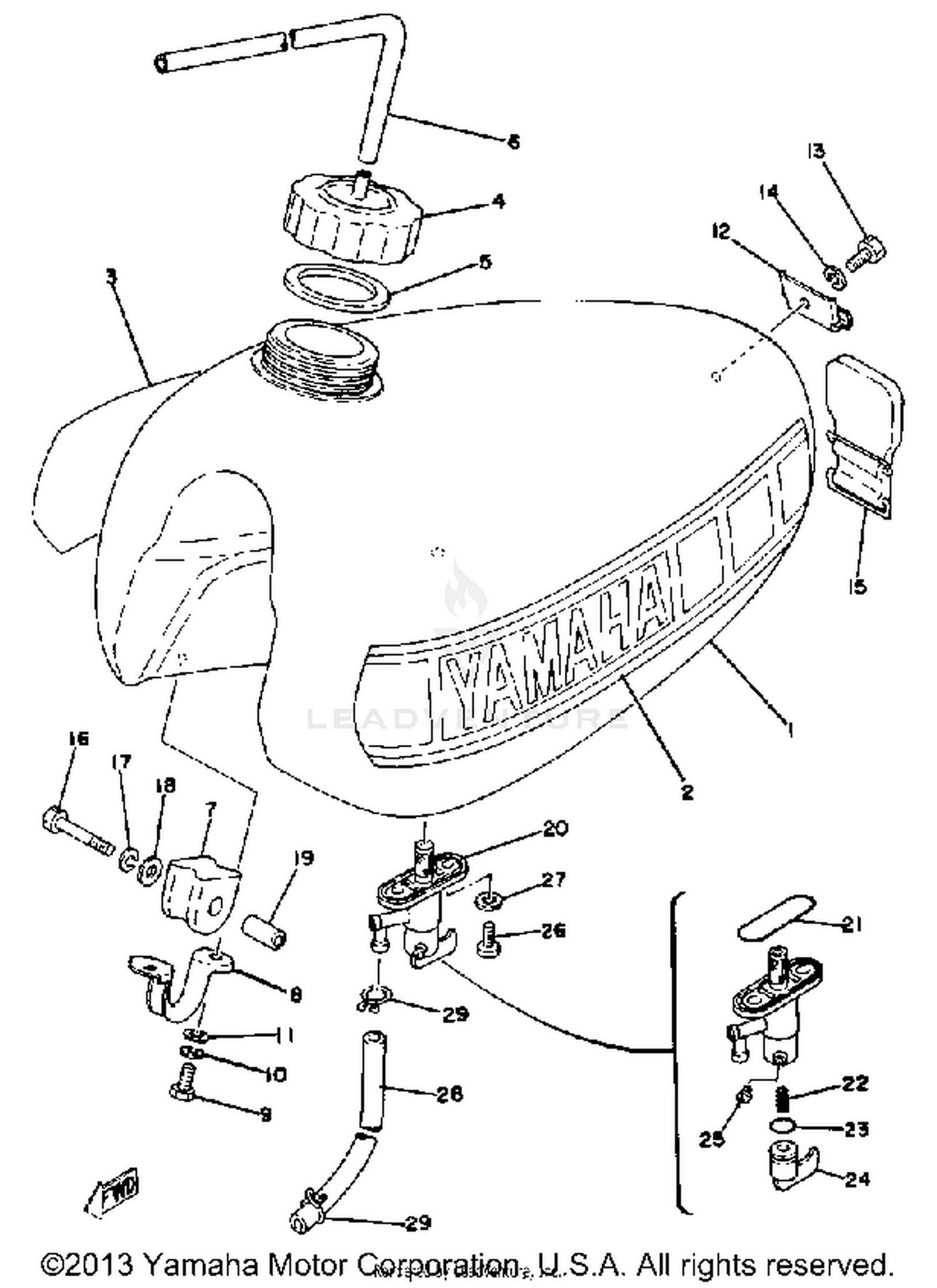

Fuel Tank Yz125e - F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1W1-24110-00-00
|
$153.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
2X3-24110-00-00
|
$152.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
1W1-24244-00-00
|
$33.20 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 1
2X3-24244-20-00
|
$33.20 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 2
1W1-24245-00-00
|
$33.20 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 2
2X3-24245-20-00
|
$33.20 | ||
|
Unavailable |
|||
|
#4
BODY, CAP
1W1-24611-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CAP
1W1-24612-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE (L540)
90445-09361-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 2
1W1-24182-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, DAMPER
1W1-24144-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#9
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, FUEL TNK 2
1W1-24192-00-00
|
$6.90 | ||
|
Unavailable |
|||
|
#13
BOLT
97013-06012-00
|
$4.85 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#15
BAND, TNK FITTING 1
1W1-24173-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#16
BOLT, HEXAGON
97013-06035-00
Superseded by 97014-06035-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, LEVER 1
90387-07393-00
Superseded by 36Y-83913-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUEL COCK ASSEMBLY 1
2K5-24500-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
214-24512-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING
1A0-24529-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
GASKET
1A0-24512-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
LEVER, COCK
1A0-24524-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#25
SCREW, LEVER FITTING
619-24535-00-00
|
$2.25 | ||
|
Unavailable |
|||
|
#26
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE
90445-11491-00
|
$4.05 | ||
|
Unavailable |
|||
|
#
HOSE (L)
90445-11152-00
Superseded by 90445-112E1-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
