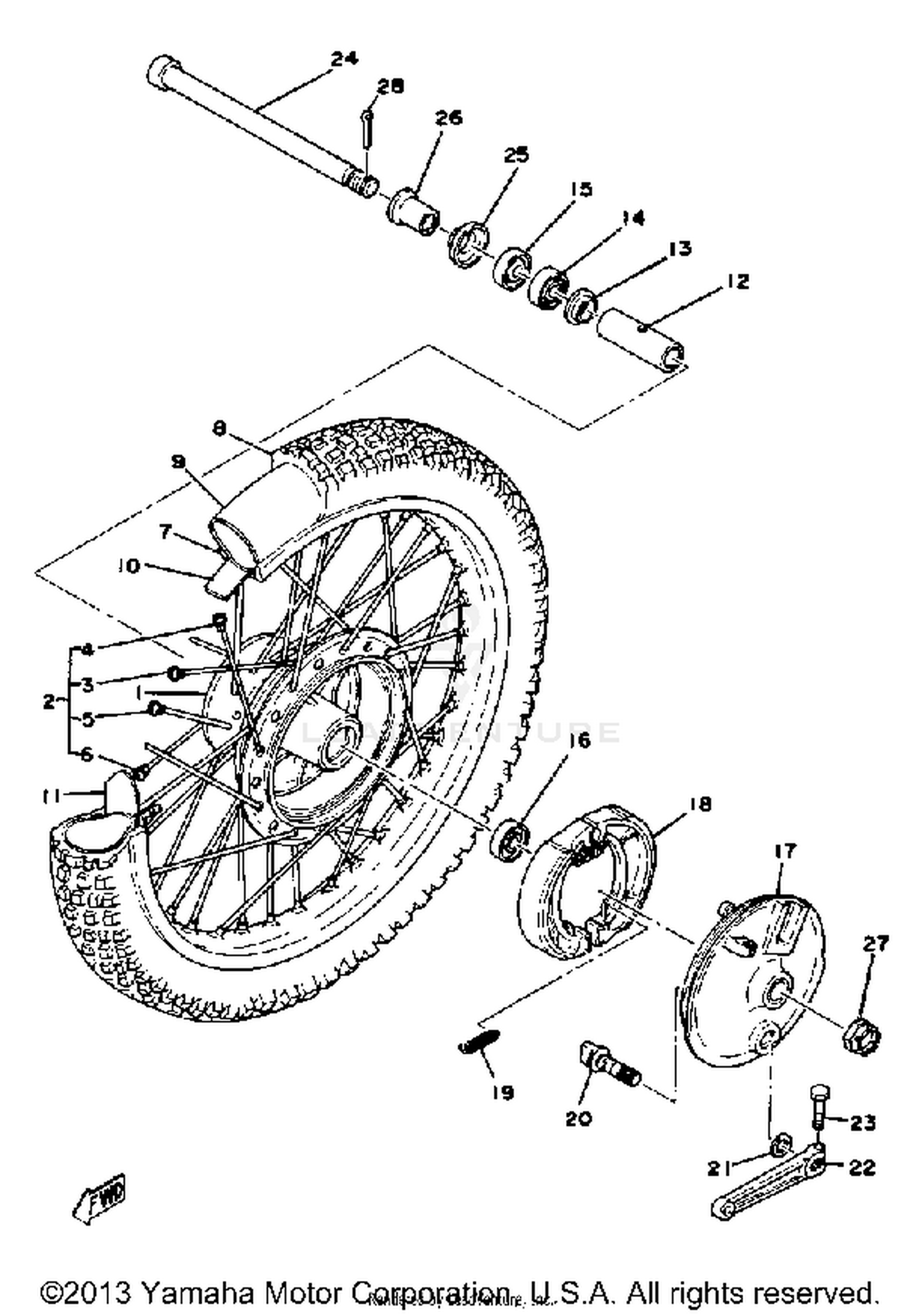

Front Wheel Yz125e - F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
1K7-25111-10-98
|
$132.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
2W6-25104-02-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPOKE SET, INNER 1
2W6-25196-90-00
|
$7.88 | ||
|
Unavailable |
|||
|
#
SPOKE SET, INNER 1
1K7-25196-90-00
|
$4.27 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, OUTER 1
2W6-25197-90-00
|
$9.48 | ||
|
Unavailable |
|||
|
#
SPOKE SET, OUTER 1
1K7-25197-90-00
|
$4.27 | ||
|
Unavailable |
|||
|
#5
SPOKE SET, INNER 2
2W6-25179-90-00
|
$7.88 | ||
|
Unavailable |
|||
|
#
SPOKE SET, INNER 2
1K7-25179-90-00
|
$10.18 | ||
|
Unavailable |
|||
|
#6
SPOKE SET, OUTER 2
2W6-25189-90-00
|
$9.28 | ||
|
Unavailable |
|||
|
#
SPOKE SET, OUTER 2
1K7-25189-90-00
|
$10.18 | ||
|
Unavailable |
|||
|
#7
RIM 1.60X21
94416-21326-00
|
$513.99 | ||
|
Unavailable |
|||
|
#8
300-21 M1B (TT)
94130-213A4-00
|
$78.99 | ||
|
Unavailable |
|||
|
#
300X21 IRC MX
94130-21376-00
|
$28.10 | ||
|
Unavailable |
|||
|
#9
TUBE
94230-21126-00
|
$6.99 | ||
|
Unavailable |
|||
|
#10
BAND, RIM
94330-21088-00
|
$3.16 | ||
|
Unavailable |
|||
|
#11
SPACER, BEAD
1T1-25194-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
90560-15116-00
|
$13.99 | ||
|
Unavailable |
|||
|
#13
FLANGE, SPACER 2
146-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93102-20009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93306-20226-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRAKE SHOE PLT ASSEMBLY (1W1-25
1W1-25016-11-98
|
$285.99 | ||
|
Unavailable |
|||
|
#18
BRAKE SHOE KIT
322-W2535-00-00
Superseded by 322-W253A-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAMSHAFT
23X-25151-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#21
SEAL, CAMSHAFT
137-25159-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#22
LEVER, CAMSHAFT 1
322-25155-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#23
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
AXLE, WHEEL
1W1-25181-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, HUB DUST
322-25118-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-15600-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
