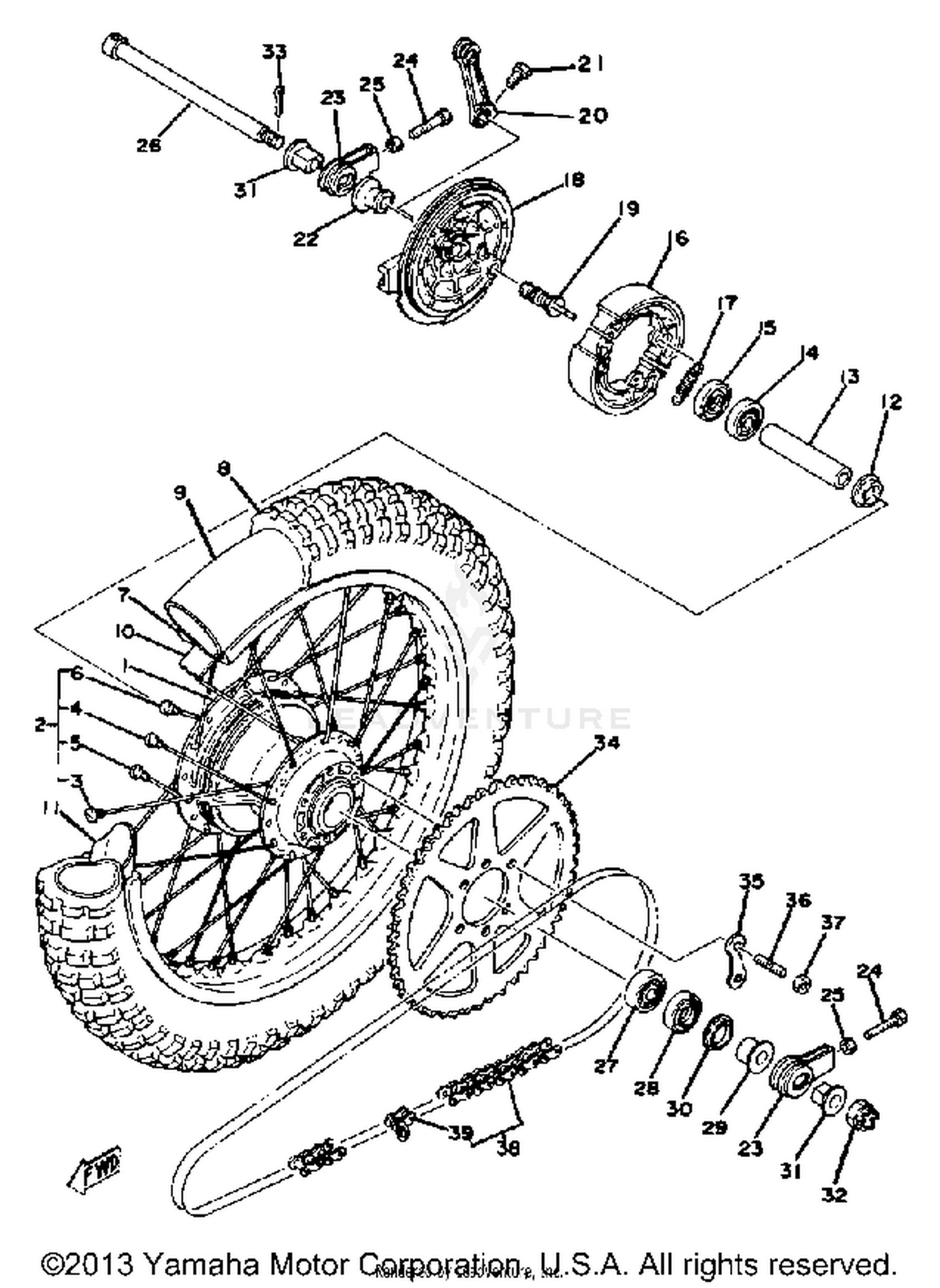

Rear Wheel Yz125e Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
1W1-25311-00-98
|
$206.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
537-25304-01-00
|
$131.99 | ||
|
Unavailable |
|||
|
#3
SPOKE SET, INNER 2
537-25396-90-00
|
$4.04 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, OUTER 2
537-25397-90-00
|
$4.04 | ||
|
Unavailable |
|||
|
#5
SPOKE SET, INNER 1
537-25391-90-00
|
$4.04 | ||
|
Unavailable |
|||
|
#6
SPOKE SET, OUTER 1
537-25392-90-00
|
$4.04 | ||
|
Unavailable |
|||
|
#7
RIM 1.85X18
94418-18245-00
|
$274.99 | ||
|
Unavailable |
|||
|
#8
410-18 MARK 2 (TT)
94141-18655-00
|
$61.99 | ||
|
Unavailable |
|||
|
#9
TUBE (2.75-18)
94235-18085-00
Superseded by 94232-18113-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, BEAD
2X3-25394-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#12
FLANGE, SPACER
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
90560-15313-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20226-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93104-22018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#17
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, BRAKE SHOE
2K6-25321-01-98
|
$75.99 | ||
|
Unavailable |
|||
|
#19
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
LEVER, CAMSHAFT (168-25355-00)
4V5-25355-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#21
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-15658-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
PULLER, CHAIN 1
2K6-25388-00-00
|
$14.80 | ||
|
Unavailable |
|||
|
#24
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
AXLE, WHEEL
2K6-25381-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#27
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-15791-00
|
$7.99 | ||
|
Unavailable |
|||
|
#30
COVER, HUB DUST
431-25367-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#31
BUSH, SOLID
90381-15029-00
|
$7.99 | ||
|
Unavailable |
|||
|
#32
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPROCKET, DRIVEN 49T (1W1-25451
1W1-25449-00-XX
|
$89.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 51T
1W1-25451-00-XX
|
$54.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 53T
1W1-25453-00-XX
|
$58.99 | ||
|
Unavailable |
|||
|
#35
WASHER
1G8-25412-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, STUD
90116-10221-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#38
CHAIN 520DS-104L
9Y585-20103-00
|
$105.99 | ||
|
Unavailable |
|||
|
#39
JOINT CHAIN
94680-11001-00
|
$8.49 | ||
|
Unavailable |
|||
