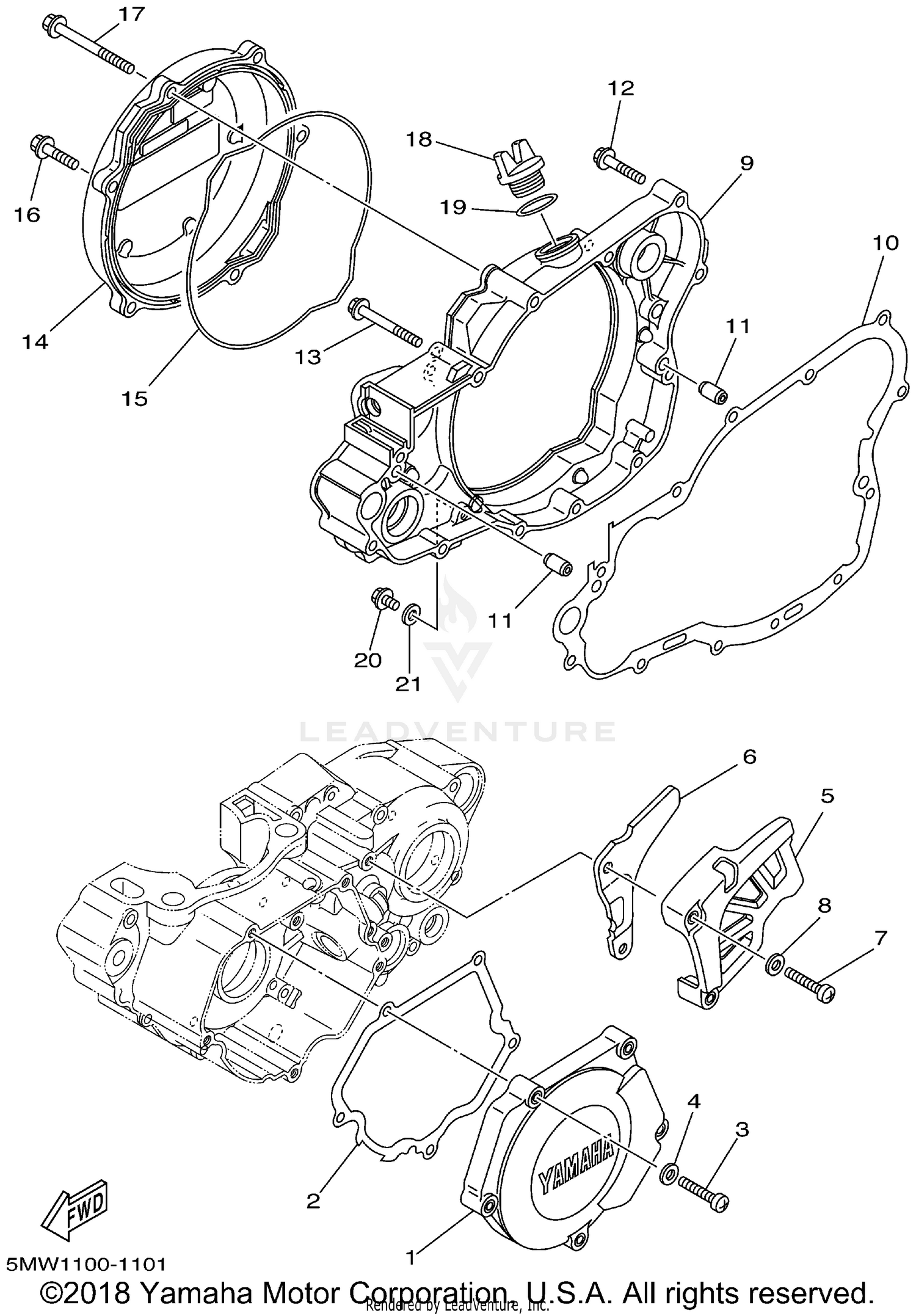

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
5CU-15411-00-00
Superseded by 5CU-15411-10-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE COVER 1
5CU-15451-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98507-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, CRANKCASE 2
5CU-15421-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, CHAIN
5HC-17466-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98507-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#9
COVER, CRANKCASE 3
5NX-15431-00-00
Superseded by 5NX-15431-01-00
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, CRANKCASE COVER 3
5CU-15462-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95027-06030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06050-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, GENERATOR
5MW-15415-00-00
Superseded by 5MW-15415-10-00
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, 2
5CU-15463-00-00
Superseded by 5CU-15463-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95027-06065-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, OIL
3Y1-15363-00-00
Superseded by 3Y1-15363-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-19123-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
