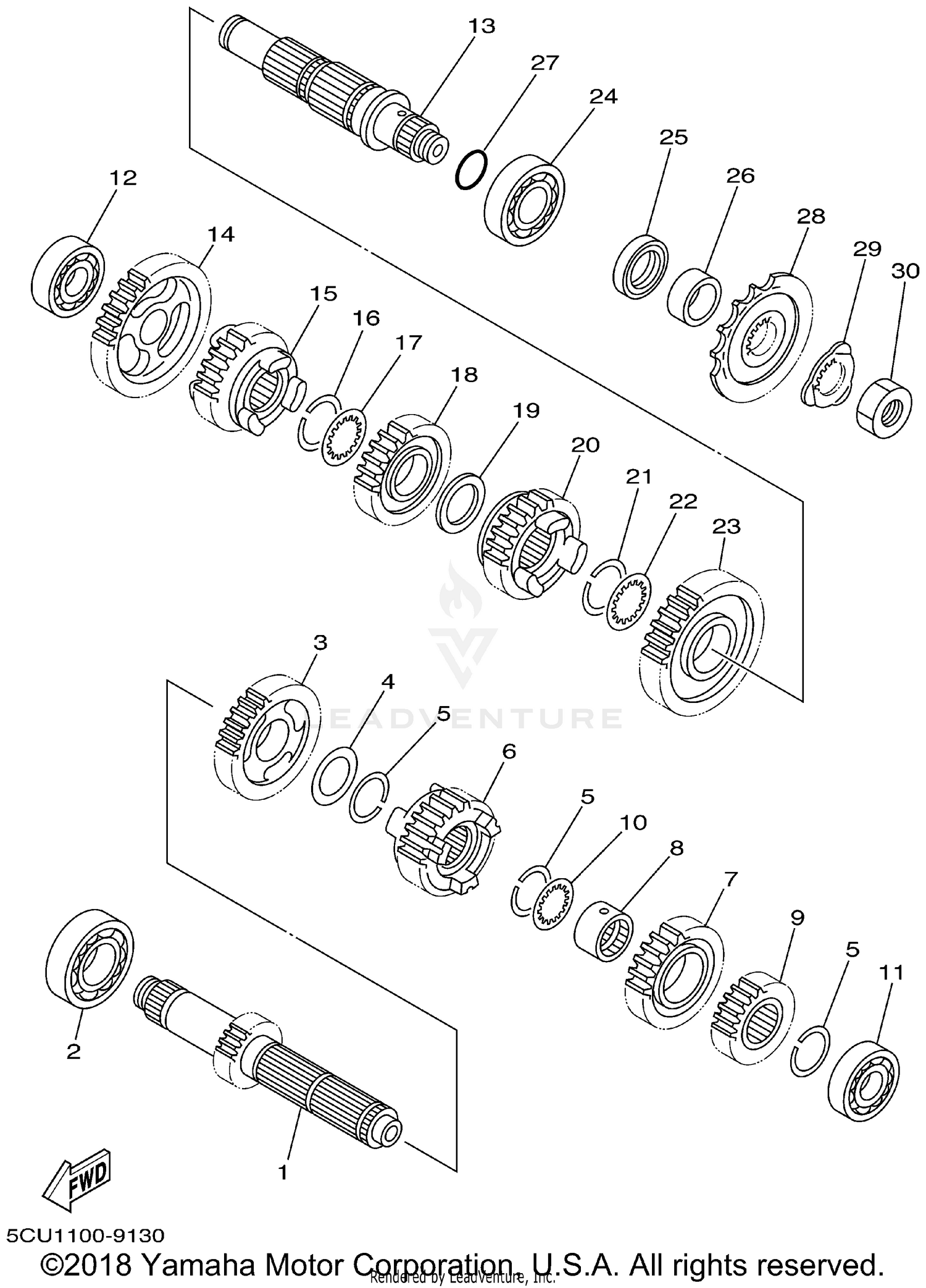

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (14T)
5BE-17411-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-20540-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION (21T)
5BE-17151-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (18T)
5CU-17131-00-00
Superseded by 5CU-17131-01-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 4TH PINION (22T)
5BE-17141-20-00
Superseded by 5BE-17141-30-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-2113G-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, 2ND PINION (16T)
5BE-17121-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#10
WASHER
90209-21332-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-00442-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-00426-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DRIVE AXLE ASSY
5BE-17421-00-00
Superseded by 5BE-17402-00-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, 1ST WHEEL (27T)
5BE-17211-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 5TH WHEEL (20T)
5BE-17251-10-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
WASHER
90209-21332-00
|
$6.49 | ||
|
Unavailable |
|||
|
#18
GEAR, 3RD WHEEL (23T)
5BE-17231-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
GEAR, 4TH WHEEL (24T)
5BE-17241-10-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
93440-28062-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
90209-26348-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 2ND WHEEL (25T)
5BE-17221-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-20574-00
Superseded by 93306-20562-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93102-32337-00
Superseded by 93102-32M07-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-2515B-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-22298-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPROCKET, DRIVE (14T)
9383E-14215-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPROCKET, DRIVE (13T)
9383E-13144-00
Superseded by 9383E-13216-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, LOCK
90215-21256-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
90179-20255-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
