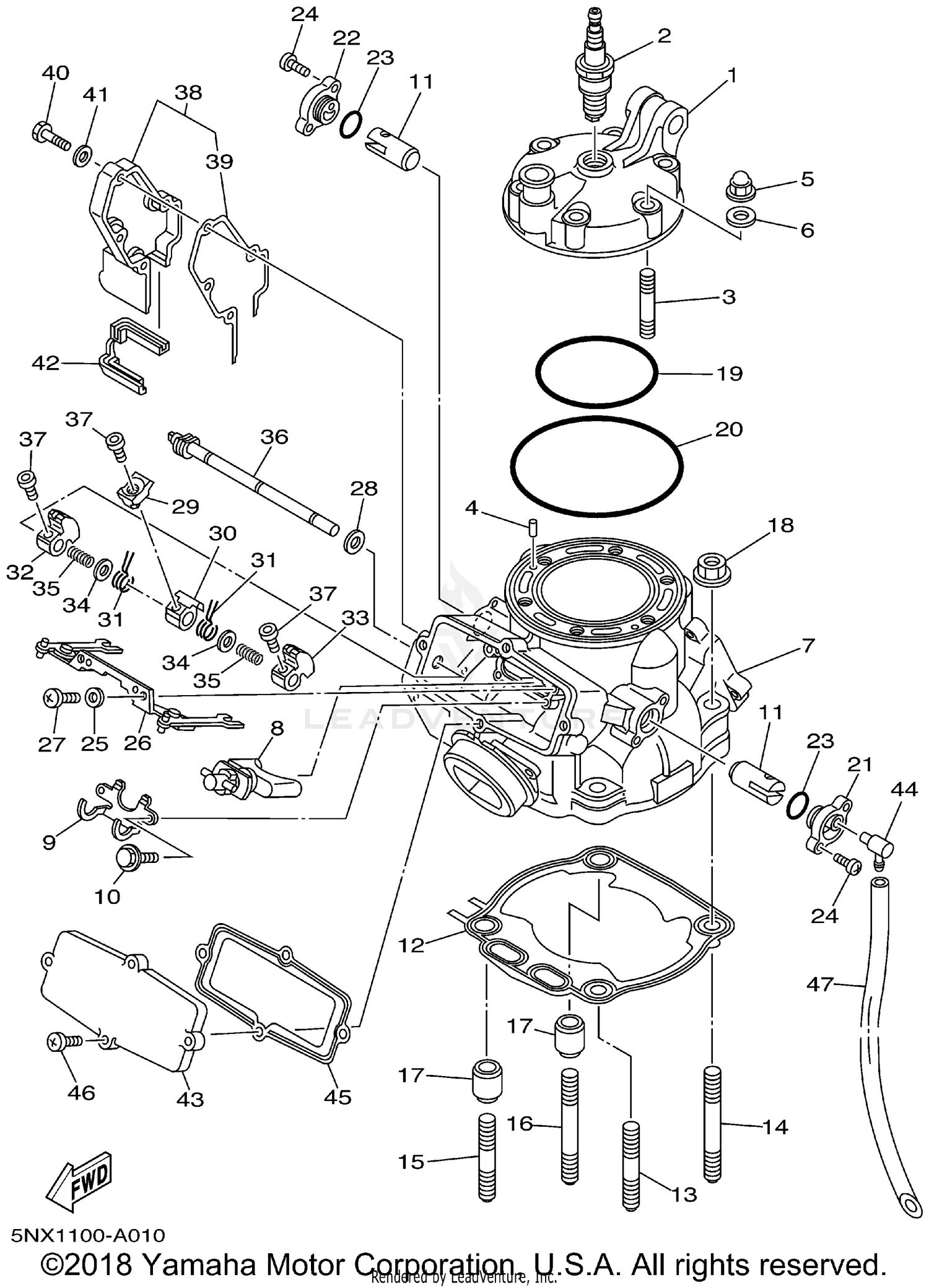

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
5MW-11111-01-00
Superseded by 5MW-11111-02-00
|
$322.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BR8EG NGK SPLUG 4P
NGK-BR8EG-00-00
Superseded by BR8-EG000-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#3
BOLT, STUD
90116-08394-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93604-08071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CROWN
90176-08026-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-080L8-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
CYLINDER 1
5MW-11311-00-00
Superseded by 5MW-11311-02-00
|
$711.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE ASSY
5NX-1131D-00-00
Superseded by 5NX-1131D-01-00
|
$246.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER 3
5CU-1131U-10-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90109-05001-00
Superseded by 90109-05002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE 2
5CU-1132A-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, CYLINDER
5CU-11351-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STUD
90116-10314-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD
95617-10660-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD
90116-10314-00
|
$4.20 | ||
|
Unavailable |
|||
|
#16
BOLT, STUD
95617-10660-00
|
$10.49 | ||
|
Unavailable |
|||
|
#17
PIN, DOWEL
99590-14016-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE
95707-10500-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-74316-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93211-02703-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER 1
5CU-1131E-00-00
Superseded by 5CU-1131E-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER 4
5CU-1131P-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-15639-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98507-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-057H5-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
LINK ASSY
5CU-11830-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, BIND
98907-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93104-08040-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER
5NX-11395-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
LEVER, LINK
4SS-11832-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, TORSION
90508-155B8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PULLEY 1
5MW-1132E-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PULLEY 2
5MW-1132F-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-081G0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING, COMPRESSION
90501-046L6-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#36
SHAFT 1
5CU-1131V-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
91317-04008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOUSING 1
5CU-11991-00-00
Superseded by 5CU-11991-01-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
GASKET
5CU-11993-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
97007-05020-00
Superseded by 97027-05020-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#42
SEAL, HOUSING
5CU-11995-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVER
5CU-1131M-00-00
Superseded by 5CU-1131M-11-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
CONNECTOR, SUCTION PIPE
353-13115-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
GASKET
5CU-11354-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW, BIND
98907-05016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIPE 5
90445-09777-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
