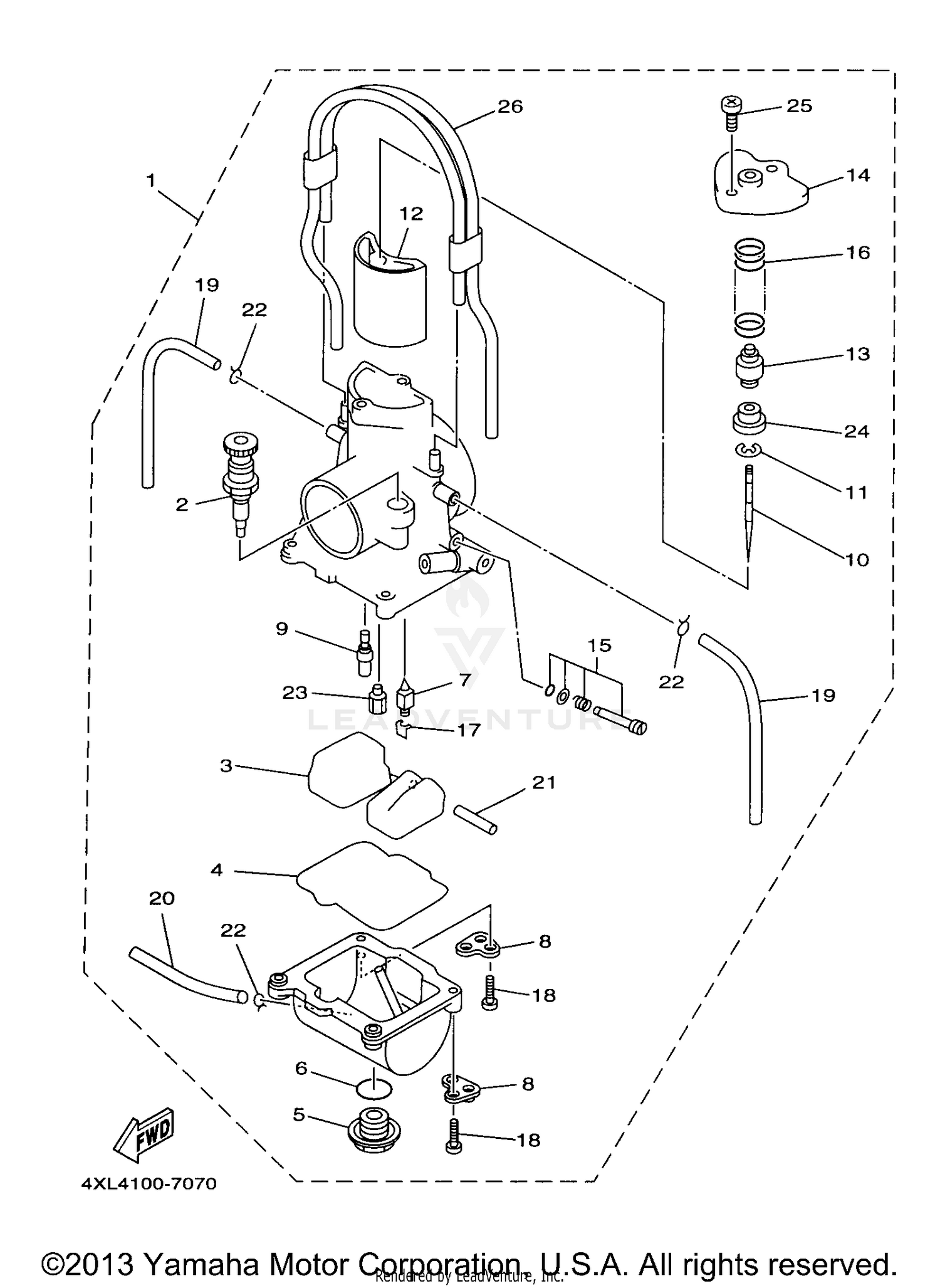

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
4XL-14101-00-00
|
$745.99 | ||
|
Unavailable |
|||
|
#2
PLUNGER, STARTER
4SR-14171-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLOAT
4SR-14985-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, FLOAT CHAMBER
4MX-14984-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, SCREW
4MX-14115-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
4MX-14561-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE, NEEDLE
4MX-14392-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE
4XL-14146-00-00
Superseded by 5BE-14146-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, SLOW (#48)
4MX-14948-06-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, SLOW (#40)
4SR-14948-03-00
Superseded by 4MX-14948-03-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, SLOW (#38)
4SR-14948-02-00
Superseded by 4MX-14948-02-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, SLOW (#55)
4MX-14948-09-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, SLOW (#52)
4MX-14948-08-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, SLOW (#50)
4MX-14948-07-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, SLOW (#45)
4MX-14948-05-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, SLOW (#42)
4MX-14948-04-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE (N3VG)
4XL-14916-VG-00
|
$14.49 | ||
|
Unavailable |
|||
|
#
NEEDLE (N4DG)
4XL-14916-DG-00
|
$12.99 | ||
|
Unavailable |
|||
|
#
NEEDLE (N4DF)
4XL-14916-DF-00
|
$12.99 | ||
|
Unavailable |
|||
|
#
NEEDLE (N4DH)
4XL-14916-DH-00
|
$12.99 | ||
|
Unavailable |
|||
|
#
NEEDLE (N3VF)
4XL-14916-VF-00
|
$14.49 | ||
|
Unavailable |
|||
|
#
NEEDLE (N3VH)
4XL-14916-VH-00
|
$11.49 | ||
|
Unavailable |
|||
|
#
NEEDLE (N4AF)
4XL-14916-AF-00
|
$12.99 | ||
|
Unavailable |
|||
|
#
NEEDLE (N4AG)
4XL-14916-AG-00
|
$12.99 | ||
|
Unavailable |
|||
|
#
NEEDLE (N4AH)
4XL-14916-AH-00
|
$11.49 | ||
|
Unavailable |
|||
|
#11
CLIP
4MX-14919-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE ASSEMBLY
4SR-14340-A6-00
|
$279.99 | ||
|
Unavailable |
|||
|
#13
HOLDER
4SR-14261-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#14
GASKET
4SR-14126-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#15
PILOT SCREW SET
4SR-14105-00-00
Superseded by 4SR-14105-01-00
|
$18.99 | ||
|
Unavailable |
|||
|
#16
SPRING, THROTTLE VALVE
4MX-14131-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#17
CLIP
663-14159-00-00
Superseded by 633-14159-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE
4XL-14197-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
PIPE
4XL-14196-00-00
|
$4.70 | ||
|
Unavailable |
|||
|
#21
PIN, FLOAT ARM
663-14548-00-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
3TJ-14137-40-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#175)
4MX-14943-42-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#180)
4MX-14943-43-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#165)
4MX-14943-40-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#168)
4MX-14943-91-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#170)
4MX-14943-41-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#172)
4MX-14943-92-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#178)
4MX-14943-93-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#182)
4MX-14943-94-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#185)
4MX-14943-44-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#188)
4MX-14943-95-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#190)
4MX-14943-45-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#162)
4SR-14943-90-00
Superseded by 4MX-14943-90-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING
4MX-14194-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW,PANHEAD
98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE
4XL-1410E-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
