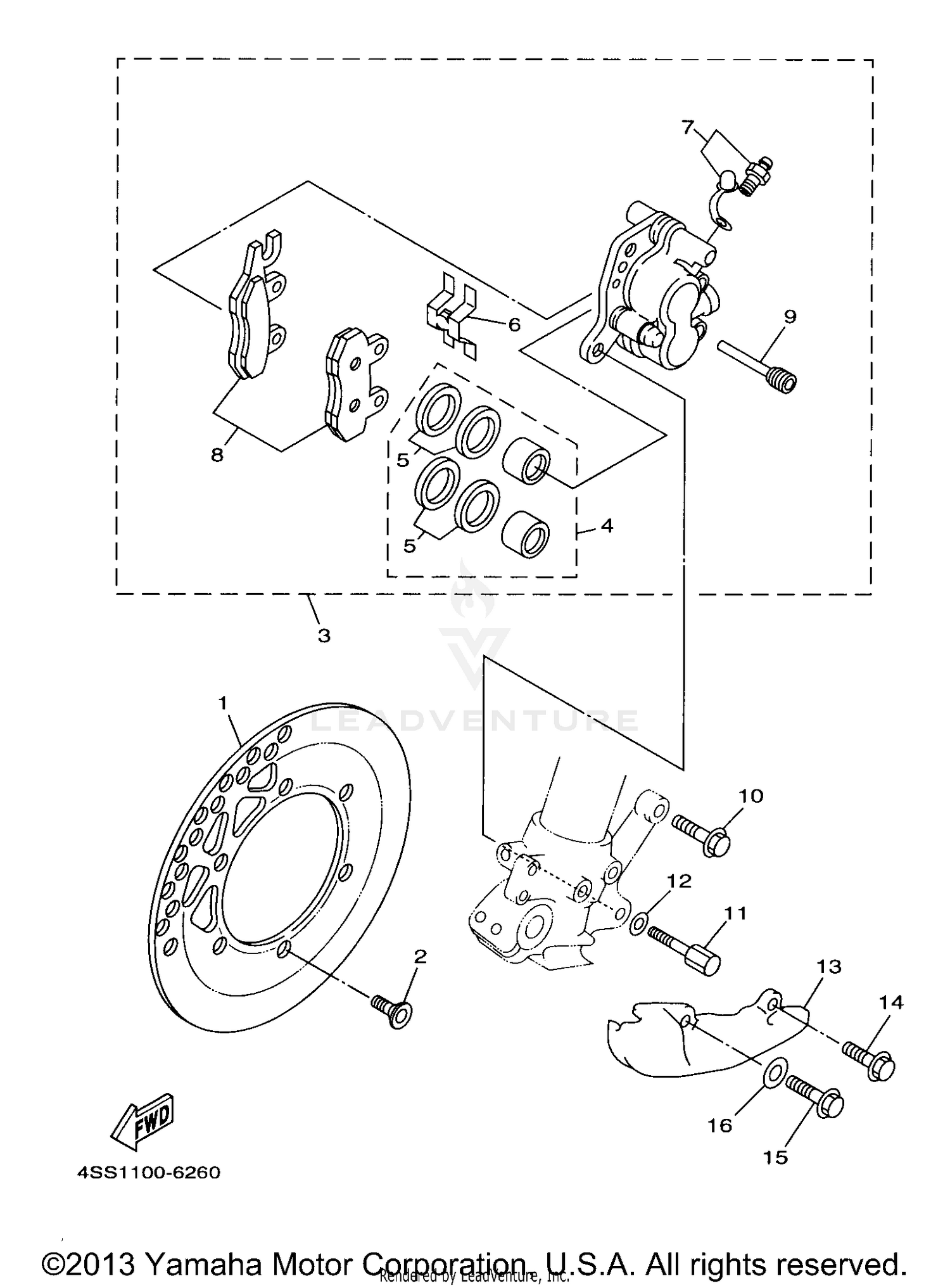

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
4XM-2582T-00-00
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, COUNTERSUNK
90149-06272-00
Superseded by 90151-06080-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSEMBLY (LEFT)
4SS-2580T-00-00
|
$288.99 | ||
|
Unavailable |
|||
|
#4
PISTON ASSY, CALIPER
4EW-W0057-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
3JD-W0047-00-00
Superseded by 3JD-25803-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUPPORT, PAD
3SP-25919-00-00
Superseded by 3SP-25919-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLEED SCREW KIT
36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT
4SS-W0045-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, PAD
3GD-25933-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-08659-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90109-080G6-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-090J9-00
|
$2.80 | ||
|
Unavailable |
|||
|
#13
COVER, HOSE
4SS-2314E-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-081A1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
92907-08200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
