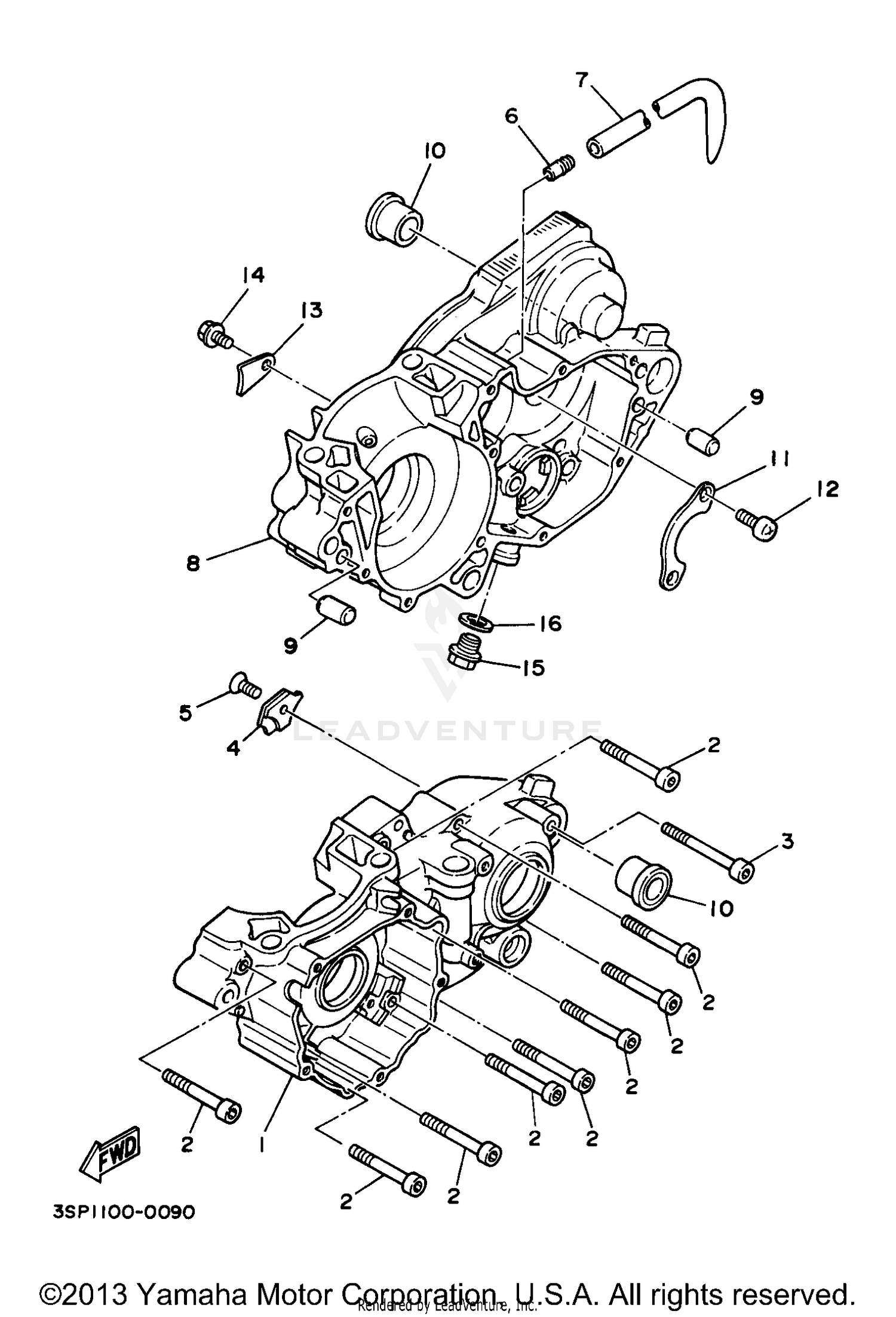

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
4XL-15111-00-00
|
$748.99 | ||
|
Unavailable |
|||
|
#2
BOLT
91317-06050-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91317-06070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, BEARING COVER
3SP-15381-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#5
SCREW, FLAT HEAD
90151-06037-00
Superseded by 98707-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONNECTOR, SUCTION PIPE
353-13115-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE
90445-086A8-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CRANKCASE 2
4XL-15121-00-00
|
$935.99 | ||
|
Unavailable |
|||
|
#9
PIN, DOWEL
93612-16254-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-160H4-00
|
$17.49 | ||
|
Unavailable |
|||
|
#11
PLATE, COVER
4L0-17471-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW,PAN
90157-06077-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER
4V4-15118-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, STRAIGHT SCREW
90340-12097-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
90430-12227-00
Superseded by 90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
