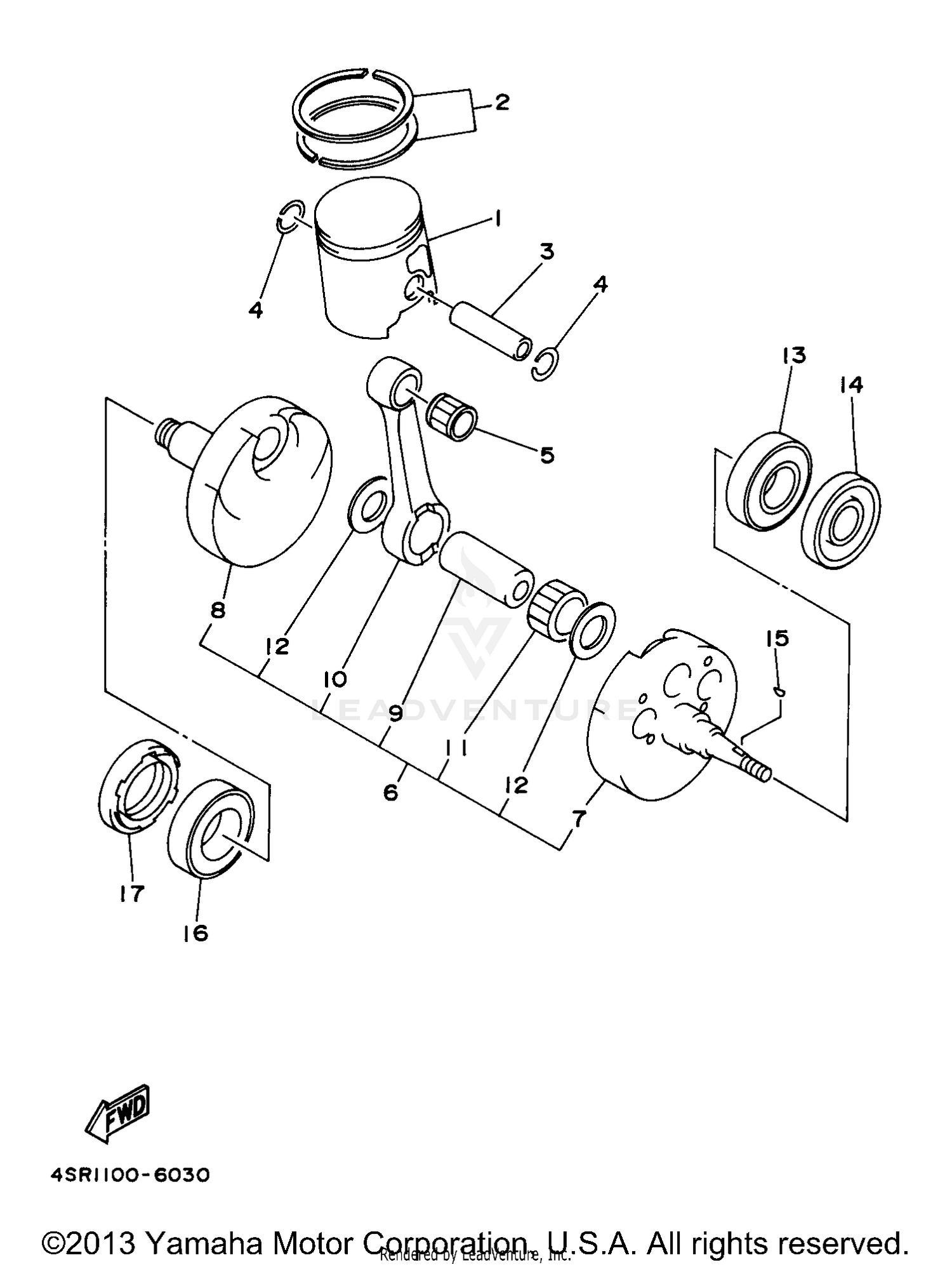

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON (STD)
4SR-11631-00-A0
|
$120.99 | ||
|
Unavailable |
|||
|
#
PISTON, (STD)
4SR-11631-00-B0
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (STD)
4SR-11631-00-C0
|
$120.99 | ||
|
Unavailable |
|||
|
#
PISTON (STD)
4SR-11631-00-D0
|
$120.99 | ||
|
Unavailable |
|||
|
#2
PISTON RING SET (STD)
4JX-11603-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PISTON
2VM-11633-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93450-19052-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, CYLINDRICAL
93310-418E9-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT ASSEMBLY
4SR-11400-00-00
Superseded by 5DJ-11400-00-00
|
$595.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CRANKSHAFT
4SR-11410-00-00
Superseded by 4SR-11410-10-00
|
$282.99 | ||
|
Unavailable |
|||
|
#8
CRANKSHAFT
4SR-11420-00-00
|
$359.99 | ||
|
Unavailable |
|||
|
#9
PIN, CRANK 1
4SR-11681-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, CONNECTING
5X5-11651-03-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, CYLINDRICAL
93310-425P2-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, (90209-25220)
90209-25085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-37804-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93102-22363-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93306-37804-00
|
$71.99 | ||
|
Unavailable |
|||
|
#17
OIL SEAL
93103-40091-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
