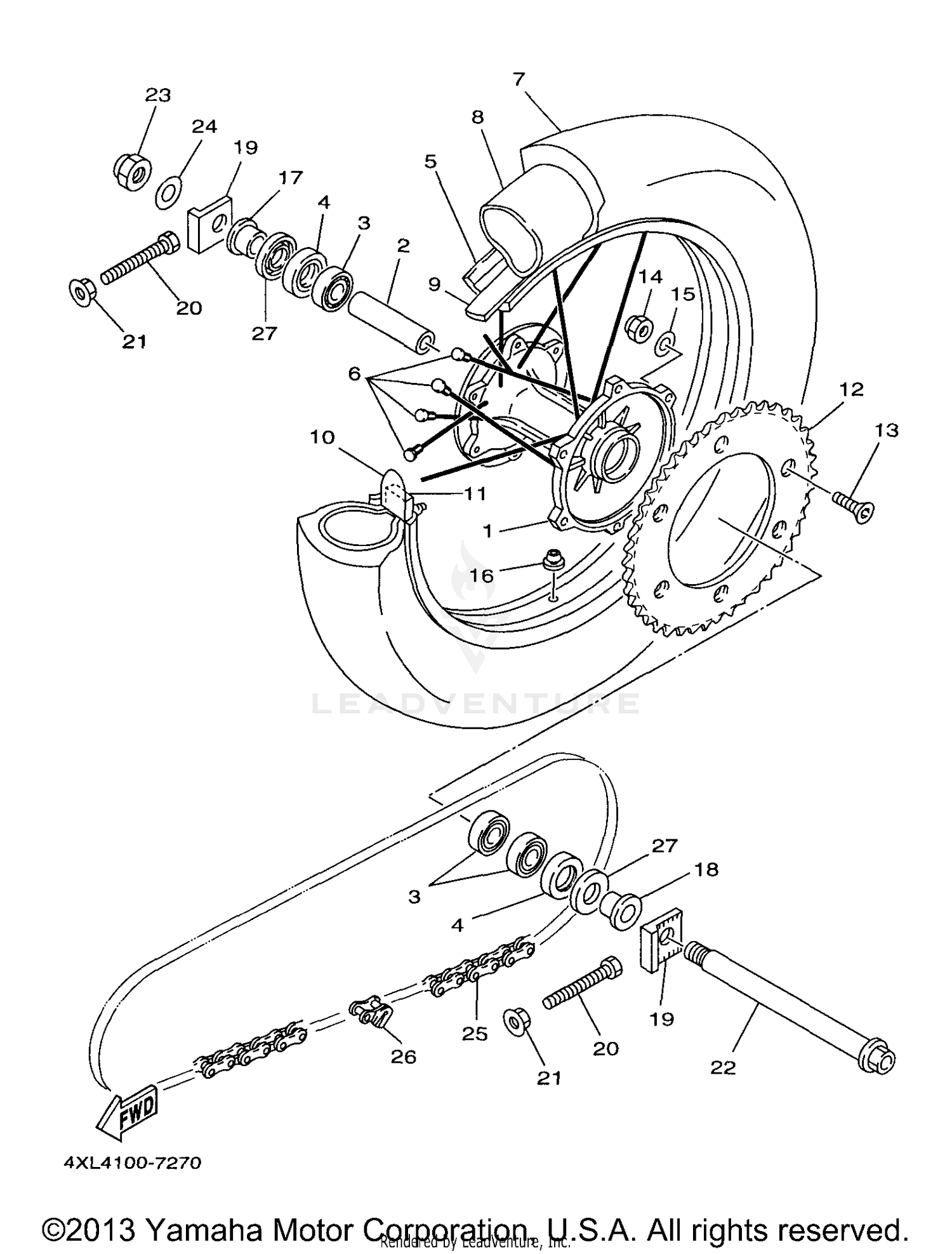

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
4EW-25311-00-00
|
$232.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-20278-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-00418-00
Superseded by 93306-00444-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-28023-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM (2.15-19)
94421-19538-00
|
$638.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOKE SET, REAR
4XM-25304-00-00
|
$160.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
110/90-19 BRIDGESTON
94111-197X4-00
Superseded by 94111-19011-00
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE (110/90-19 M/C TR4)
94211-19273-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#
TUBE (MCS 110/90-19 TR4)
94211-19274-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, RIM (2.5-19)
94311-19155-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BAND, RIM (2.15-19)
94321-19157-00
|
$3.76 | ||
|
Unavailable |
|||
|
#10
SPACER, BEAD
3JE-25394-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
4XM-25364-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPROCKET, DRIVEN (50T)
4SS-25450-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (47T)
4SS-25447-00-00
|
$101.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (48T)
4SS-25448-00-00
|
$49.42 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (49T)
4SS-25449-00-00
|
$189.49 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (51T)
4SS-25451-00-00
|
$52.46 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (52T)
4SS-25452-00-00
|
$77.84 | ||
|
Unavailable |
|||
|
#13
BOLT
90109-081G1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
95617-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-2000B-00
|
$16.49 | ||
|
Unavailable |
|||
|
#18
COLLAR
90387-2000C-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PULLER, CHAIN 1
3SP-25388-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90101-08777-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
AXLE, WHEEL
3JD-25381-01-00
|
$68.99 | ||
|
Unavailable |
|||
|
#23
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
92907-18600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CHAIN (DID520DMA2 SDH 114LL)
94561-55113-00
Superseded by 9Y581-92113-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
JOINT,CHAIN (DID 520DM-RJ)
94661-55001-00
Superseded by 94681-68001-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, HUB DUST
4V4-25367-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
