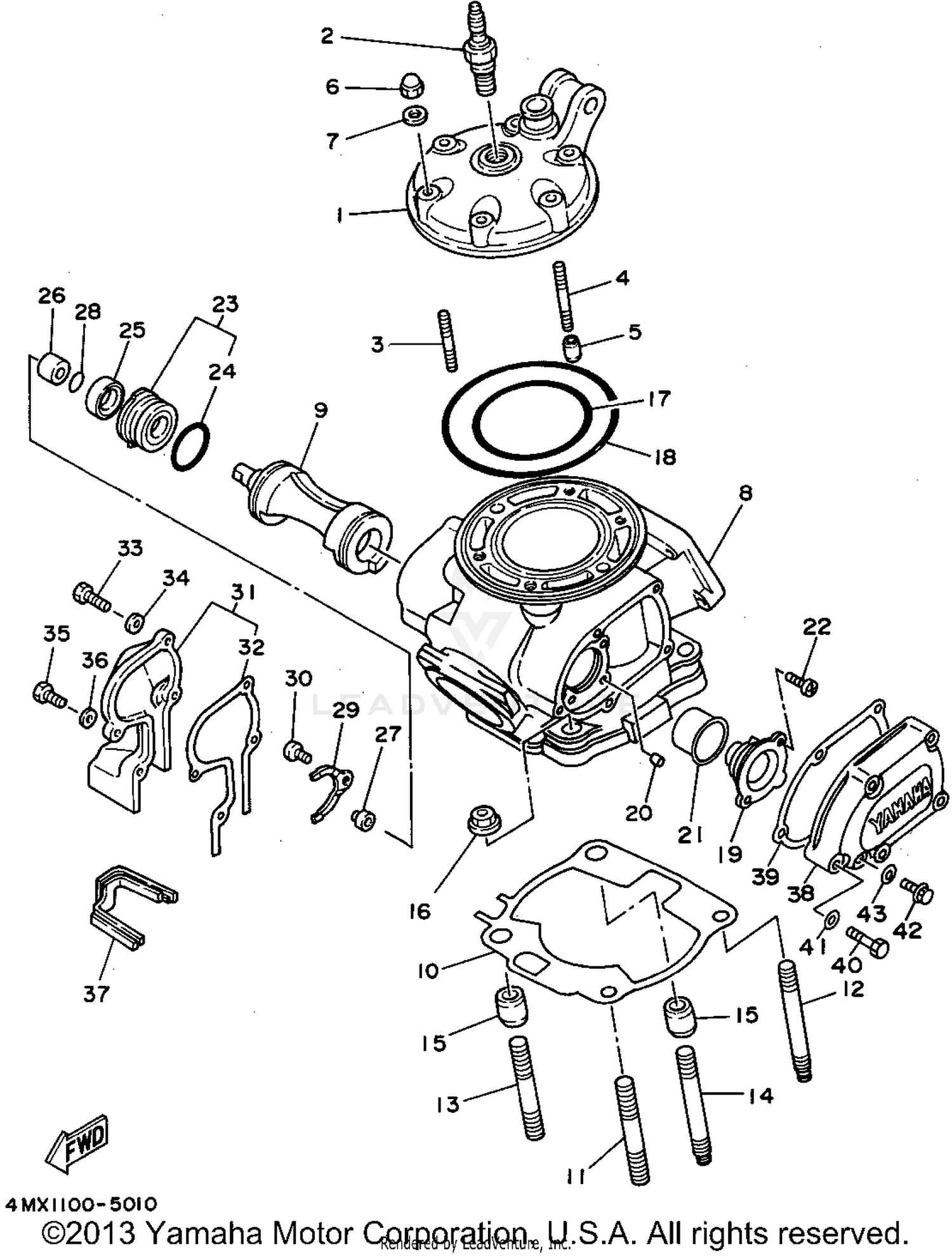

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
4EW-11111-00-00
|
$472.99 | ||
|
Unavailable |
|||
|
#2
B8EG NGK SPLUG 4PK
NGK-B8EG0-00-00
Superseded by B8E-G0000-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#3
BOLT, STUD
90116-08394-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD
90116-08392-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, CROWN
90176-08026-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER 1
4MX-11311-00-00
Superseded by 4MX-11311-09-00
|
$550.99 | ||
|
Unavailable |
|||
|
#9
VALVE 1
4MX-1131A-00-00
|
$257.99 | ||
|
Unavailable |
|||
|
#10
GASKET, CYLINDER
2VM-11351-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD
90116-10314-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
90116-10547-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
BOLT, STUD
90116-10314-00
|
$4.20 | ||
|
Unavailable |
|||
|
#14
BOLT, STUD
90116-10547-00
|
$8.49 | ||
|
Unavailable |
|||
|
#15
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE
95707-10500-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-77363-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
93211-11770-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER 1
4MX-Y113E-00-00
|
$92.99 | ||
|
Unavailable |
|||
|
#20
PIN, DOWEL
93604-08071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER 3
4MX-1131U-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98507-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER 2 ASSEMBLY
5X4-Y113F-10-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-270A8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93104-16074-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-102W0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOSS, LEVER
3JE-11937-00-00
Superseded by 3JE-11937-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING
93210-09192-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE, THRUST 1
1LX-11915-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
98507-05008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOUSING 2
3SP-11992-10-00
Superseded by 3SP-11992-11-00
|
$118.99 | ||
|
Unavailable |
|||
|
#32
GASKET
3SP-11993-10-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
97007-05020-00
Superseded by 97027-05020-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
97007-05016-00
Superseded by 97017-05016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#37
SEAL, HOUSING
2VM-11995-00-00
Superseded by 2VM-11995-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER
4MX-1131M-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#39
GASKET
4MX-11354-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
97017-05030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#42
BOLT, FLANGE
95027-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
