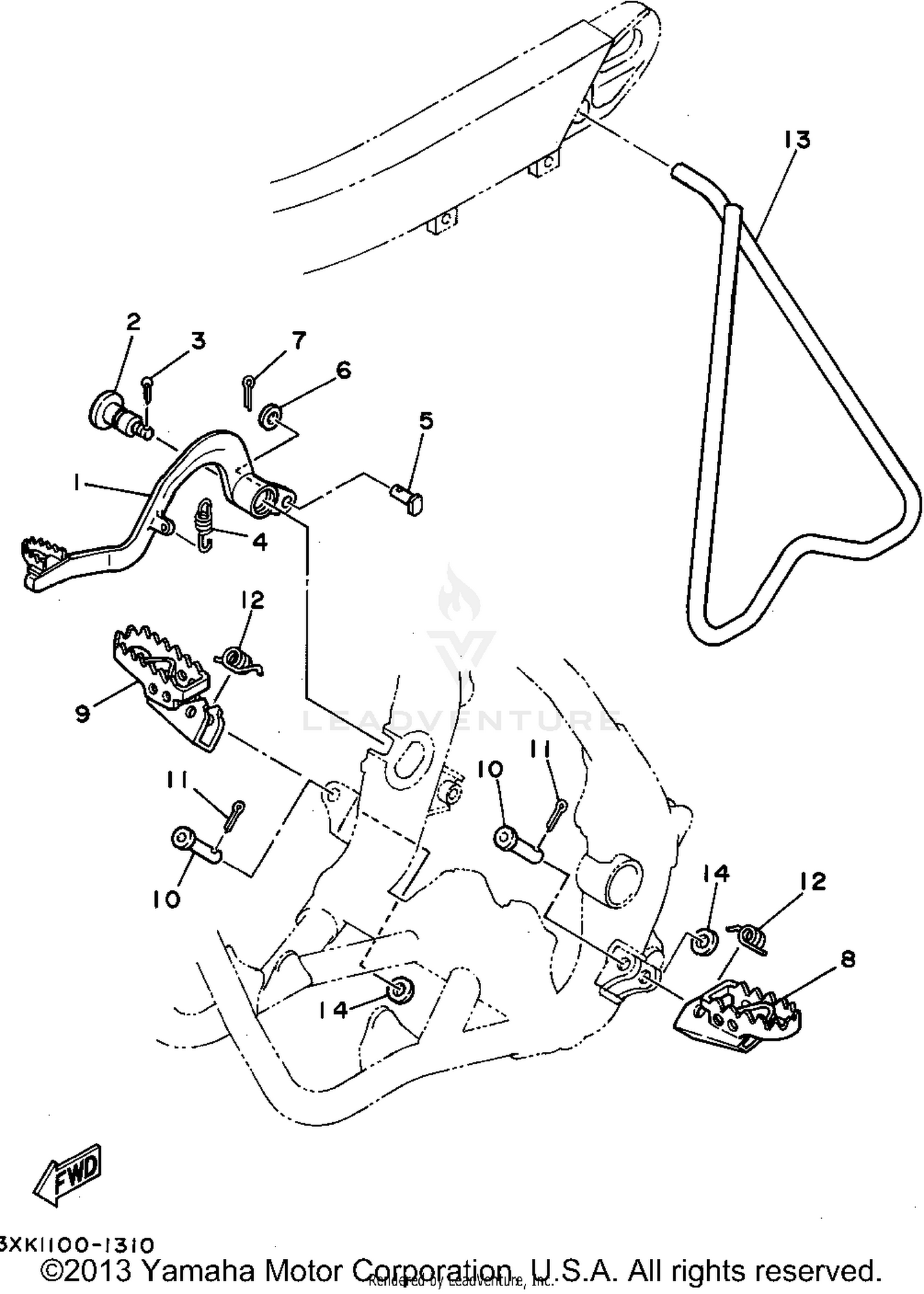

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
4JX-27200-00-00
|
$137.99 | ||
|
Unavailable |
|||
|
#2
BOLT
4MX-27217-00-00
Superseded by 4JX-27217-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#3
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-15480-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CLEVIS
90240-08120-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
FOOTREST 1
4DA-27411-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FOOTREST 2
4DA-27421-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#10
PIN, CLEVIS
90240-10117-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#12
SPRING, TORSION
90508-28777-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAND, SIDE
3SP-27311-00-00
Superseded by 4ES-27311-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-10119-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
