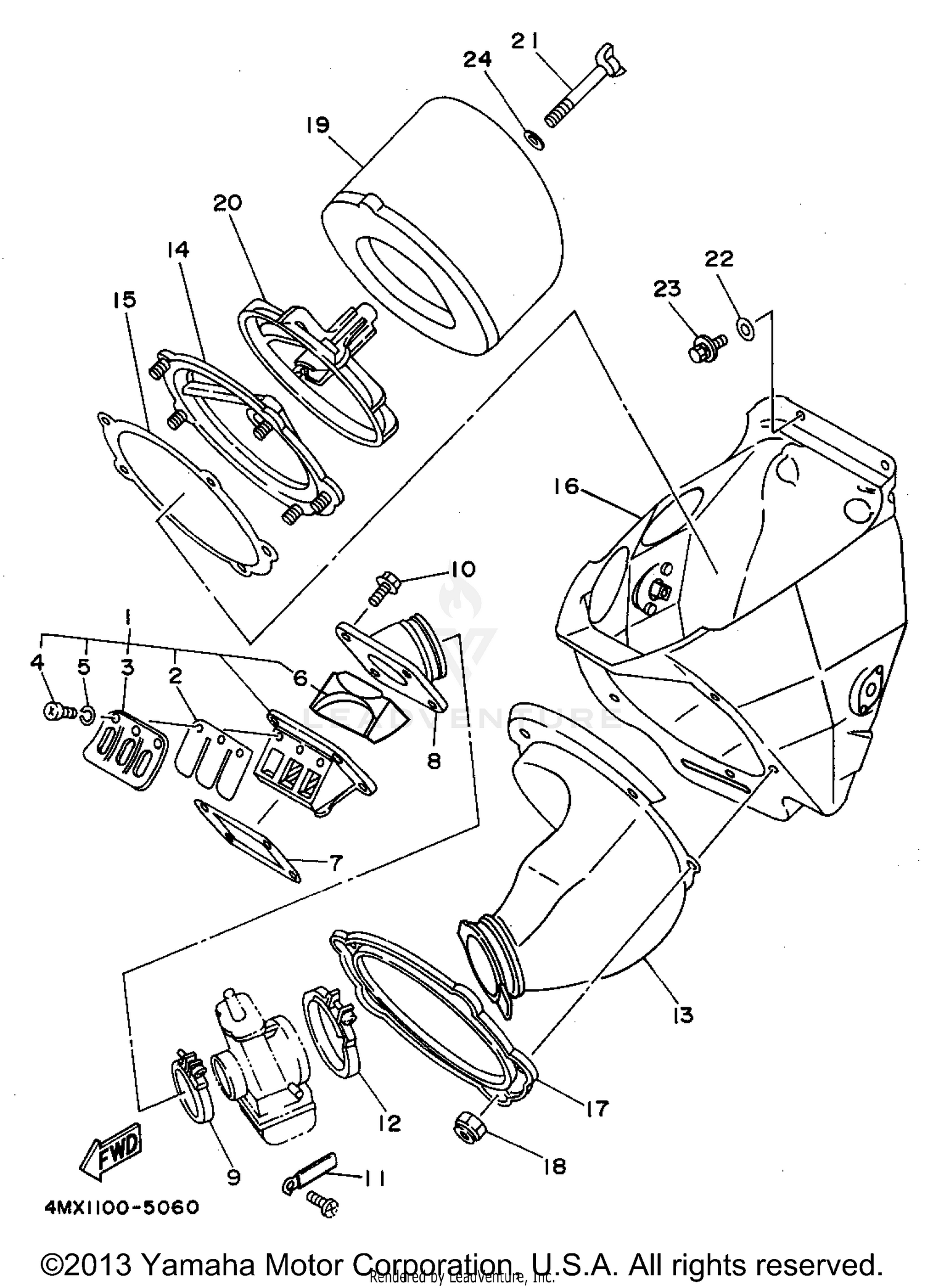

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSEMBLY
4MX-13610-00-00
|
$272.99 | ||
|
Unavailable |
|||
|
#2
REED, VALVE
3SP-13613-00-00
Superseded by 3SP-13613-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
4DA-13616-00-00
Superseded by 8DJ-13616-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, REED VALVE
4MX-13625-00-00
|
$80.99 | ||
|
Unavailable |
|||
|
#7
GASKET, VALVE SEAT
2K7-13621-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT, CARBURETOR
4MX-13565-00-00
|
$119.99 | ||
|
Unavailable |
|||
|
#9
HOSE CLAMP ASSY
90450-51070-00
Superseded by 90450-51001-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90465-06376-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE CLAMP ASSY
90450-70072-00
Superseded by 90450-70002-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT, AIR CLEANER 1
4MX-14453-00-00
|
$141.99 | ||
|
Unavailable |
|||
|
#14
HOLDER, GUIDE
3JD-14459-00-00
Superseded by 3JD-14459-01-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL
3JD-14462-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CASE, AIR CLEANER 1
4PE-14411-00-00
|
$248.99 | ||
|
Unavailable |
|||
|
#17
PLATE
3JD-14477-00-00
Superseded by 5MV-14477-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#18
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ELEMENT,AIR CLNR
4PE-14451-00-00
Superseded by 4PE-14451-02-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUIDE
3JD-14458-00-00
Superseded by 3JD-14458-01-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WING
90122-06035-00
Superseded by 90122-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
90105-06639-00
Superseded by 95024-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
90209-06096-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
