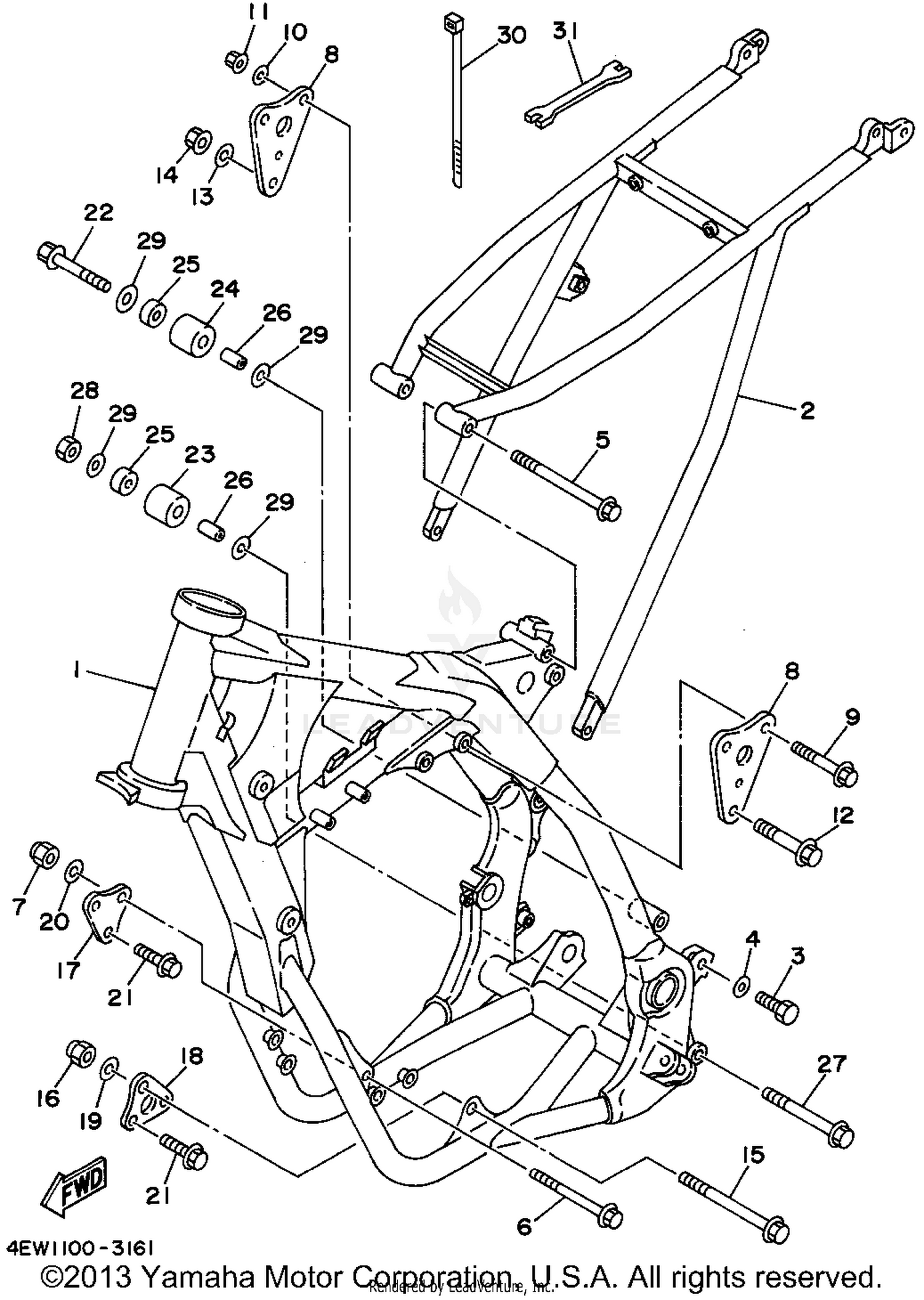

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
4MX-21101-00-P0
|
$666.99 | ||
|
Unavailable |
|||
|
#2
REAR FRAME COMP.
4JX-21190-01-P1
|
$635.99 | ||
|
Unavailable |
|||
|
#3
BOLT
90106-08051-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-080E2-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-08120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, WASHER BASED
90105-08592-00
|
$12.99 | ||
|
Unavailable |
|||
|
#7
NUT, U
95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, REAR UPPER 1
4EW-21425-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95817-08050-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95817-10055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92907-10200-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U
95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-10733-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U FLANGE
95617-10200-00
Superseded by 95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, FRONT LOWER 1
4EW-21417-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#18
BRACKET, REAR LOWER 1
4EW-21427-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95027-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
TENSIONER
3JD-22178-10-00
Superseded by 3JD-22178-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
TENSIONER
4EW-22178-00-00
Superseded by 4EW-22178-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95027-08065-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#30
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
WRENCH, HEXAGON
56A-28166-00-00
|
$9.99 | ||
|
Unavailable |
|||
